TRA6927M3PWN-001 | Antena: 698-2700 MHz 3G/4G-LTE - N hembra - No requiere plano de tierra

  • $61.99
    Precio unitario por

TRA6927M3PWN-001


¡Solo 31 restantes!
Volume Price Breaks
Quantity: Unit Price:
10 $60.41
25 $56.56
100 $52.40
250 $49.49
500 $46.89
Plazo de entrega para cantidades superiores a 31 :  Ships in 6-8 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

TRA6927M3PWN-001 | Antena: 698-2700 MHz 3G/4G-LTE - N hembra - No requiere plano de tierra

More InfoDocumentsSpecifications Reviews

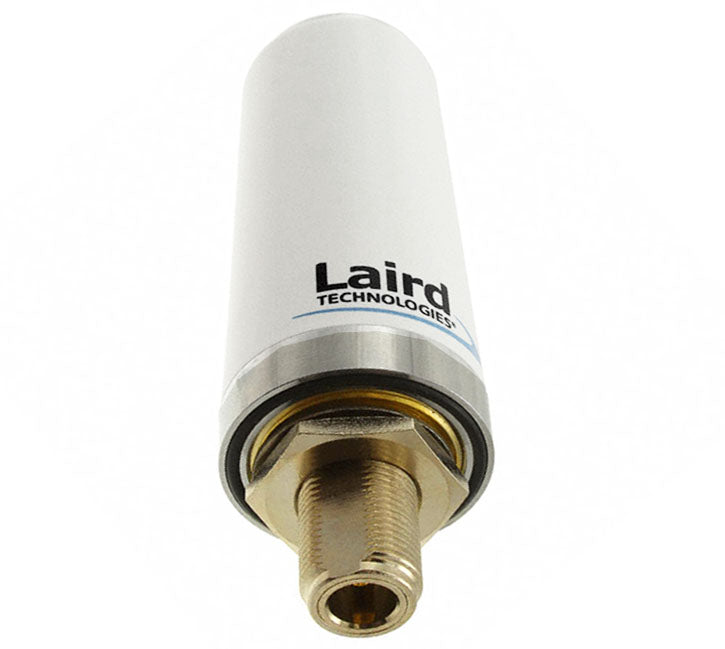

Esta unidad es una antena omnidireccional blanca estilo 'Phantom' con soporte N-Hembra permanente de 5/8 pulgadas que funciona en un rango de 698-2700 MHz. Esta antena ofrece una potencia potente con hasta 3 dBi de ganancia. Tenga en cuenta que este modelo NO REQUIERE montaje en un plano de tierra metálico para un mejor rendimiento. La serie Phantom ofrece una construcción ABS ultrarresistente que es prácticamente indestructible y tiene un historial comprobado de resistencia en el campo durante muchos años en cualquier condición. Los kits de cables y accesorios de montaje para esta antena se pueden comprar por separado.

Haga clic aquí para obtener más opciones de antena fantasma 3G/4G/LTE



More Information

The low profile, omni-directional, Phantom Antenna product line, was originally introduced by Antenex, and later acquired by Laird Technologies. The Phantom Antenna's patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required. The antenna's revolutionary design features field diversity with both vertical and horizontal polarization components. This gives the antenna diversity, frequency agility, low visibility, wide bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in most applications.

    • Whipless Design: The patented whipless design of the Laird / Antenex Phantom antenna allows your fleet to pass through car washes without removing the antenna. Using a low profile, shot-glass or salt shaker design means they don't look like traditional antennas. So, they attract less attention, are subject to less vandalism, and have lower wind resistance. The Phantom Antenna is also less susceptible to damage by low hanging trees, garages or other obstructions.

    • Field Diversity: Field diversity means that the antenna is simultaneously sensitive to both the electric and magnetic fields of the signal, like having two antennas. Field diversity makes the antenna resistant to the picket-fence fading and multipath nulls that are found in urban operation and undulating mobile environments.

    • Mounting: The Phantom Antenna series is available in several different versions within each frequency range. These versions include: Standard NMO mount or N-Female / permanent mount (metallic ground plane IS required) as well as NMO mount or N-Female / permanent mount with NGP option (where NO metallic ground plane is required) We strongly suggest using the N-Female P/ Permanent models for high risk applications such as digital signage, free-standing kiosks and automated meter reading DCU data collection units where antennas must resist vandalism

Documents


Specifications

SKU TRA6927M3PWN001
Manufacturer Part Number TRA6927M3PWN-001
Manufacturer Laird
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960 MHz
Gain 0 dBi
Working Frequency 2 1710-1990 MHz
Gain 2 1.7 dbi
Working Frequency 3 2100-2700 MHz
Gain 3 2.9 dBi
Antenna Style Phantom Low Profile
Polarity Vertical
Bands Multi
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohms
Max Input Power (W) 100 Watts
Height/Length (inches) 3.3 Inches
Height/Length (mm) 83.8 mm
Width (inches) 1.44
Width (mm) 36.6
Weight (lbs) 0.38
Weight (grams) 172.7
Operating Temp (celsius) (-40 C) to 85 C
Mount Style N-Female-permanent 5/8 Inch mount
Color White
Connector Type Connector - Bottom
Connector 1 N-Female
Includes Or-Ring, Star Washer, Hex Nut
OK for Outdoor Use Yes
Vehicular No
Ground Plane Required No
Product Condition New
