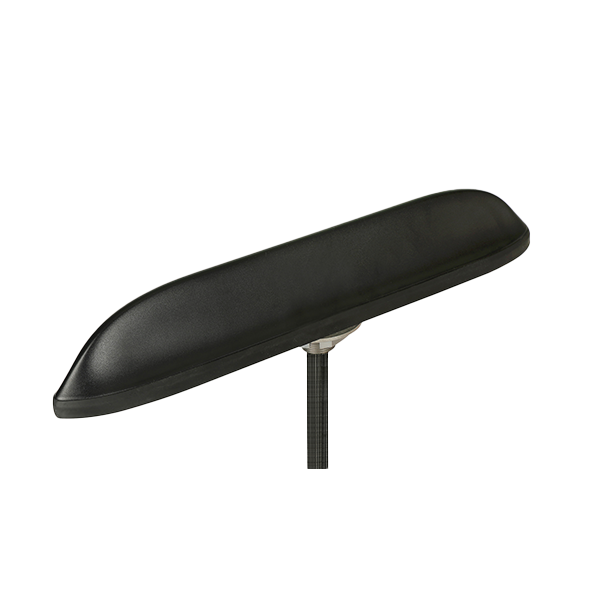

Shark-Fin 13 - in - 1 MultiBand Antenna, 4x 5G Cell, 8x Wifi-6E, GNSS L1+L2 Low Profile | SKF5GEX134811DM
SKF5GEX134811DM
Los gastos de envío se calculan en la pantalla de pagos.
Shark-Fin 13 - in - 1 MultiBand Antenna, 4x 5G Cell, 8x Wifi-6E, GNSS L1+L2 Low Profile | SKF5GEX134811DM
More InfoDocumentsSpecifications ReviewsShark-Fin 13 - in - 1 MultiBand Antenna, 4x 5G Cell, 8x Wifi-6E, GNSS L1+L2 Low Profile
More Information
Features & Applications:
Vehicle roof mount, directly on metal plane;
Ground plane independent;
4x4 MiMo Cellular 5G-FR1 (4G compatible);
8x8 MiMo WiFi, DSRC, V2X (WiFi-6E/7 compatible);
Active GNSS L1+L2 with 28dB low noise amplifier;
Heavy and light vehicles;
IoT, navigation, tracking;
Metering, EV charging stations;
Request separately special cable length and connectors
Documents
Specifications
| SKU | SKF5GEX134811DM |
|---|---|
| Manufacturer Part Number | SKF5GEX134811DM |
| Manufacturer | Pulse |
| Antenna Category | 5G/4G (600-7125 MHz) |
| Antenna Style | "Sharkfin" Multi-Element Antennas |
| Polarity | RHCP |
| Impedance | 50Ω |
| Height/Length (inches) | 15.8 |
| Width (inches) | 2.07 |
| Thickness/Diameter (inches) | 2.51 |
| Operating Temp (celsius) | -40 / +85° C |
| Color | Black |
| Product Condition | New |
