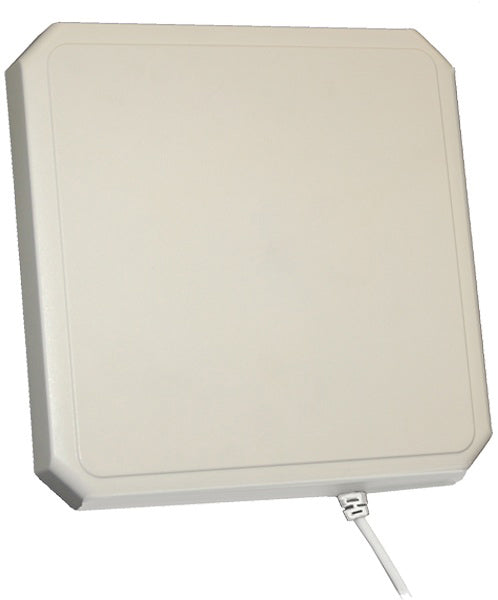

S8658PRJ96RTN: Antena RFID de 10x10 pulgadas - Polaridad circular derecha con coaxial de 96 pulgadas y RPTNC-M - ETSI

  • $211.02
    Precio unitario por

S8658PRJ96RTN


0 en existencia. Sujeto al tiempo de entrega de fábrica
Tiempo de espera:  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

S8658PRJ96RTN: Antena RFID de 10x10 pulgadas - Polaridad circular derecha con coaxial de 96 pulgadas y RPTNC-M - ETSI

More InfoSpecifications Reviews

Laird S8658PRJ96RTN es una antena de panel RFID con polarización circular derecha con ganancia de 8 dBic y conector macho coaxial y RPTNC de 96 pulgadas para aplicaciones ETSI (865-868 MHz).


More Information


Specifications

SKU S8658PRJ96RTN
Manufacturer Laird
Working Frequency 865-868 MHz
Antenna Category RFID (865-928 MHz)
Bands Single
IP Rating IP54
Polarity Circular
Gain 8.5
Horizontal/Azimuth Beamwidth 70 degree
Vertical/Elevation Beamwidth 70 degree
Connector Type Cable - Bottom Entry
Connector 1 RP TNC-Male
Cable Length (inches) 96
Cable Length (mm) 2438
Height/Length (inches) 10.2
Height/Length (mm) 259.08
Operating Temp (celsius) (-30) to 70
Thickness/Diameter (inches) 1.32
Thickness/Diameter (mm) 34
Width (inches) 10.2
Width (mm) 259
Weight (lbs) 1.75
Weight (grams) 795
Material Polycarbonate
Mount Style (2) 1/4-20 threaded studs at 4.875 inch / 124 mm spacing.
Includes 2 each: flat washers, lock washers & hex nuts
Product Condition New
