FG8960: Antena omnidireccional de fibra de vidrio resistente para exteriores de 896 a 940 MHz con conector N-hembra fijo
FG8960
FG8960: Antena omnidireccional de fibra de vidrio resistente para exteriores de 896 a 940 MHz con conector N-hembra fijo

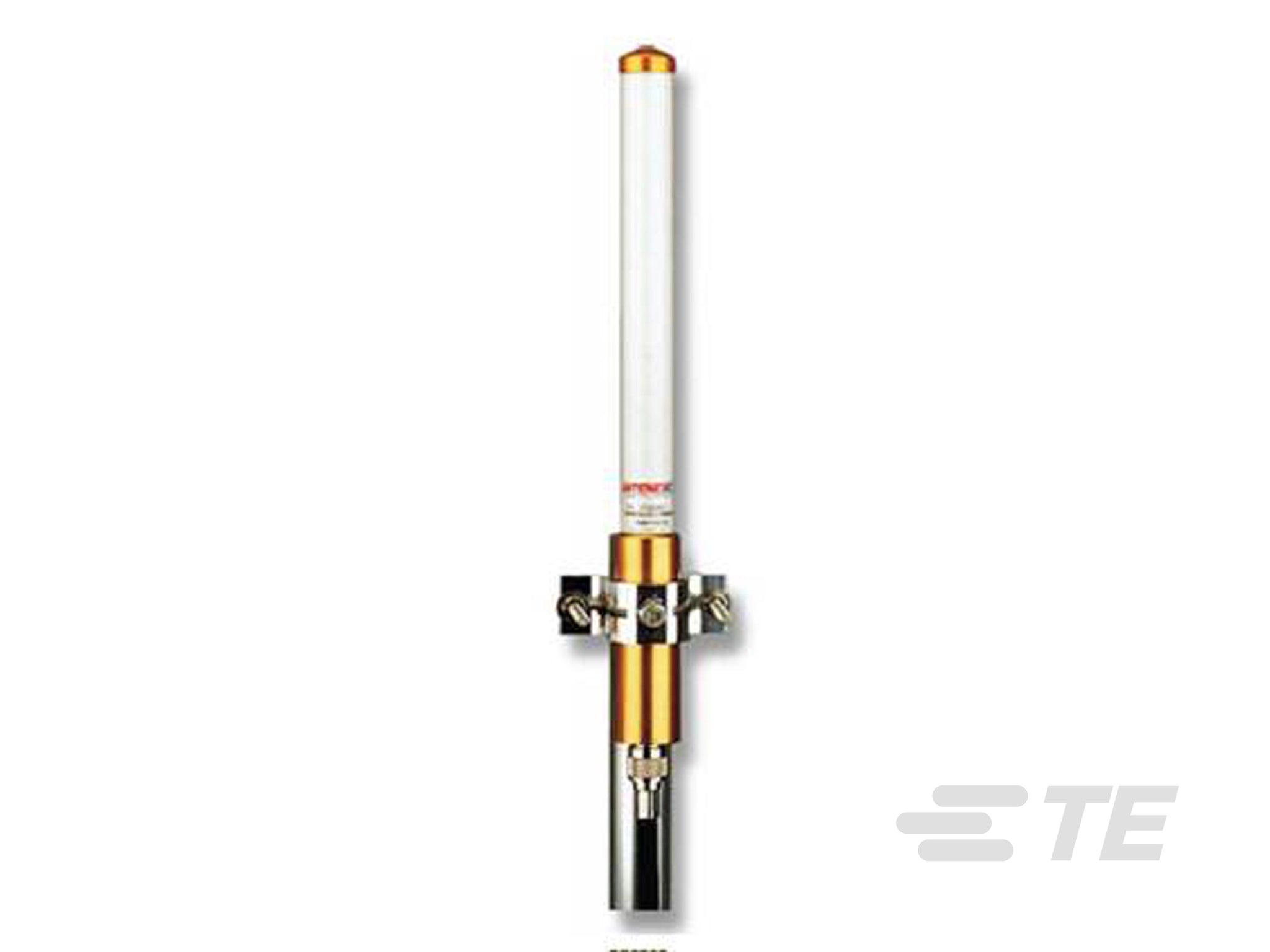

More InfoDocumentsSpecifications ReviewsLa antena de estación base omnidireccional de fibra de vidrio FG8960 es una solución conveniente y muy duradera para aplicaciones de estación base o microestación base. Presenta un diseño de calidad superior a través de una funda de montaje de aluminio anodizado dorado de pared pesada y un radomo de fibra de vidrio blanco altamente pulido con tratamiento UV.
*Nota: Esta antena NO se envía con accesorios de montaje. Recomendamos el soporte de montaje ROSA-HDM1 *
More Information
FG8960 fiberglass omnidirectional base station antenna is a convenient and highly durable solution for base station or micro base station applications. It features superior quality design through heavy wall gold anodized aluminum mounting sleeve and a highly polished white UV treated fiberglass radome.
*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
FEATURES
- High performance
- 100% tested on a network analyzer before shipping
- Special UV protection coating resist sun damage
- Easy installation with optional FM2SP Mount Kit
- N Female industry standard connector
MARKETS
- Omnidirectional outdoor antenna applications used in commercial, public safety, and government applications around the globe
- Typical applications include land based and marine radio and voice and data transmission
Documents
También recomendamos
Specifications
| SKU | FG8960 |
|---|---|
| Manufacturer Part Number | FG8960 |
| Manufacturer | TE Connectivity |
| Antenna Category | 900 MHz |
| Working Frequency | 896-940 MHz |
| Gain | 0 dBd |
| Antenna Style | Omnidirectional Base Station Antenna |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 |
| Max Input Power (W) | 100 |
| VSWR: < X: 1 | <2.0:1 |
| Horizontal/Azimuth Beamwidth | 360 |
| Vertical/Elevation Beamwidth | 110 |
| Height/Length (inches) | 13.375 |
| Height/Length (mm) | 342.8 |
| Thickness/Diameter (inches) | 1.31 |
| Thickness/Diameter (mm) | 33 |
| Weight (lbs) | 0.65 |
| Weight (grams) | 290 |
| Material | Fiberglass |
| Operating Temp (celsius) | -40 TO +85 |
| Mount Style | Screw On |
| Color | White |
| Connector Type | Connector - Bottom |
| Connector 1 | N-Female |
| OK for Outdoor Use | Yes |
| Ground Plane Required | No |
| Product Condition | New |
