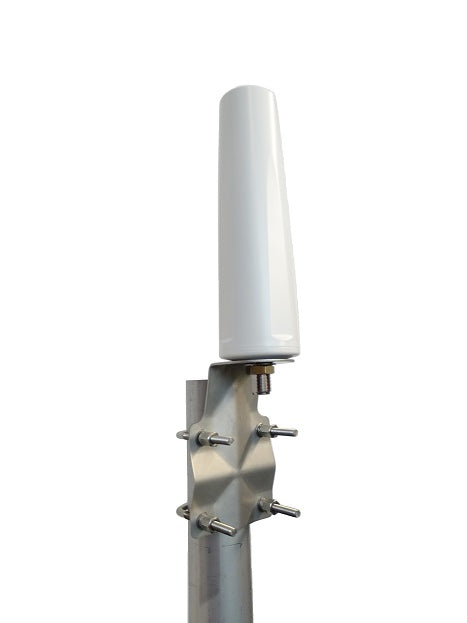

Radome Omni Base Station Antenna for 5G/LTE, 617-7125 MHz. Direct N-Female Connector | ROSA-600/71-3-SNF-DC

  • $138.80
    Precio unitario por

ROSA-600/71-3-SNF-DC


¡Solo 129 restantes!
Volume Price Breaks
Quantity: Unit Price:
50 $89.00
Plazo de entrega para cantidades superiores a 129 :  Ships in 14-16 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

Radome Omni Base Station Antenna for 5G/LTE, 617-7125 MHz. Direct N-Female Connector | ROSA-600/71-3-SNF-DC

More InfoDocumentsSpecifications Reviews

The ROSA-600/71 Antenna is a high-performance, multi-band solution optimized for the latest 5G and Wi-Fi 6E applications. Covering a broad frequency range from 617 MHz to 7125 MHz, this antenna is designed to deliver seamless connectivity for both 4G/5G FR1 and Wi-Fi 6E technologies, supporting critical wireless operations in today’s fast-evolving landscape. With dual-band Wi-Fi capability and an omnidirectional radiation pattern, the ROSA-600/71 ensures consistent signal coverage across multiple bands, making it ideal for robust, high-demand network environments where reliable data transmission is key.



More Information

The ROSA-600/71 Antenna is a high-performance, multi-band solution optimized for the latest 5G and Wi-Fi 6E applications. Covering a broad frequency range from 617 MHz to 7125 MHz, this antenna is designed to deliver seamless connectivity for both 4G/5G FR1 and Wi-Fi 6E technologies, supporting critical wireless operations in today’s fast-evolving landscape. With dual-band Wi-Fi capability and an omnidirectional radiation pattern, the ROSA-600/71 ensures consistent signal coverage across multiple bands, making it ideal for robust, high-demand network environments where reliable data transmission is key.
The ROSA-600/71 showcases versatility and impressive band support, including Band 71 (617-698 MHz) for extended rural LTE coverage and CBRS Bands 42 and 48 (3400-3700 MHz) to bolster private LTE networks. These capabilities enhance network flexibility, allowing operators to leverage spectrum assets across a wide frequency range to meet the unique demands of 5G and Wi-Fi 6E connectivity. With an average peak gain of 2.5 dBi in the lower range (617-960 MHz), 4.0 dBi in the midrange (1450-4200 MHz), and 4.3 dBi in the upper range (4400-7125 MHz), this antenna offers optimal performance tailored to a variety of bandwidth needs.



• Wideband Coverage; 617-960/1450-7125 MHz

• Covers WiFi-6E, 4G/5G-FR1

• Includes Band 71 & CBRS Bands 42, 48

• DC Grounded

• Includes Mounting Bracket

• 72-Hour Salt Spray Rating


Documents


Specifications

SKU ROSA600713SNFDC
Manufacturer Part Number ROSA-600/71-3-SNF-DC
Manufacturer RFMAX
Antenna Category 5G/4G (600-7125 MHz)
Working Frequency 617-960 MHz
Gain 2.2 dBi
Working Frequency 2 1450-2700 MHz
Gain 2 3.0 dBi
Working Frequency 3 3300-4200 MHz
Gain 3 5.0 dBi
Working Frequency 4 4400-5000 MHz
Gain 4 4.1 dBi
Working Frequency 5 5150-7125 MHz
Gain 5 3.3 dBi
Antenna Style Omnidirectional Base Station Antenna
Polarity Vertical
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 10W
VSWR: < X: 1 2:1
Height/Length (inches) 8.64
Height/Length (mm) 219.4
Thickness/Diameter (inches) 2.45
Thickness/Diameter (mm) 62.2
Weight (lbs) 1.37
Weight (grams) 620
Material PET + PC, UV RATED
Operating Temp (celsius) -40 to + 85
Color Grey
Includes Mounting Hardware Included
IP Rating IP67
OK for Outdoor Use Outdoor
Ground Plane Required No
Product Condition New
