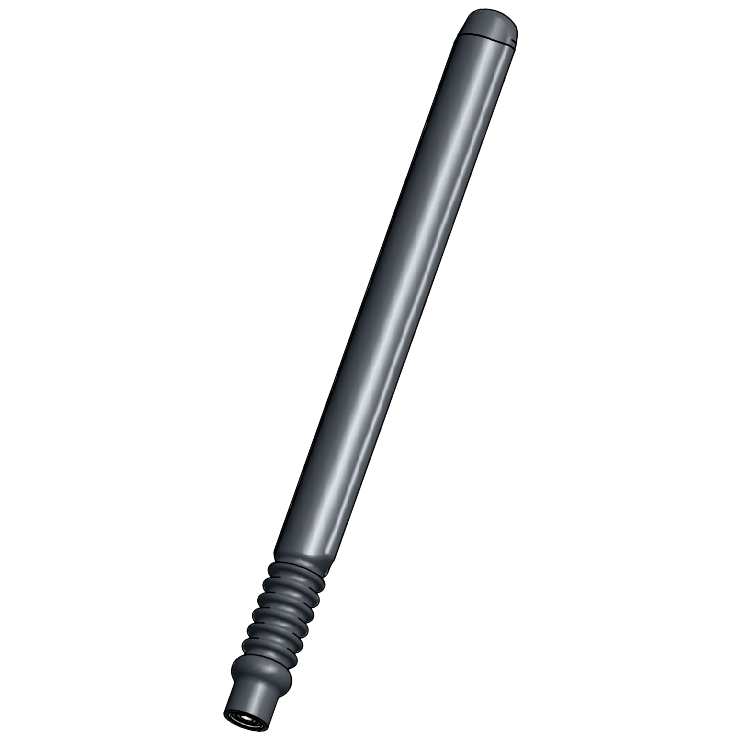

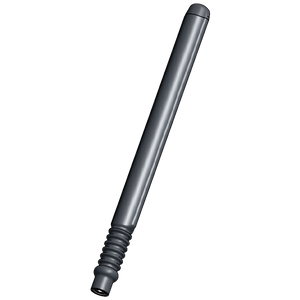

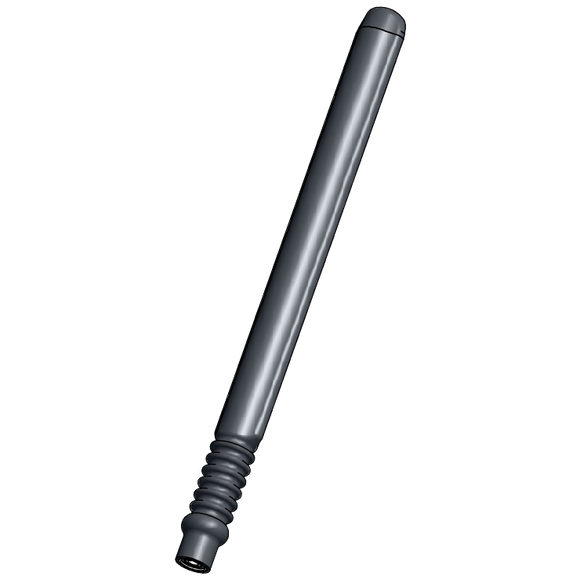

PCTP915: Antena flexible PCTEL / Maxrad negra de alta resistencia - Punto de alimentación elevado - ISM 902-928 MHz - TNC macho - IP67 - 2 dBi
PCTP915
Los gastos de envío se calculan en la pantalla de pagos.
PCTP915: Antena flexible PCTEL / Maxrad negra de alta resistencia - Punto de alimentación elevado - ISM 902-928 MHz - TNC macho - IP67 - 2 dBi
More InfoDocumentsSpecifications ReviewsLas antenas móviles PCTP de alta resistencia presentan un diseño resistente y flexible que proporciona rendimiento y confiabilidad duraderos en condiciones ambientales muy extremas.
Tenga en cuenta: Este artículo tiene una cantidad mínima de pedido de 25 unidades.
More Information
The PCTP heavy-duty mobile antennas feature a rugged, flexible design that provides long-lasting performance and reliability under very extreme environmental conditions.
Features:
- Ground plane independent for reliable performance and added installation flexibility
- Heavy-duty, flexible radome design absorbs shock impact for applications requiring a ruggedized antenna solution
- Wideband coverage: ready to use without added field tuning
- UV-stable polyurethane housing withstands severe installation applications. This housing makes the antenna ideal for vehicular installations exposed to extreme temperatures and high vibration conditions, including construction trucks, agriculture tractors and mining vehicles
Documents
Specifications
| SKU | PCTP915 |
|---|---|
| Manufacturer Part Number | PCTP915 |
| Manufacturer | PCTEL |
| Antenna Category | 900 MHz |
| Working Frequency | 902-928 MHz |
| Gain | 2 dBi |
| Antenna Style | Blade/Stubby Antennas |
| Polarity | Vertical |
| Bands | Single |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohm |
| Max Input Power (W) | 5 |
| VSWR: < X: 1 | < 2.0:1 |
| Height/Length (inches) | 13 |
| Height/Length (mm) | 330 |
| Thickness/Diameter (inches) | .62 |
| Thickness/Diameter (mm) | 15.74 |
| Material | UV-Stable Polyurethane |
| Operating Temp (celsius) | -40°C to +85°C |
| Mount Style | Permanent |
| Color | Black |
| Connector 1 | TNC-Male |
| IP Rating | IP67 |
| Ground Plane Required | No |
| Product Condition | New |
