EXR902TN: 902-960 MHz, 1/2 onda para ISM/antena troncal Tuf Duck con conector TNC-macho

  • $38.31
    Precio unitario por

EXR902TN


0 en existencia. Sujeto al tiempo de entrega de fábrica
Volume Price Breaks
Quantity: Unit Price:
10 $35.55
25 $32.58
100 $30.54
250 $28.73
500 $26.77
Tiempo de espera:  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

EXR902TN: 902-960 MHz, 1/2 onda para ISM/antena troncal Tuf Duck con conector TNC-macho

More InfoSpecifications Reviews

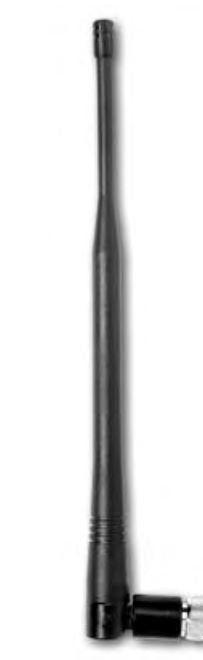

La EXR902TN es una antena de radio bidireccional portátil de 1/2 onda para ISM/Trunking, que funciona a una frecuencia de 902-960 MHz con un conector tipo TNC-macho.



More Information

Since their introduction by Centurion Wireless (now Laird Technologies) in 1980, the "Tuf Duck" line of portable radio antennas have become the industry standard for two-way radio applications. These antennas have earned a reputation for rugged reliability in hazardous situations and harsh environments. As the industry leader in two-way radio antenna products for OEM and aftermarket applications, Laird Technologies produces these antennas in a diverse number of styles including: quarter wave, 1/4 wave whip, 1/4 wave helical, 1/4 wave stubby, 1/2 wave, Right angle helical, and Right angle whip.

The various Tuf Duck models include Low-Mid Band, UHF, VHF, Trunking and Cellular antennas and are approved for use with radios from Bendix King, EF Johnson, Itron, MaCom, Kenwood, Maxon, Vertex/Standard, Motorola, Midland and Tait.  Join the ranks of leading police departments and wireless communications companies that rely on Tuf Duck antenna technology and engineering innovation.

Features for this EXR902TN antenna:

  • Style: EXR.  ½ Wave for ISM/Trunking
  • Injection Molded with Adjustable 90 Degree Elbow.
  • Frequency Range: 902-960 MHz
  • Gain: High gain
  • Average Length: 8.85 – 9.5 inches
  • Connector Type: TNC-Male
  • Polarization: Vertical
  • Impedance: 50 ohms
  • VSWR: 1.5:1 at resonance
  • RF Power Handling: 50 watts
  • Temperature Range: -40 to +85C
  • Drop Test: 1 Meter

Specifications

SKU EXR902TN
Manufacturer Part Number EXR902TN
Manufacturer Laird
Antenna Category 900 MHz
Working Frequency 902-960 MHz
Gain High gain
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 ohm
Max Input Power (W) 50 Watts
VSWR: < X: 1 1.5 : 1
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 9.25" - 9.5"
Operating Temp (celsius) (-40) to 85 C
Connector Type Connector - Bottom
Connector 1 TNC-Male
Product Condition New
