QW162: Antena de látigo cromada de cuarto de onda de 162-174 MHz con base NMO. Se requiere plano de tierra metálico.

  • $15.65
    Precio unitario por

QW162


¡Solo 1 restantes!
Volume Price Breaks
Quantity: Unit Price:
10 $14.26
25 $12.83
100 $11.67
250 $10.69
500 $9.71
Plazo de entrega para cantidades superiores a 1 :  Ships in 4-6 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

QW162: Antena de látigo cromada de cuarto de onda de 162-174 MHz con base NMO. Se requiere plano de tierra metálico.

More InfoSpecifications Reviews

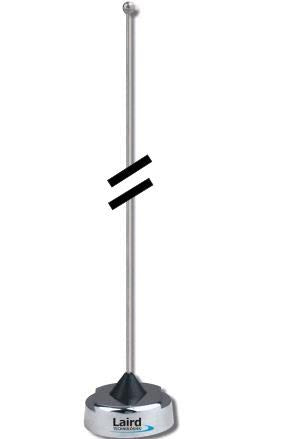

La Laird/Antenex QW162 es una antena de látigo omnidireccional de cuarto de onda de acero inoxidable de 17 pulgadas de largo con acabado cromado para operación en el rango de frecuencia de 162-174 MHz, con base NMO. Se requiere un plano de tierra de metal.

*Esta antena requiere un soporte NMO. Haga clic aquí para encontrar todos los soportes NMO con orificio pasante o los soportes NMO magnéticos que tenemos.



More Information

The Laird / Antenex QW162 is an 17 inch long, chrome, ¼ wave whip antenna with NMO base.  This antenna requires a metal ground plane, is omnidirectional, offers Unity/2.15 dBi gain and accepts up to 200 watts max power and operates in the 162-174 MHz MHz range.

Laird Technology’s family of Quarter Wave Whip antennas all built with stainless steel materials and feature gold plated contacts for corrosion resistance and best power transfer.

FEATURES:

  • Frequency Range: 162-174 MHz MHz
  • Gain: Unity: Unity/2.15 dBi
  • Length: 17 inches
  • FIVE YEAR FACTORY WARRANTY

Specifications

SKU QW162
Manufacturer Part Number QW162
Manufacturer Laird
Antenna Category VHF (132-220 MHz)
Working Frequency 162-174 MHz
Gain Unity/2.15 dBi
Antenna Style 1/4 Wave Whip
Polarity Vertical
Bands Single
SISO or MIMO SISO
Directional or Omni Omnidirectional
Impedance 50 Ohm
VSWR: < X: 1 2.0:1
Height/Length (inches) 17
Height/Length (mm) 431.8
Material Stainless Steel
Color Chrome
Connector 1 NMO
OK for Outdoor Use Yes
Vehicular Yes
Ground Plane Required Yes
Product Condition New
