FG4103: Antena de estación base omnidireccional de fibra de vidrio para exteriores de 410-420 MHz, 3 dBd/ 5,15 dBi con conector N-hembra
FG4103
FG4103: Antena de estación base omnidireccional de fibra de vidrio para exteriores de 410-420 MHz, 3 dBd/ 5,15 dBi con conector N-hembra
More InfoSpecifications ReviewsLa FG4103 de Laird (anteriormente Antenex) es una antena de estación base omnidireccional de fibra de vidrio de alta resistencia que funciona a 410-420 MHz y proporciona 3 dBd/5,15 dBi de ganancia lineal.

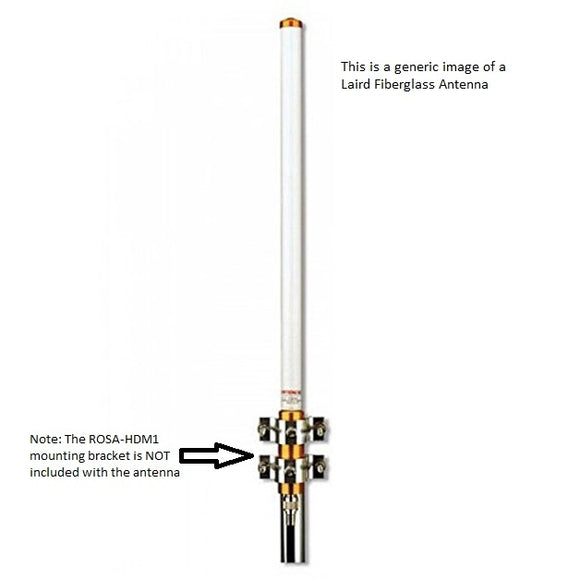

*Nota: Esta antena NO se envía con accesorios de montaje. Recomendamos el soporte de montaje ROSA-HDM1 *
More Information
Laird – Antenex Outdoor Rated Omnidirectional Fiberglass Base Station Antennas Are Designed To Perform For Many Years Under Extreme Conditions. Every Antenna Is Covered By A Five-Year Factory Warranty.

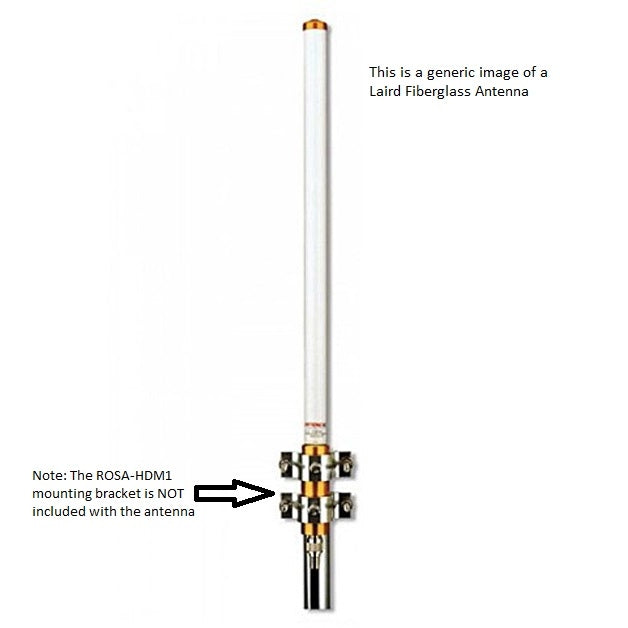

*Note: This antenna DOES NOT ship with mounting hardware. We recommend the ROSA-HDM1 mounting bracket*
The FG4103 from Laird (formerly Antenex) is a heavy duty, omni-directional fiberglass base station antenna. It has a collinear design enclosed in high density fiberglass, which is covered with a protective ultraviolet inhibiting coating.
The radiating elements are tuned for the 410-420 MHz and made from high efficiency copper and are carefully phased to provide maximum gain in the horizontal plane. The mounting sleeves are tuned to eliminate RF currents from the transmission line, resulting in a cold sleeve allowing great freedom in mounting. This high quality and well-focused beam provides the highest gain and best efficiency.
FEATURES AND BENEFITS:
- Frequency: 410-420 MHz
- Gain: 3 dBd/ 5.15 dBi
- Length: 44 inches
- 100% tested on a network analyzer before shipping to assure the best performance.
- Special UV Treated - stands up to the sun over years of service.
- Durable gold anodized sleeve and cap with N Female connector.
- Five Year Factory Warranty.
Specifications
SKU | FG4103 |
---|---|
Manufacturer Part Number | FG4103 |
Manufacturer | Laird |
Antenna Category | UHF (380-600 MHz) |
Working Frequency | 410-420 MHz |
Gain | 3 dBd/ 5.15 dBi |
Center Tuned Frequency 1 | 415 MHz |
Antenna Style | Omnidirectional Base Station Antenna |
Polarity | Vertical |
Bands | Single |
SISO or MIMO | SISO |
Directional or Omni | Omnidirectional |
Impedance | 50 |
VSWR: < X: 1 | 2:01 |
Horizontal/Azimuth Beamwidth | 360 |
Height/Length (inches) | 44 |
Height/Length (mm) | 1117.6 |
Thickness/Diameter (inches) | 1.31 |
Thickness/Diameter (mm) | 33.27 |
Weight (lbs) | 4 |
Weight (grams) | 1814.37 |
Material | Fiberglass |
Operating Temp (celsius) | (-40) to 85 C |
Color | White |
Connector 1 | N-Female |
OK for Outdoor Use | Yes |
Ground Plane Required | No |
Product Condition | New |
