GPSNMO07: Antena GPS Pulse-Larsen blanca de perfil bajo con soporte NMO, cable de 17 pies, conector SMB instalado

  • $97.91
    Precio unitario por


¡Solo 18 restantes!
Volume Price Breaks
Quantity: Unit Price:
10 $90.72
25 $86.87
100 $82.80
250 $81.69
500 $81.16
Plazo de entrega para cantidades superiores a 18 :  Ships in 14-16 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

GPSNMO07: Antena GPS Pulse-Larsen blanca de perfil bajo con soporte NMO, cable de 17 pies, conector SMB instalado

More InfoSpecifications Reviews

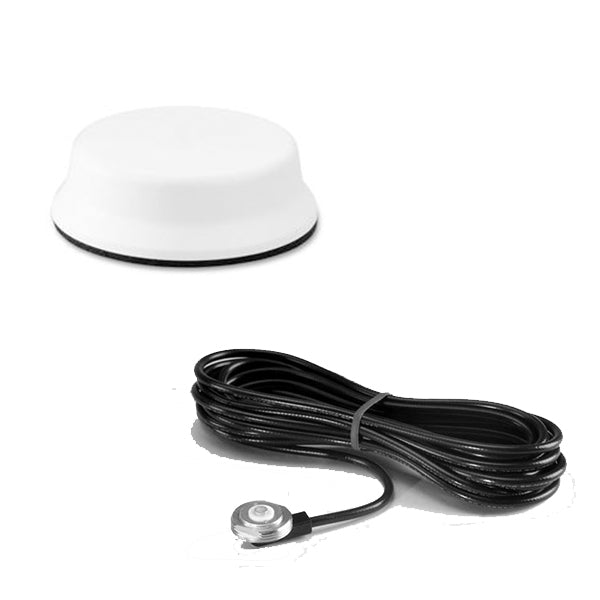

La Pulse-Larsen GPSNMO07 es una antena GPS omnidireccional de perfil bajo blanca que funciona a 1575,4 MHz con base de montaje NMO. Tamaño: 1,3 pulgadas de alto x 2,9 pulgadas de diámetro. Este kit INCLUYE un kit de cable NMO estándar de 3/4" con 1 cable RG-58/U de 7' y conector SMB.

 ***** Montaje NMO incluido *****

More Information

The Pulse-Larsen GPSNMO07 is a White Low Profile Omnidirectional GPS Antenna operating at 1575.4 MHz with NMO Mount Base. 17' RG-58/U cable and SMB Connector included. This antenna features a hemispherical RF pattern, has right-hand circular polarization, is rated for 5 Volts DC input voltage, and offers 28 dB +/- 2 dB of active LNA Gain.

Founded in 1965 as Larsen Electronics, the company was acquired in 1999 by Radiall, then later by Pulse Electronics. Most of the company's antennas, mounts and cable kits are still made in the USA in the original factory in Vancouver, Washington. With over 2,000 standard antennas deliverable on short-notice, Pulse-Larsen is the recognized industry leader for LMR/Land Mobile Radio and Public Safety / M2M communications. All Pulse-Larsen antennas, cable kits and NMO mounts are covered by the original Larsen No Nonsense 2-Year Warranty.

These antennas have standard NMO / New Motorola mounting. NMO cable kits, such as the NMOKHFUD series can be purchased separately on this website.


Manufacturer Part Number GPSNMO07
Manufacturer Pulse
Antenna Category GPS/GNSS (1545.72, 1561-1602 MHz)
Working Frequency 1575.4 MHz
Gain 5 dBic
Antenna Style Low Profile
Polarity Circular
Bands Single
Directional or Omni Omnidirectional
VSWR: < X: 1 2:01
Height/Length (inches) 1.3
Height/Length (mm) 33.02
Thickness/Diameter (inches) 2.9
Thickness/Diameter (mm) 73.66
Weight (lbs) 0.3
Weight (grams) 136.36
Mount Style NMO
Color White
Cable Type RG-58/U
Cable Length (inches) 204
Connector 1 SMB-Male
Vehicular Yes
Product Condition New
