Covert Strip Antenna for ISM 900 MHz Remote Monitoring|R5WA-900-4-BCJ-B

  • $17.52
    Precio unitario por

R5WA-900-4-BCJ-B


¡Solo 2 restantes!
Plazo de entrega para cantidades superiores a 2 :  Ships in 6-8 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

Covert Strip Antenna for ISM 900 MHz Remote Monitoring|R5WA-900-4-BCJ-B

More InfoDocumentsSpecifications Reviews

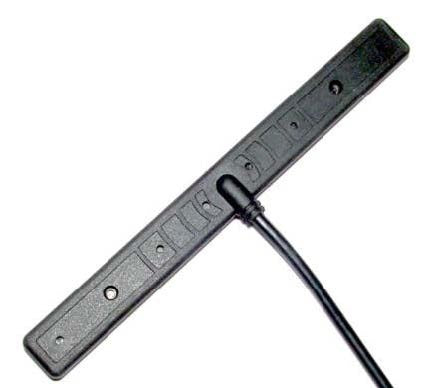

The RFMAX R5WA-900-4-BCJ-B is a compact, adhesive-mount 800/900 MHz antenna engineered for high-performance wireless applications across the 824–960 MHz band. Featuring 3 dBi peak gain, a rugged low-profile TPR housing, and a 4-foot RG-174 cable with Signal Blue FAKRA Jack (Code C). This IP67-rated antenna is ideal for 800 MHz trunking, 900 MHz ISM, remote monitoring, telematics, and covert installations. Designed for reliable omni-directional coverage and easy 3M tape mounting, it delivers robust connectivity for industrial, IoT, fleet, and RF monitoring systems.



More Information


Documents


Specifications

SKU R5WA9004BCJB
Manufacturer Part Number R5WA-900-4-BCJ-B
Manufacturer RFMAX
Antenna Category 900 MHz
Working Frequency 824-960 MHz
Antenna Style Covert Antenna
SISO or MIMO SISO
Directional or Omni Omni Directional
Impedance 50 ohms
Max Input Power (W) 50W
VSWR: < X: 1 <1.5:1 Max
Height/Length (inches) 4.09
Height/Length (mm) 104
Width (inches) 0.43
Width (mm) 11
Thickness/Diameter (inches) 0.2
Thickness/Diameter (mm) 5 (with mounting tape)
Material TPR Overmold
Operating Temp (celsius) -20°C to +60°C
Color Black
Number of Cables 1
Connector 1 Signal Blue Fakra Jack (Key Code C)
IP Rating IP67
OK for Outdoor Use Indoor/Outdoor
Product Condition New
