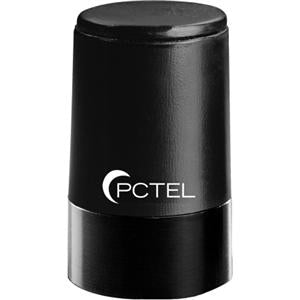

BMLPVDB700/2500: Antena PCTEL/Maxrad de doble banda de perfil bajo, 698-960/1710-2500 MHz, 4 dBi, negro, conector NMO - Requiere plano de tierra
BMLPVDB700/2500
Los gastos de envío se calculan en la pantalla de pagos.
BMLPVDB700/2500: Antena PCTEL/Maxrad de doble banda de perfil bajo, 698-960/1710-2500 MHz, 4 dBi, negro, conector NMO - Requiere plano de tierra
More InfoDocumentsSpecifications ReviewsEl BMLPVDB700/2500 cubre el rango de frecuencia 698-960/1710-2500 MHz con una ganancia promedio de 4 dBi. Se requiere que esta antena se monte en un plano de tierra metálico. Aplicaciones que requieren mínima visibilidad.
Esta antena requiere un soporte NMO. Por favor haga clic aquí para encontrar todos NMO de orificio pasante monturas o NMO magnético Monturas que llevamos.
More Information
The BMLPVDB700/2500 covers 698-960/1710-2500 MHz frequency range with an average gain of 4 dBi. This antenna is required to be mounted on a metallic ground plane. Applications requiring minimum visibility.
Features:
- The BLPV antennas feature an attractive, compact package and are ideal for indoor or outdoor.
- Excellent pattern coverage for mobile and base station applications.
- Compatible with all 3/4 in hole mounts for easier installation.
- No tuning required. Allows faster, more reliable installations.
Documents
Specifications
| SKU | BMLPVDB7002500 |
|---|---|
| Manufacturer Part Number | BMLPVDB700/2500 |
| Manufacturer | PCTEL |
| Antenna Category | 3G/4G/LTE (698-2700 MHz) |
| Working Frequency | 698-960 MHz |
| Gain | 3 dBi |
| Working Frequency 2 | 1710-2500 MHz |
| Gain 2 | 4 dBi |
| Antenna Style | Low Profile Antenna |
| Bands | Dual |
| Max Input Power (W) | 100 W |
| Height/Length (inches) | 3.4 |
| Material | Plastic |
| Color | Black |
| Connector 1 | NMO |
| Ground Plane Required | Yes |
| Product Condition | New |
