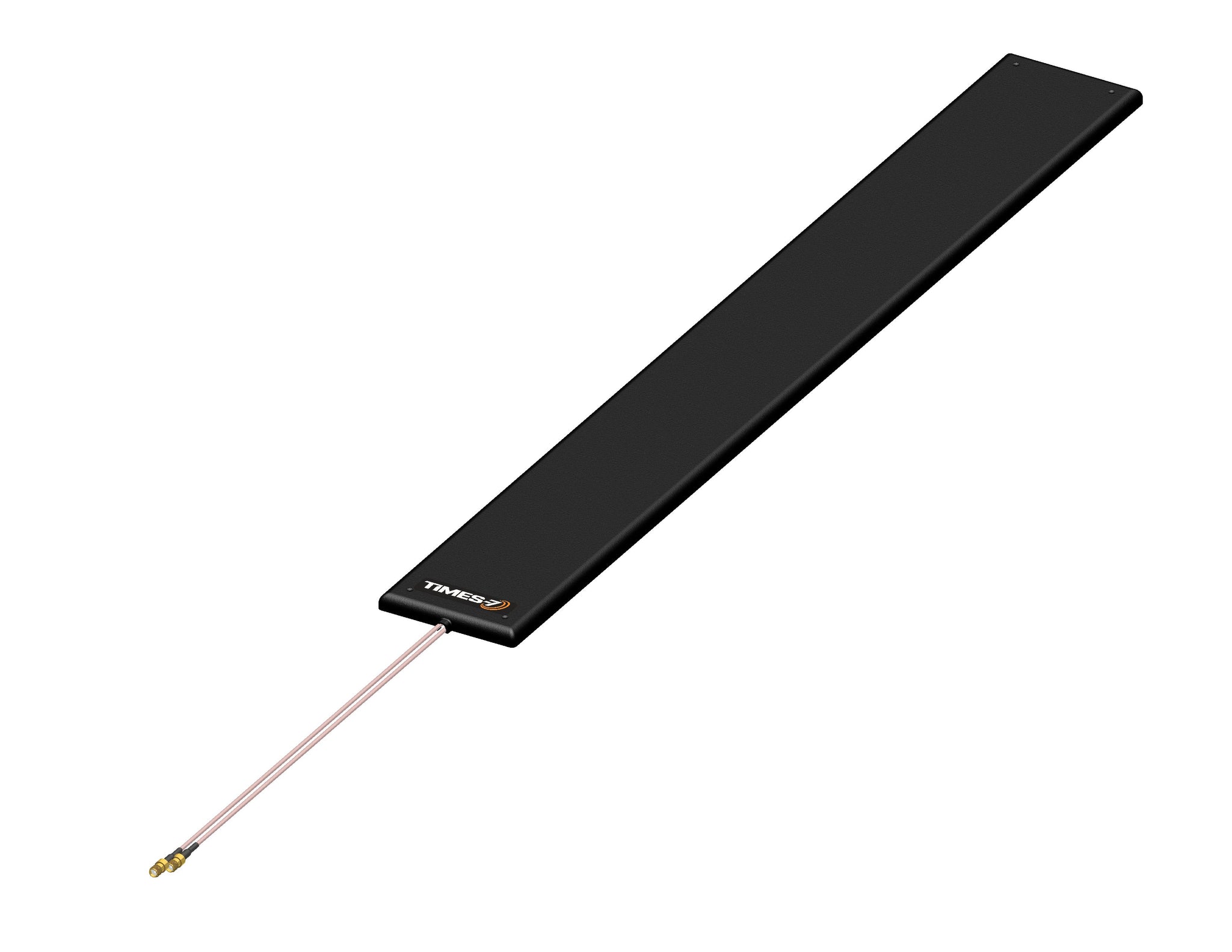

A8065D-71882 (FCC) Doble: Antena UHF delgada 902-928 MHz
A8065D-71882
Los gastos de envío se calculan en la pantalla de pagos.
A8065D-71882 (FCC) Doble: Antena UHF delgada 902-928 MHz
More InfoDocumentsSpecifications ReviewsA8065D-71882 (FCC) Doble: Antena UHF delgada 902-928 MHz
More Information
Specifications
| SKU | A8065D71882 |
|---|---|
| Manufacturer Part Number | A8065D-71882 |
| Manufacturer | Times-7 |
| Working Frequency | 902-928 MHz |
| Antenna Category | RFID (865-928 MHz) |
| Bands | Single |
| IP Rating | IP54 |
| Polarity | Dual Polarity |
| Gain | Horizontal: 3dBi; Vertical: 4dBi |
| Horizontal/Azimuth Beamwidth | 25° in XZ plane; 140° in YZ plane |
| Vertical/Elevation Beamwidth | 40° in XZ; 110° in YZ |
| Connector Type | Connector - Side Entry |
| Connector 1 | SMA-Female |
| Height/Length (inches) | 27.5 |
| Height/Length (mm) | 700 |
| Operating Temp (celsius) | -20° to +55°C / -4° to +131°F |
| Thickness/Diameter (inches) | 0.3 |
| Thickness/Diameter (mm) | 8 |
| Width (inches) | 3.4 |
| Width (mm) | 86 |
| Weight (lbs) | 1.1 |
| Material | Fire retardant ABS |
| Mount Style | Integrated mounting guides / Adhesive foam strip |
| Product Condition | New |
