9-in-1 Low Profile Transit Style Antenna, 4x 5GNR, 4x WiFi-6E, 1x GNSS, 2 Ft Cables for Transit Applications | RTDM-G454W-2-S4S4R-B

  • $360.00
    Precio unitario por

RTDM-G454W-2-S4S4R-B


¡Solo 20 restantes!
Plazo de entrega para cantidades superiores a 20 :  Ships in 10-12 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

9-in-1 Low Profile Transit Style Antenna, 4x 5GNR, 4x WiFi-6E, 1x GNSS, 2 Ft Cables for Transit Applications | RTDM-G454W-2-S4S4R-B

More InfoDocumentsSpecifications Reviews

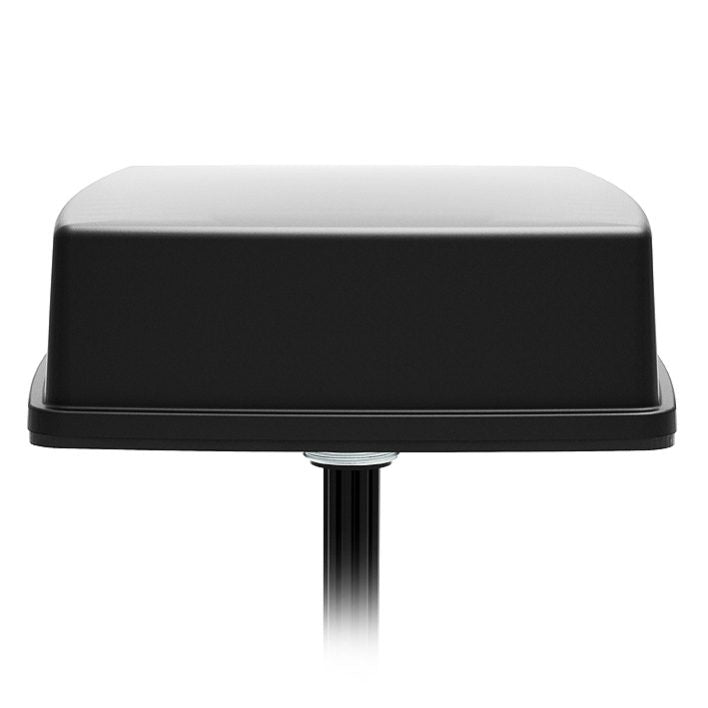

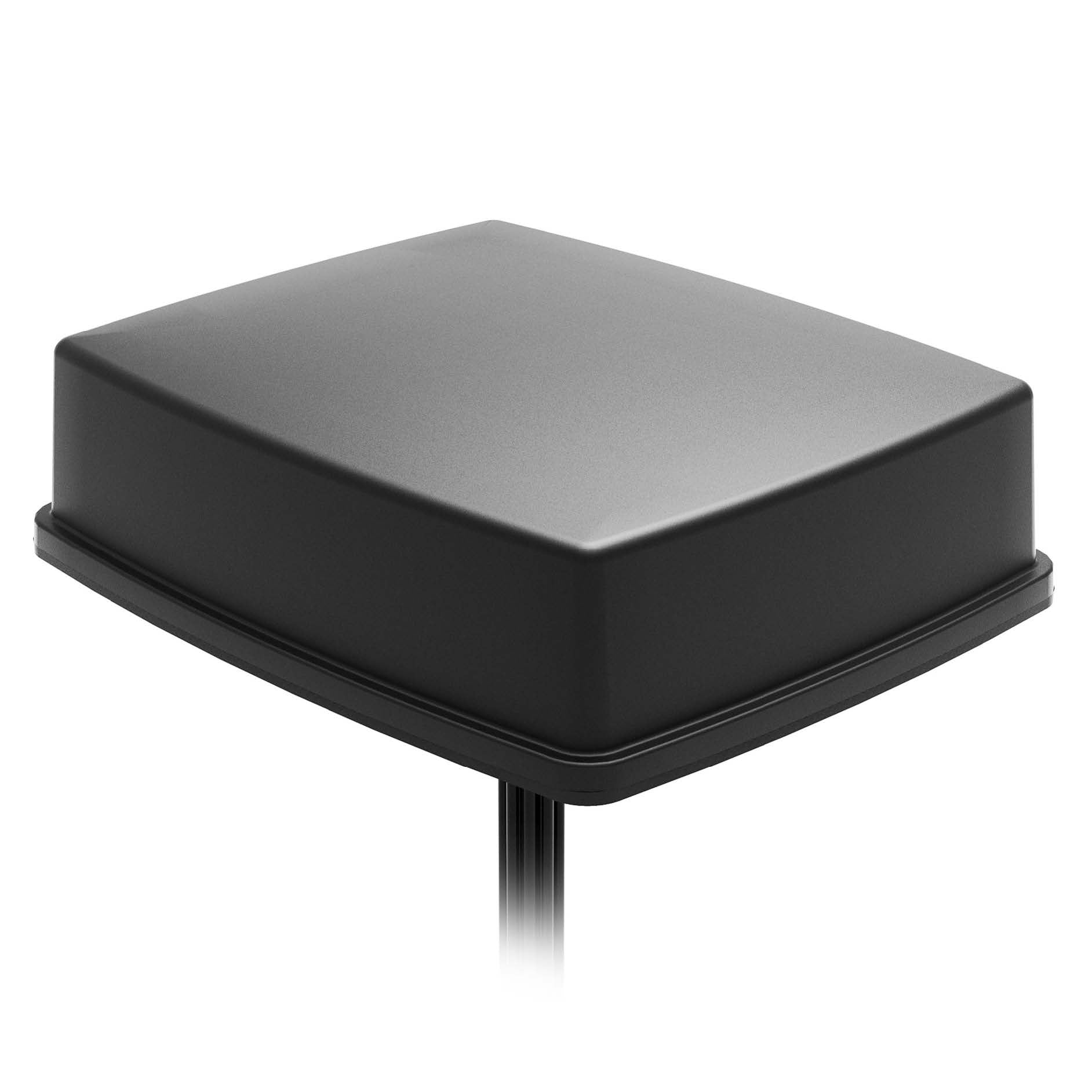

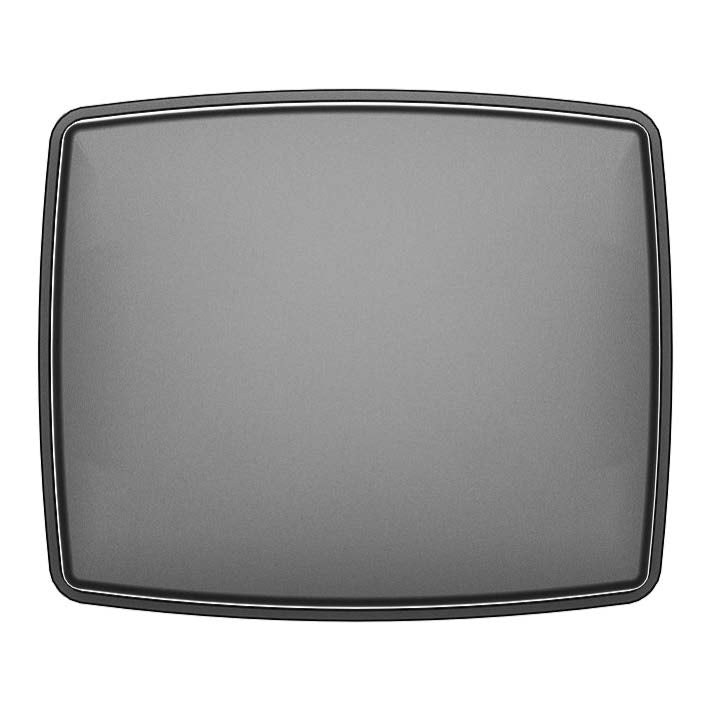

The RFMAX 9-in-1 Antenna, RTDM-G454W-2-S4S4R-B, is a wideband 5G-FR1, WiFi-6E low profile, 2 Ft Cables direct mount antenna. In a rugged, IP67/IP69, attractive low profile radome measuring 7.8 x 6.5 inches and only 2.0 inches tall this antenna is a perfect solution for transit applications. With the capability of a 9-in-1 antenna solution this antenna enables maximization of spectral efficiency and minimizing installation costs by reducing the need for additional antennas.

Compatible with Cradlepoint Modem / Gateway / Router IBR900, R1900, IBR1700, Sierra Wireless / Semtech MG90, Peplink BR, & MB series Radios etc

This antenna is designed for cellular operation from 600-7125 MHz and meets all 5G specs, as well as 4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile. This antenna includes 4x WiFi-6E, 1X GNSS, and 4x 5G/4G/LTE.



More Information

  • RFMAX 9-in-1 Antenna Size: 7.8 x 6.5 x 2 Inches

  • Ground Plane Independent

  • 2 Feet of cable with SMA Male on GNSS and Cell and RP-SMA Male on WiFi

  • Excellent performance at 4G/LTE and 5G (Band 71)

  • Elements: GPS/GNSS, 4x4 MiMo 4G/5G Cellular, 4x4 MiMo WiFi-6E

  • High Gain at all frequencies for maximum connection speeds

  • Vehicular Rated for Mobile (IP67 rated)

  • Easy to install (just one, 1" hole)

  • Approved for use with all major carriers: AT&T, Verizon, Sprint

  • Compatible with Cradlepoint Modem / Gateway / Router IBR900, R1900, IBR1700

  • Compatible with Peplink BR, & MB series Radios


Documents


Specifications

SKU RTDMG454W2S4S4RB
Manufacturer Part Number RTDM-G454W-2-S4S4R-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-960
Gain 3 dBi
Working Frequency 2 1427-2690
Gain 2 5 dBi
Working Frequency 3 3300-5000
Gain 3 4.6 dBi
Working Frequency 4 5150-5925
Gain 4 5 dBi
Working Frequency 5 2400-2500
Gain 5 4.2 dBi
Working Frequency 6 4920-5925
Gain 6 6.7
Working Frequency 7 5925-7125
Gain 7 6.3
Antenna Style "Transit" Multi-Element Antenna
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 25W
VSWR: < X: 1 <2:1
No Of Elements 9
Width (inches) 6.5
Width (mm) 167
Weight (lbs) 2.5
Material ASA
Operating Temp (celsius) -40 to +85
Color Black
Connector Type SMA Male/RP SMA Male
Cable Type D302
Number of Cables 9
Cable Length (inches) 24
Connector 3 SMA-Male
IP Rating IP67, IP69
OK for Outdoor Use Outdoor
Vehicular Yes, 1.0" mounting hole required
Ground Plane Required No
Product Condition New
