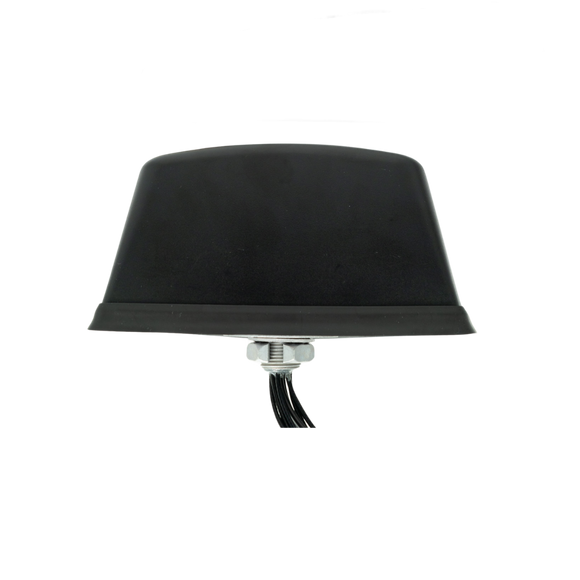

9-in-1 "Brick" antenna for R1900, IBR1700, MG90 | 4x 4G/5G, 4x WiFi-6 & 1x GNSS | R2BDM-G454W-17K-S4S4R-B
R2BDM-G454W-17K-S4S4R-B
Los gastos de envío se calculan en la pantalla de pagos.
9-in-1 "Brick" antenna for R1900, IBR1700, MG90 | 4x 4G/5G, 4x WiFi-6 & 1x GNSS | R2BDM-G454W-17K-S4S4R-B

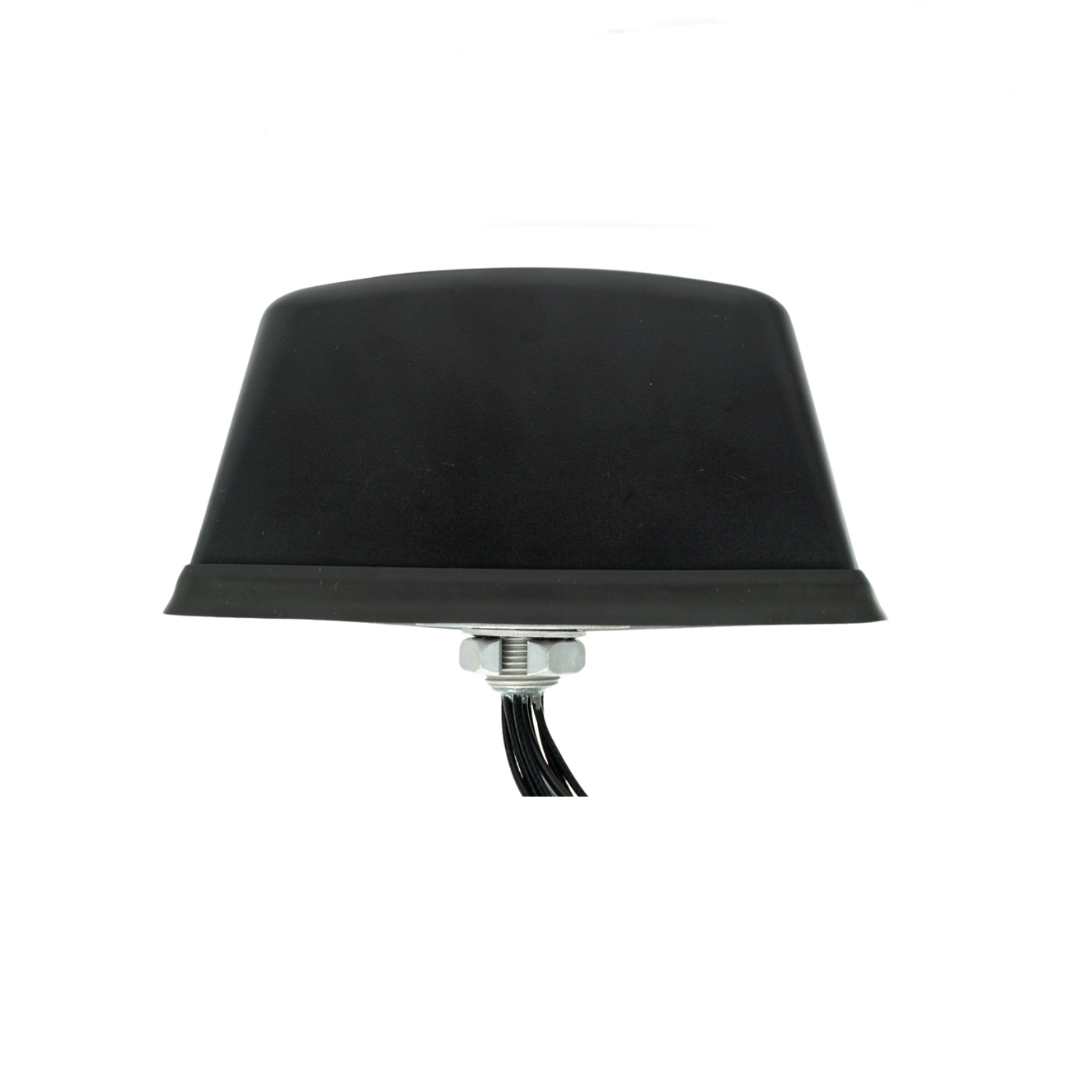

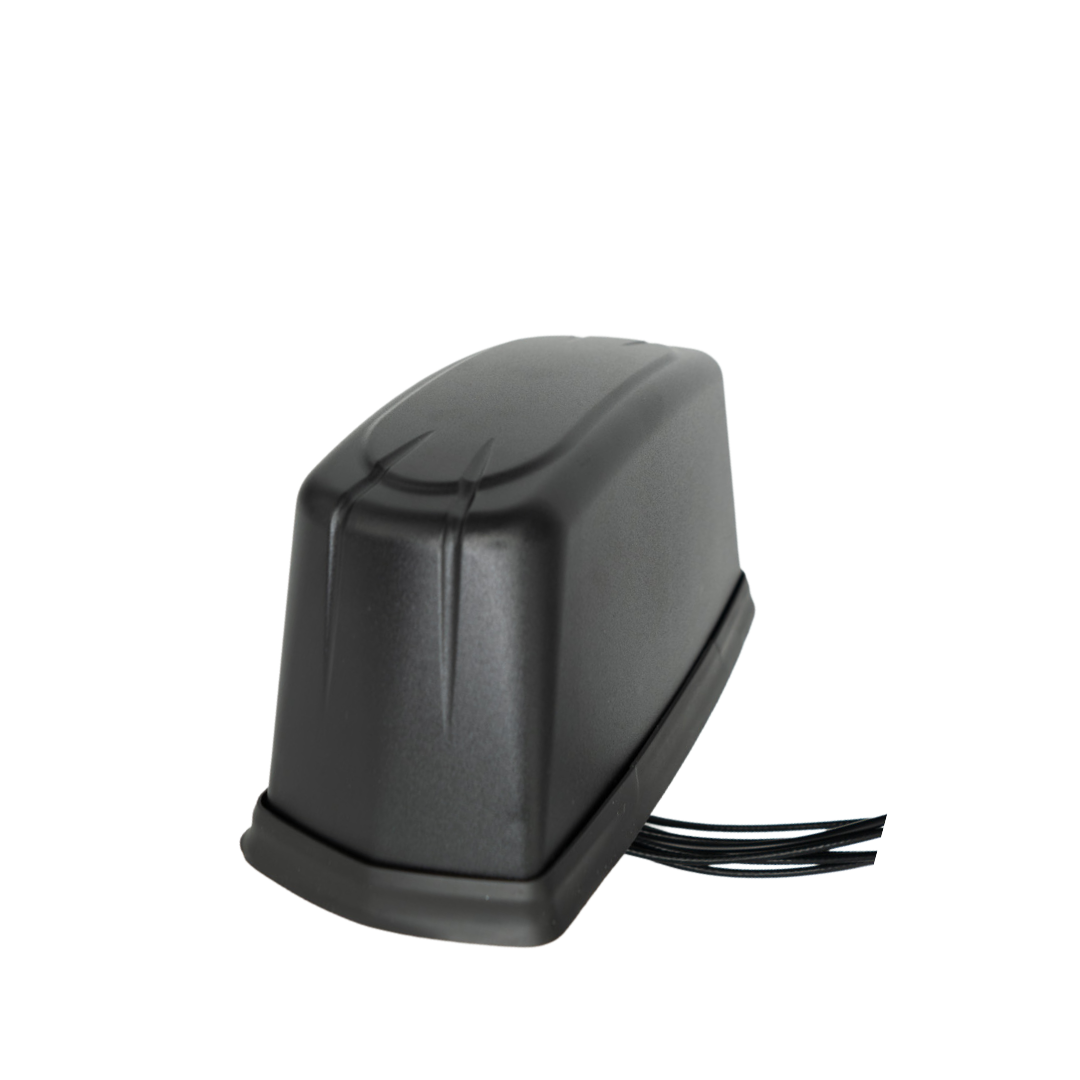

More InfoDocumentsSpecifications ReviewsThis RFMAX 9-in-1 "Brick" Version 2 Antenna is a wideband 4x4 MiMo 5G-FR1, 4x4 WiFi-6E low profile, 17 Ft Cable Kit direct mount antenna.
- IP rating: IP67/IP69, Dimensions: 8 x 3.5 x 3.78 in. (LxWxH)
- 4x4 MiMo 5G + 4x4 MiMo WiFi + 1 GPS/GNSS
- Antenna is terminated with 2 ft cables, and 9x 15 Ft extension cables included
- Compatible with Ericsson/Cradlepoint Modem / Gateway / Router R1900, IBR1700, E3000, Semtech/Sierra Wireless MG90, Digi TX54, Peplink UBR Plus, & MB Series, Teltonika RUTC50 series Radios etc.
- This antenna is designed for cellular operation from 600-7125 MHz and meets all 5G specs, as well as 4G/LTE specifications from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile.

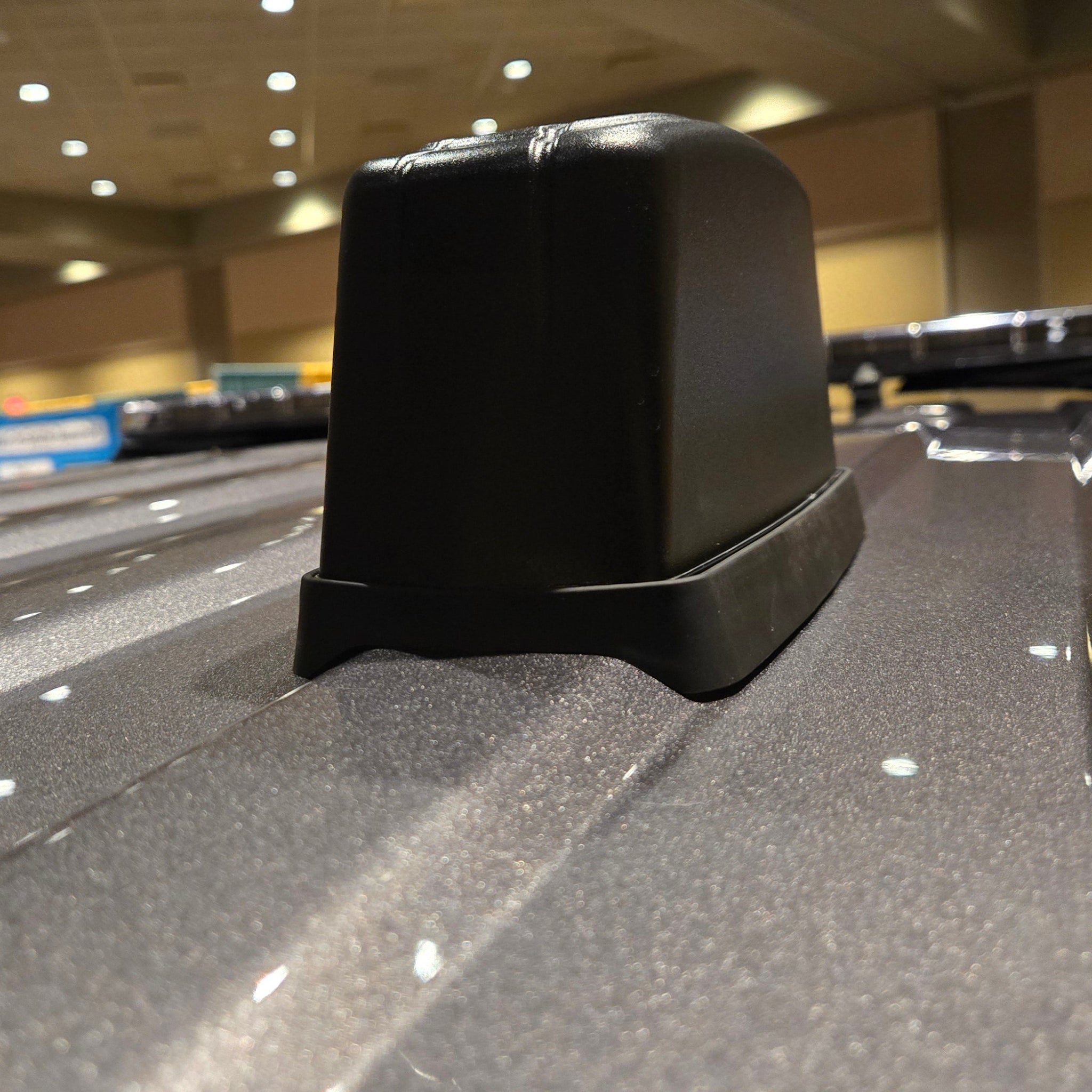

USING THIS ANTENNA FOR FORD EXPLORER / INTERCEPTOR? ADD THIS GASKET
More Information
Specifications
| SKU | R2BDMG454W17KS4S4RB |
|---|---|
| Manufacturer Part Number | R2BDM-G454W-17K-S4S4R-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 617-960 MHz (Cell) |
| Gain | 2.0 dBi |
| Working Frequency 2 | 1710-7125 MHz (Cell) |
| Gain 2 | 6.4 dBi |
| Working Frequency 3 | 2400-2500 MHz (WiFi) |
| Gain 3 | 7.5 dBi |
| Working Frequency 4 | 4900-7125 MHz (WiFi) |
| Gain 4 | 5.3 dBi |
| Working Frequency 5 | 1561-1602 MHz GPS/GNSS/Beidou |
| Gain 5 | 30 ± 20 dB (LNA Gain) |
| Antenna Style | "Brick" Multi-Element Antenna |
| Polarity | Vertical |
| SISO or MIMO | MIMO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 ohms |
| Max Input Power (W) | 20 watts |
| VSWR: < X: 1 | <3:1 (cell)/<2.5:1 (WiFi) |
| No Of Elements | 9 |
| Height/Length (inches) | 8.05 |
| Height/Length (mm) | 204.4 |
| Width (inches) | 3.57 |
| Width (mm) | 90.6 |
| Thickness/Diameter (inches) | 3.78 |
| Thickness/Diameter (mm) | 96.01 |
| Weight (lbs) | 8 |
| Material | UV Stable, UL94 Radome |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Direct Mount |
| Color | Black |
| Cable Type | Low Loss 195 |
| Number of Cables | 9 |
| Connector 1 | SMA-Male (Cell & GPS) |
| Connector 2 | RP-SMA Male (WiFi) |
| Includes | Includes Cable Kit |
| IP Rating | IP67 |
| OK for Outdoor Use | Indoor/Outdoor |
| Ground Plane Required | No |
| Product Condition | New |
