617–5925 MHz 5G Sub-6 GHz, LTE, WiFi 6/6E Wideband Adhesive Mount Antenna|R6WA-600/60-10-SFF

  • $21.91
    Precio unitario por

R6WA-600/60-10-SFF


0 en existencia. Sujeto al tiempo de entrega de fábrica
Tiempo de espera:  Ships in 6-8 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

617–5925 MHz 5G Sub-6 GHz, LTE, WiFi 6/6E Wideband Adhesive Mount Antenna|R6WA-600/60-10-SFF

More InfoDocumentsSpecifications Reviews

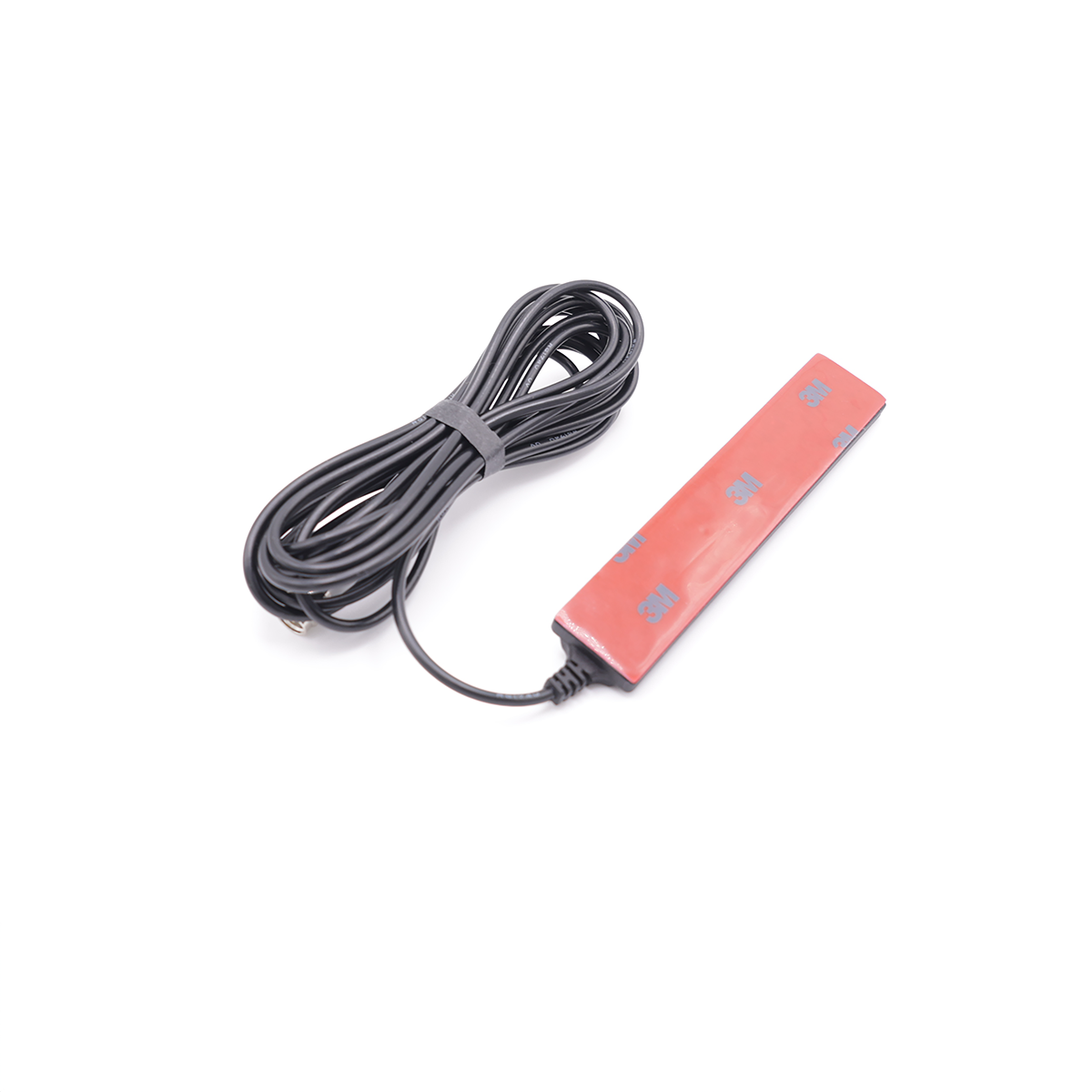

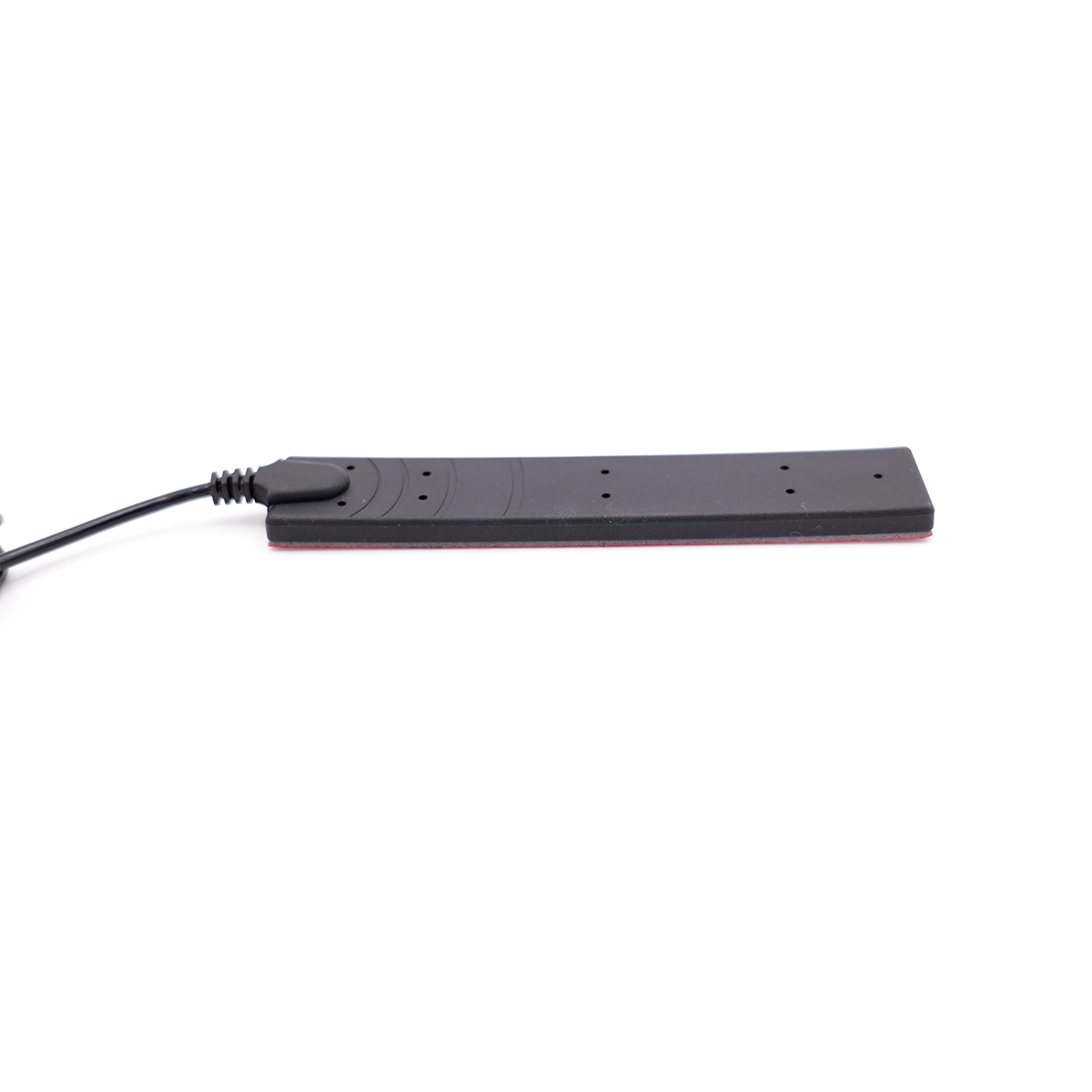

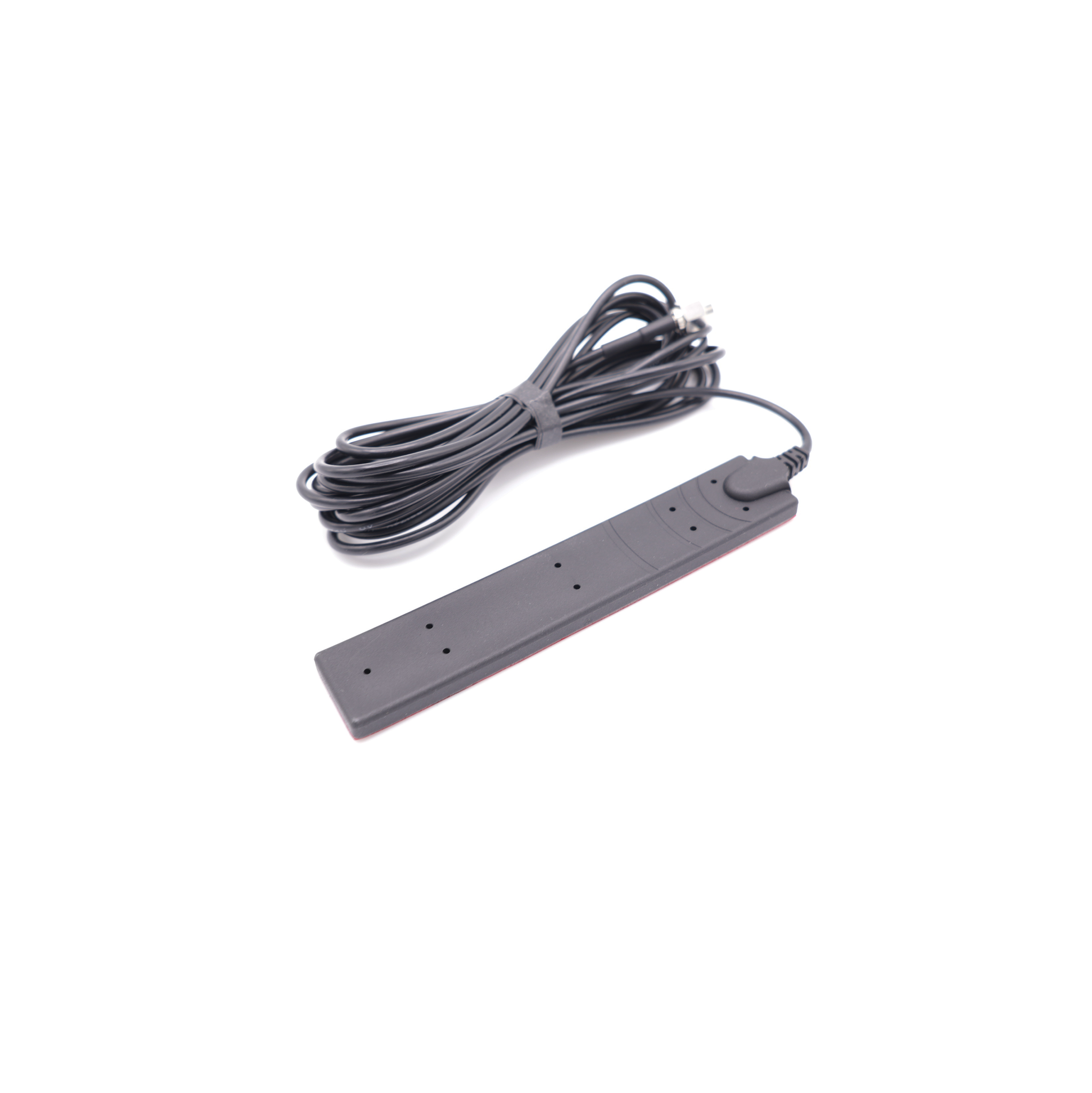

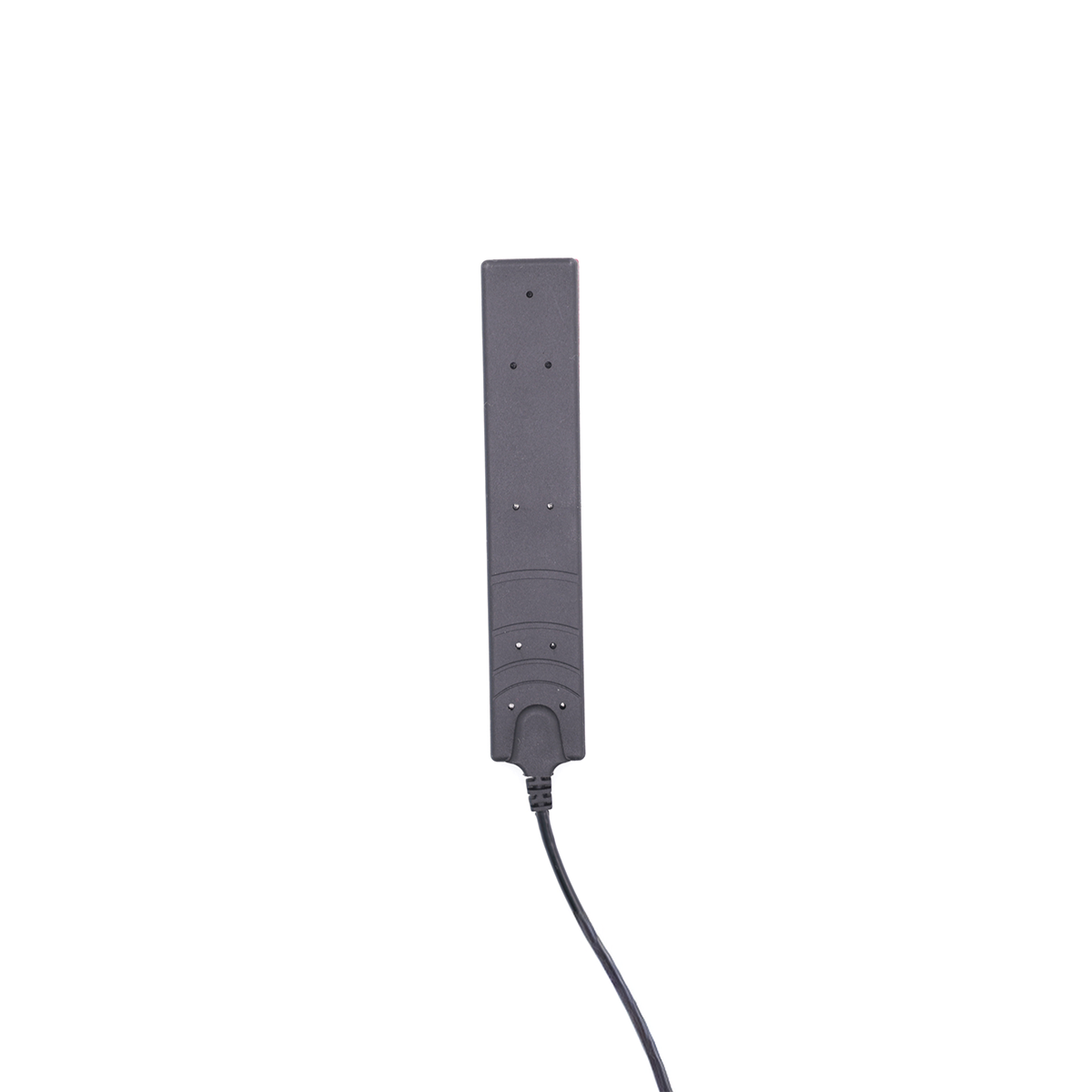

The RFMAX R6WA Antenna Series is a wideband Sub-6 GHz multiband antenna engineered for 5G, LTE, CBRS, and WiFi 6/6E applications across 617–5925 MHz. Featuring 3 dBi gain, <2:1 VSWR, and 50-ohm impedance the R6WA delivers reliable omni-directional performance for routers, gateways, IoT devices, and M2M systems. Its low-profile ABS housing, linear polarization, and 3M adhesive mounting enable clean installations on glass or non-conductive surfaces , making it ideal for fleet, smart city, industrial automation, and mobile broadband deployments. Antenna includes 10 feet of cable and FME Female Connector.



More Information


Documents


Specifications

SKU R6WA6006010SFF
Manufacturer Part Number R6WA-600/60-10-SFF
Manufacturer RFMAX
Antenna Category 5G/4G (600-7125 MHz)
Working Frequency 617-5925 MHz
Antenna Style Blade/Stubby Antenna
Polarity Vertical
Directional or Omni Omni Directional
Impedance 50 ohms
Max Input Power (W) 10W
VSWR: < X: 1 <2.0:1
Cable Length 10 Feet
Height/Length (inches) 4.6
Height/Length (mm) 117
Width (inches) 0.9
Width (mm) 23
Weight (grams) 50
Operating Temp (celsius) -30°C to +75°C
Color Black
Cable Type RG-174
Cable Length (inches) 120
Connector 1 FME Female
IP Rating IP65
OK for Outdoor Use Indoor/Outdoor
Ground Plane Required No
Product Condition New
