5-in-1 Covert/Window shield/Dashboard Antenna For Axon Fleet 3 Fleet Hub Device | R2WA-GWWWW-10-SRRRR

  • $238.17
    Precio unitario por

R2WA-GWWWW-10-SRRRR


¡Solo 21 restantes!
Plazo de entrega para cantidades superiores a 21 :  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

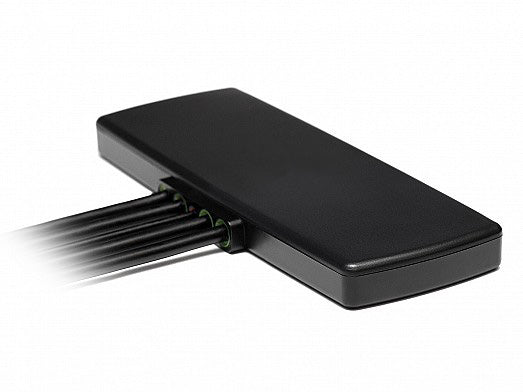

5-in-1 Covert/Window shield/Dashboard Antenna For Axon Fleet 3 Fleet Hub Device | R2WA-GWWWW-10-SRRRR

More InfoDocumentsSpecifications Reviews

Enhance your AXON Fleet 3 in-car video system with the RFMAX R2WA-GWWWW, a rugged 5-in-1 covert antenna engineered for Public Safety fleets. This ultra-low-profile solution integrates WiFi 6/6E MIMO, GPS/GNSS, and high-efficiency multi-band performance to ensure reliable video offload, real-time connectivity, and precise location tracking. Designed with IP67/IP69 durability, adhesive mounting, and ground-plane-independent operation, it delivers mission-critical performance for police, fire, EMS, and municipal fleet deployments using AXON Fleet 3 technology.



More Information

The RFMAX R2WA-GWWWW 5-in-1 Covert WiFi + GPS Antenna is engineered from the ground up to enhance the performance, reliability, and connectivity of the AXON Fleet 3 in-car video system—one of the leading body-worn and vehicle video platform trusted by law enforcement nationwide. Built for mission-critical public safety applications, this ultra-low-profile antenna integrates four independent WiFi 6/6E MIMO elements plus a high-gain GPS/GNSS receiver, delivering fast video offload, stable real-time network access, and precise vehicle location tracking in the most demanding mobile environments.

Designed for professional fleet upfitters, this antenna’s covert, adhesive-mount form factor allows for discreet installation on vehicle dashboards, interior panels, or hidden mounting surfaces—ideal for agencies requiring tactical concealment without compromising performance. With rugged IP67/IP69 protection, ground-plane-independent operation, and support for 2.4/5.0/6.0 GHz ISM bands, it ensures consistent connectivity to station WiFi, mobile mesh networks, and digital evidence management infrastructure.

Whether used for high-throughput video uploads, AXON Fleet 3 system synchronization, real-time GPS tracking, or wireless system updates, the RFMAX R2WA-GWWWW provides the rock-solid RF performance required for dependable police vehicle video systems.

Small, Covert Size: L=7 x W=2.43 and T=0.67 Inches


Documents


Specifications

SKU R2WAGWWWW10SRRRR
Manufacturer Part Number R2WA-GWWWW-10-SRRRR
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 2410-2490 MHz
Gain 2.4 dBi
Working Frequency 2 4920-5925 MHz
Gain 2 3.9 dBi
Working Frequency 3 5925-7125 MHz
Gain 3 4.1 dBi
Antenna Style "Wedge" Multi-Element Antenna
Directional or Omni Omni Directional
Impedance 50 ohms
Max Input Power (W) 25W
VSWR: < X: 1 <2.0:1
No Of Elements 5
Height/Length (inches) 6.13
Height/Length (mm) 155.6
Width (inches) 2.43
Width (mm) 61.8
Thickness/Diameter (inches) 0.79
Thickness/Diameter (mm) 20
Material ASA UV Stable
Operating Temp (celsius) -40°C to +85°C
Color Black
Number of Cables 5
Cable Length (inches) 120
Connector 1 RP-SMA Male
Connector 2 RP-SMA Male
Connector 3 RP SMA-Male
IP Rating IP67
OK for Outdoor Use Indoor/Outdoor
Ground Plane Required No
Product Condition New
