4G/5G, 5 en 1 con cables de 17 pies y TNC macho | RBDM-G55WW-17-TTTTT-B
RBDM-G55WW-17-TTTTT-B
Los gastos de envío se calculan en la pantalla de pagos.
4G/5G, 5 en 1 con cables de 17 pies y TNC macho | RBDM-G55WW-17-TTTTT-B

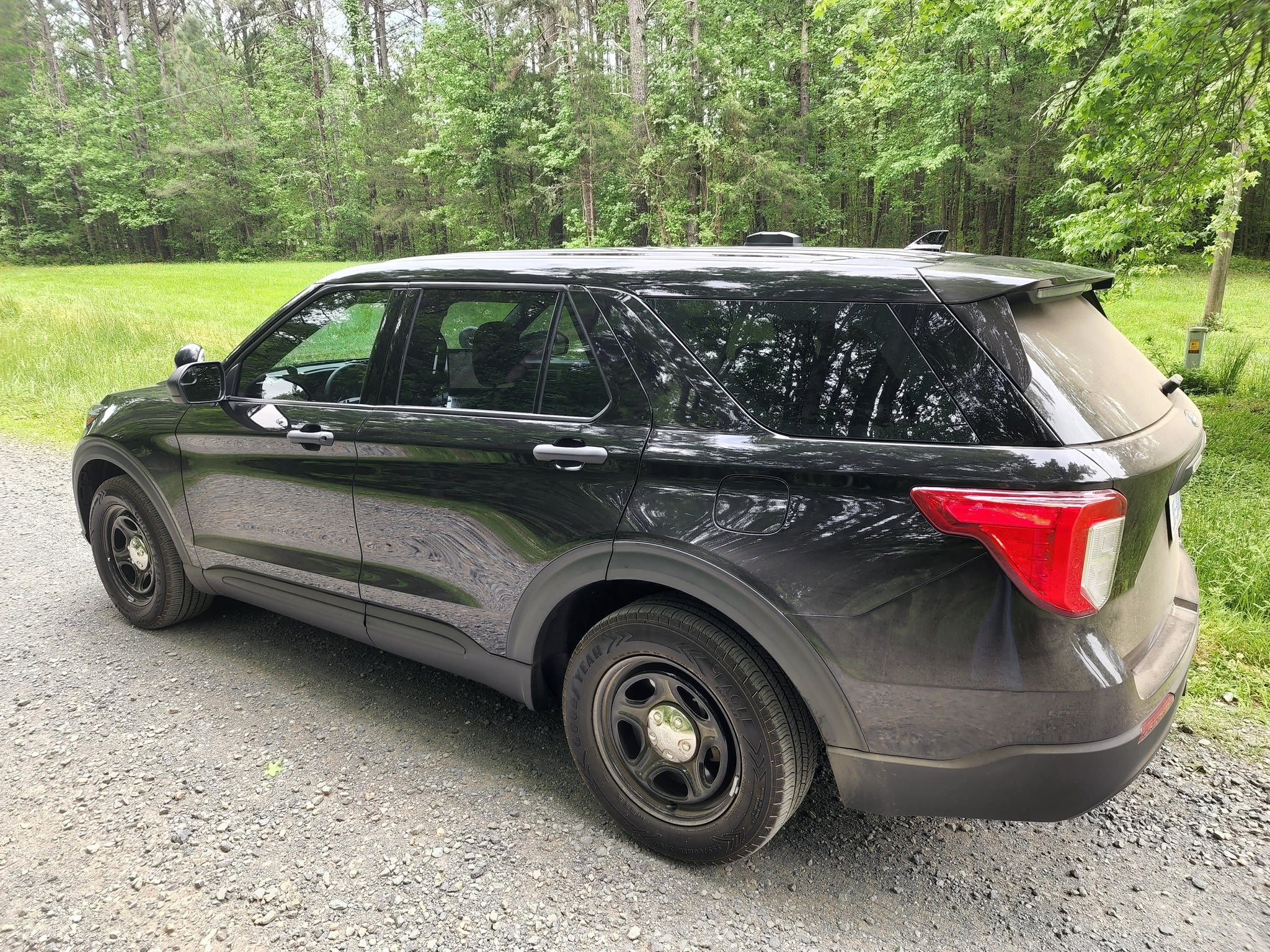

More InfoDocumentsSpecifications Reviews¿UTILIZA ESTA ANTENA PARA FORD EXPLORER/INTERCEPTOR? AÑADIR ESTA JUNTA

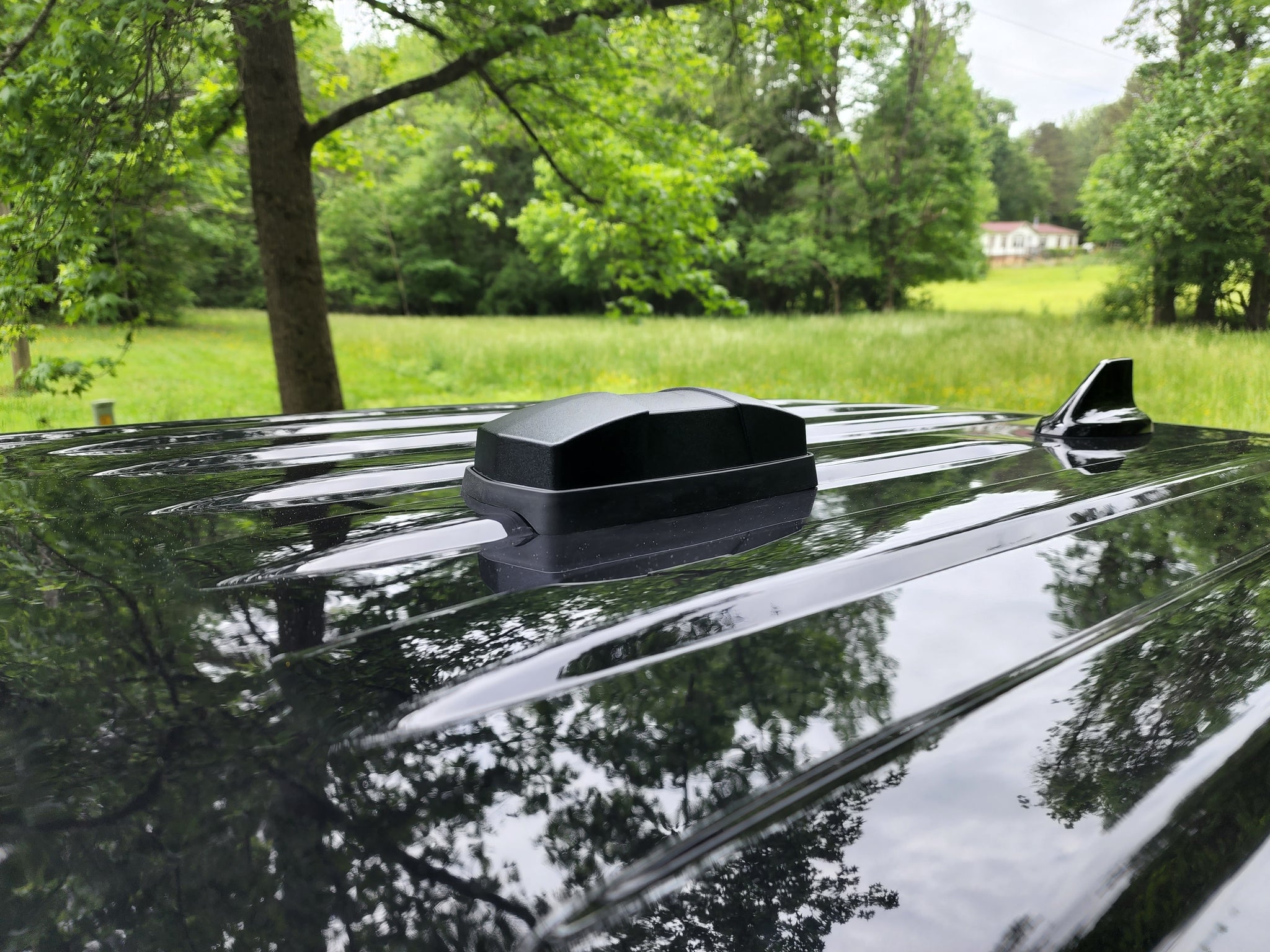

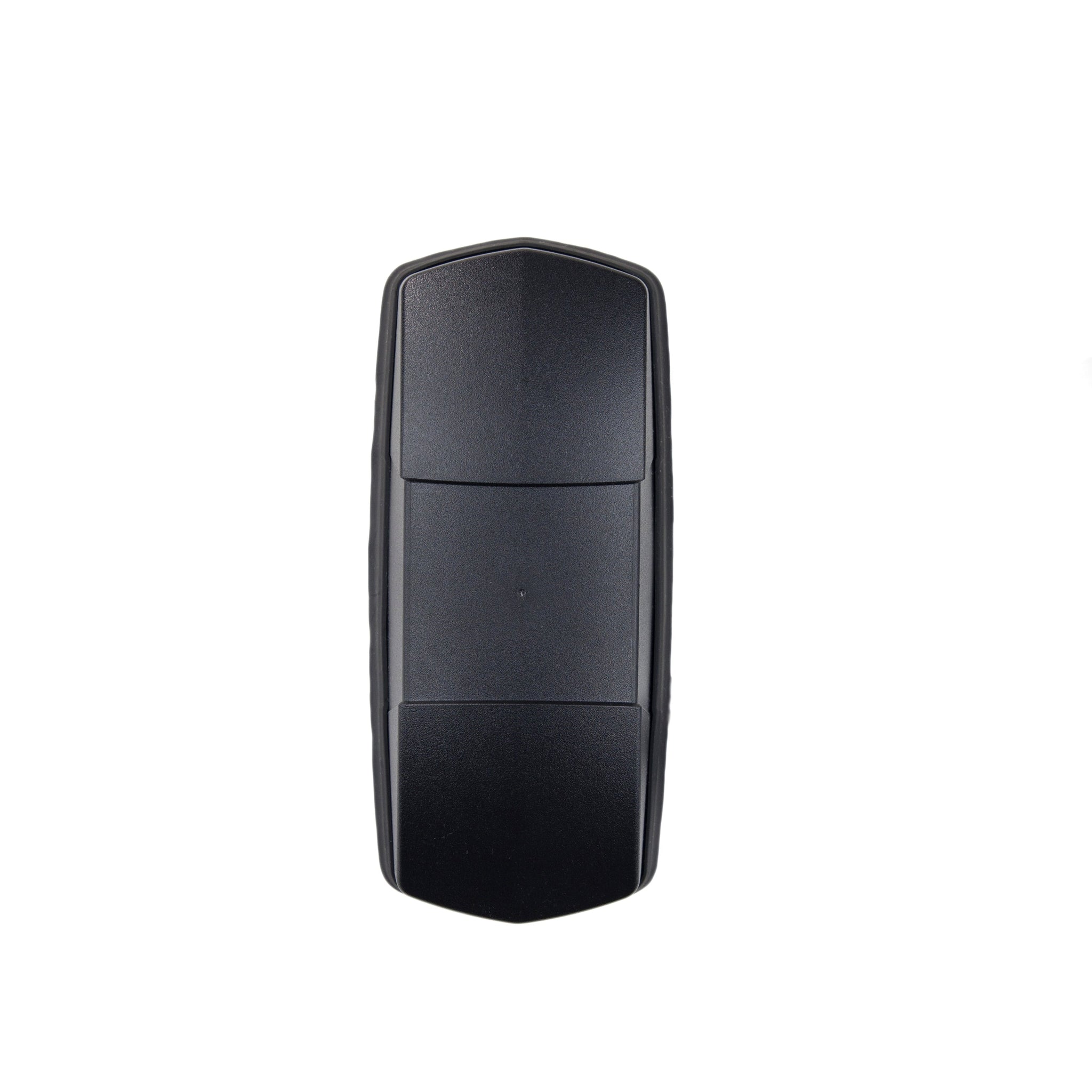

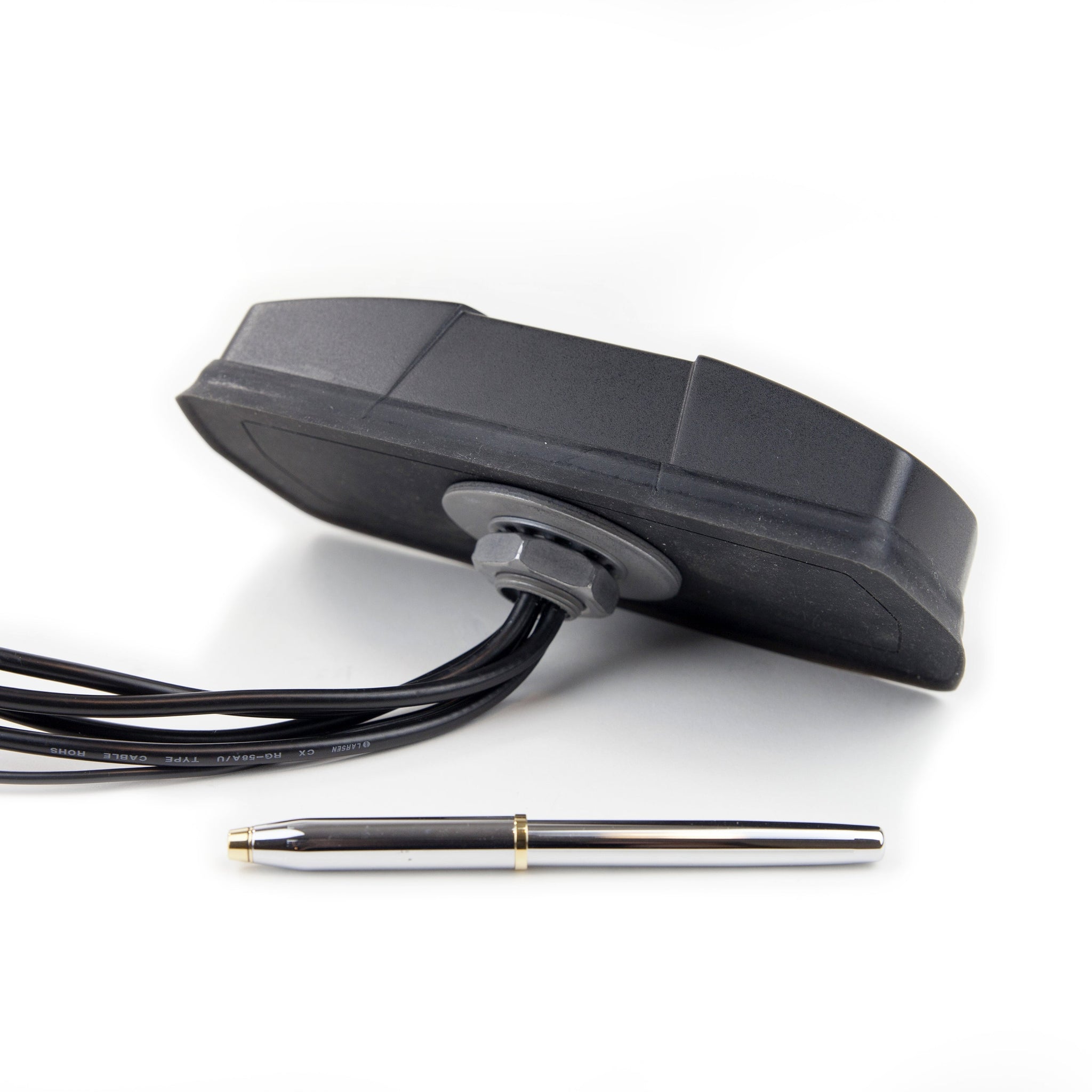

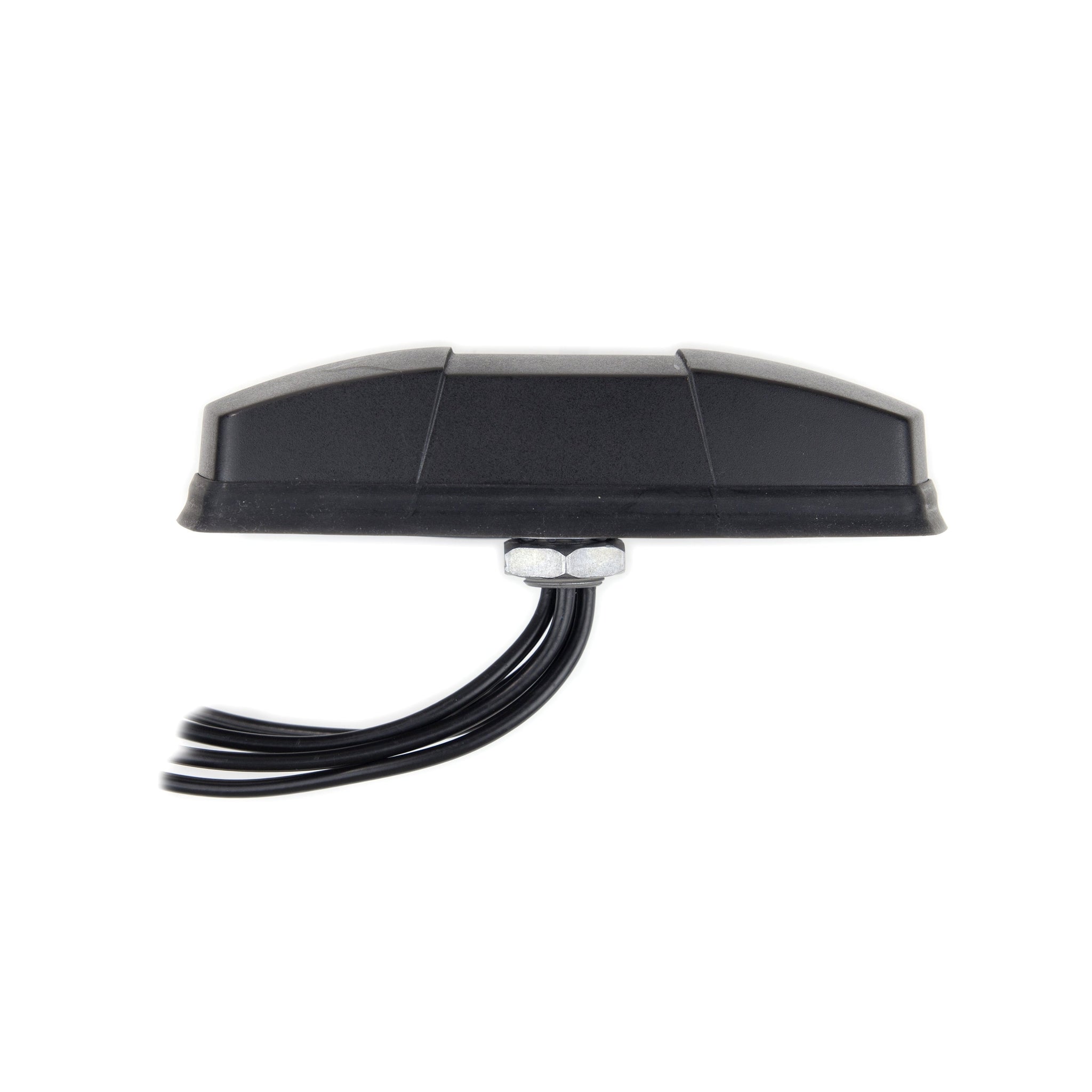

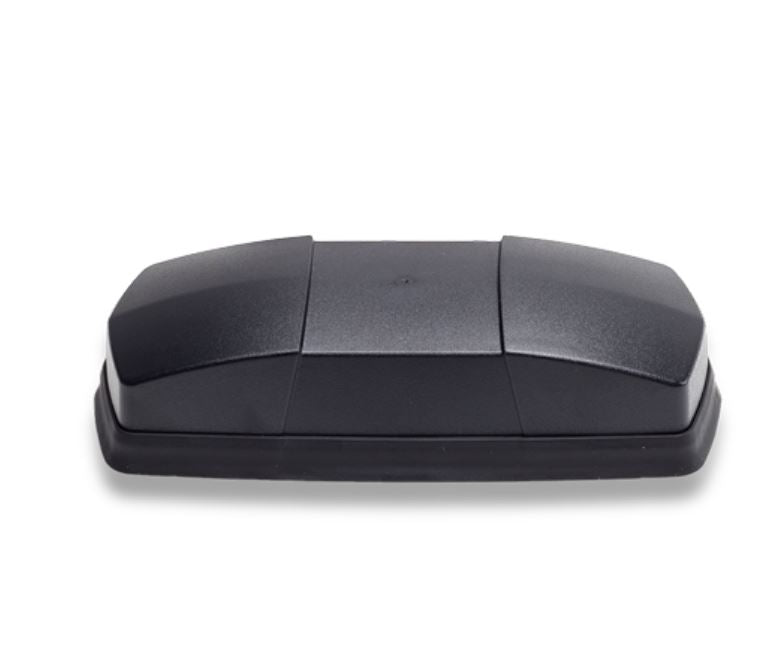

La antena RFMAX "Brick" # RBDM-G55WW-17-TTTTT-B es una antena NEGRA 5 en 1 con 1 x GPS + 2 x Celular, 2 x WiFi, TNC Macho en todas las líneas
More Information

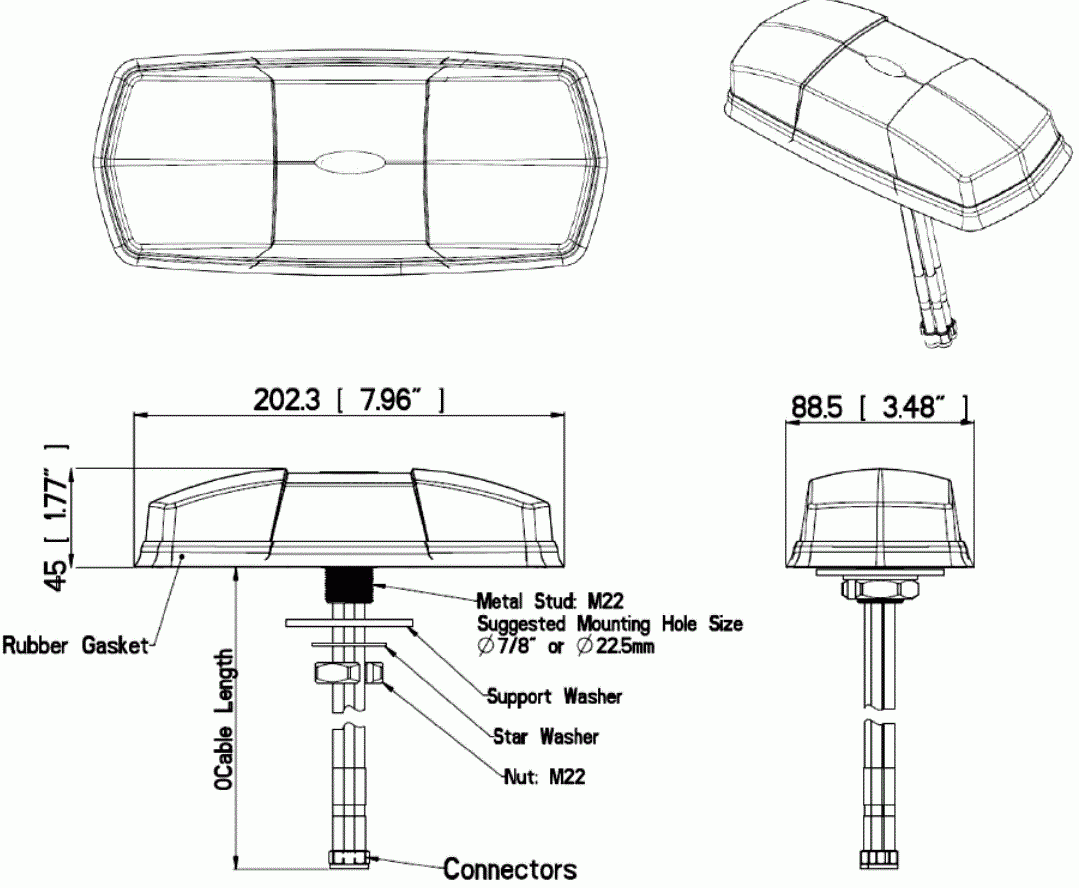

- RFMAX "Brick" Antenna Size: 7.9 x 3.4 x 1.8 Inches
- Excellent performance at 4G/LTE and 5G (Band 71)
- Elements: GPS/GNSS, MiMo 4G/5G Cellular, MiMo Wi-Fi, TNC Male connectors
- High Gain at all frequencies for maximum connection speeds
- Vehicular Rated for Mobile (IP67 rated)

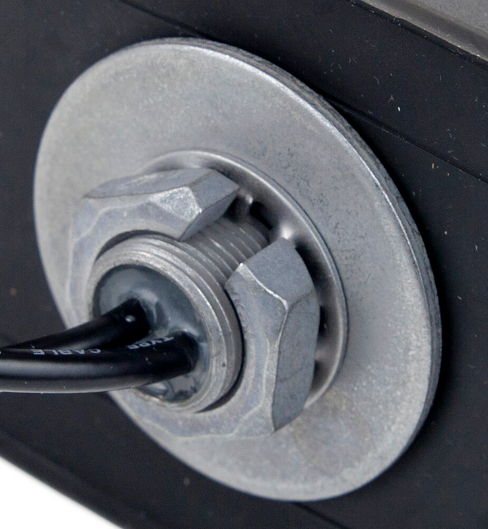

- Easy to install (just one, 7/8" hole)
Documents
Specifications
SKU | RBDMG55WW17TTTTTB |
---|---|
Manufacturer Part Number | RBDM-G55WW-17-TTTTT-B |
Manufacturer | RFMAX |
Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
Working Frequency | 617-960 MHz |
Gain | 3.3 dBi |
Working Frequency 2 | 1710-6000 MHz |
Gain 2 | 5.2 dBi |
Working Frequency 3 | 2400-2500 MHz |
Gain 3 | 5.4 dBi |
Working Frequency 4 | 5150-5925 MHz |
Gain 4 | 6.3 dBi |
Working Frequency 5 | 1561-1602 MHz GPS/GNSS |
Gain 5 | 30 dB LNA Gain |
Antenna Style | "Brick" Multi-Element Antenna |
Polarity | Linear |
Bands | Multi |
SISO or MIMO | MIMO |
Directional or Omni | Omnidirectional |
Impedance | 50 Ohm |
VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
Horizontal/Azimuth Beamwidth | 360 |
Plenum/Fire Rating | UV Stable, UL94 Radome |
No Of Elements | 5 |
Height/Length (inches) | 7.9 |
Height/Length (mm) | 202 |
Width (inches) | 3.4 |
Width (mm) | 88 |
Thickness/Diameter (inches) | 1.8 |
Thickness/Diameter (mm) | 45 |
Weight (lbs) | 2 |
Material | UV Stable, UL94 Radome |
Operating Temp (celsius) | -40 to +85 C |
Mount Style | Direct Mount |
Color | Black |
Number of Cables | 5 |
Cable Length (inches) | 204 |
Connector 1 | TNC-Male |
IP Rating | IP67 |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | No |
Product Condition | New |
