Antena 4G/5G, 5 en 1 para enrutadores celulares móviles con GPS de precisión y (Band 71, CBRS, WiFi6) RBDM-P55WW-17-SSSRR-B
RBDM-P55WW-17-SSSRR-B
Antena 4G/5G, 5 en 1 para enrutadores celulares móviles con GPS de precisión y (Band 71, CBRS, WiFi6) RBDM-P55WW-17-SSSRR-B
More InfoDocumentsSpecifications Reviews¿UTILIZA ESTA ANTENA PARA FORD EXPLORER/INTERCEPTOR? AÑADIR ESTA JUNTA

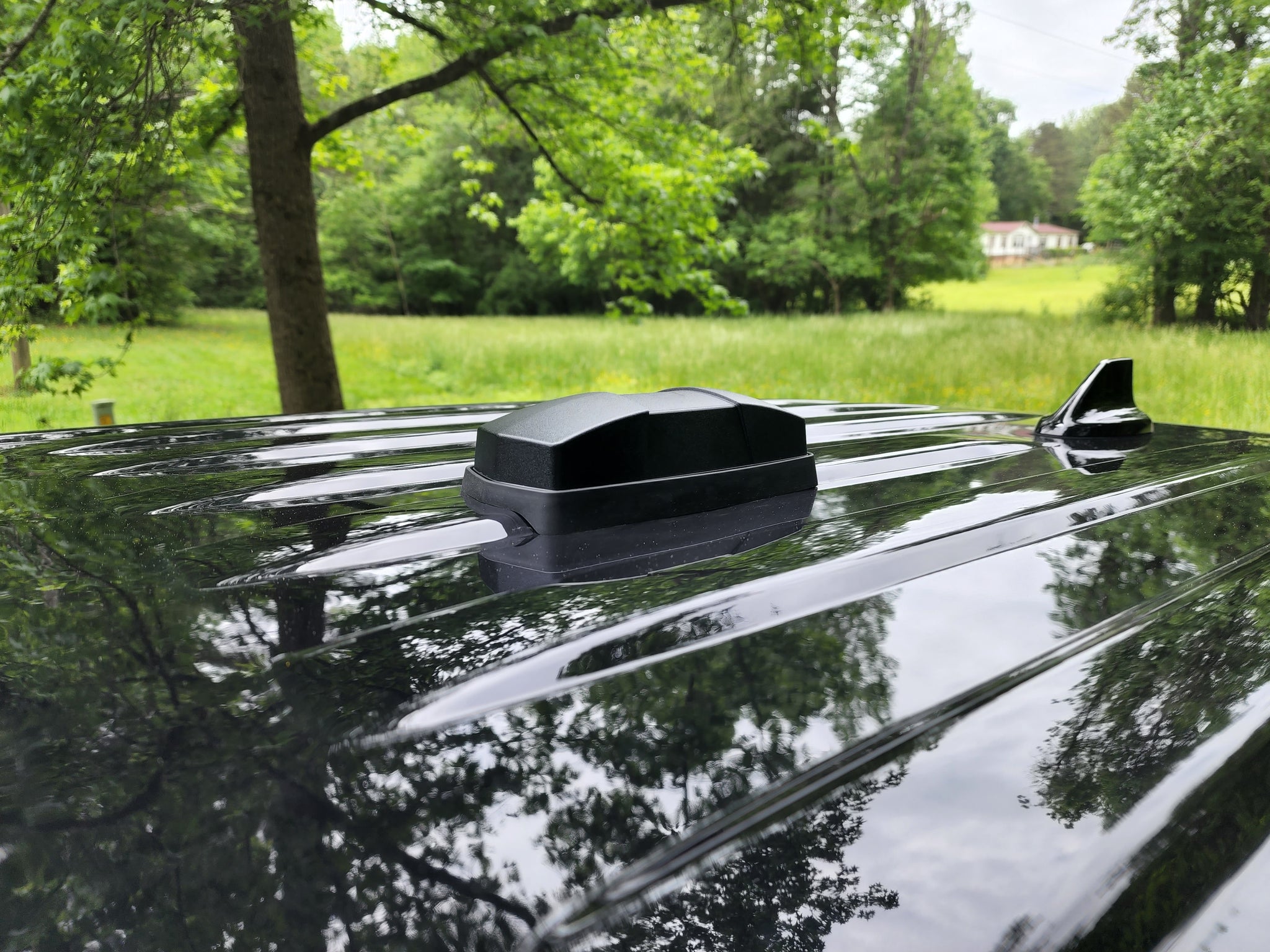

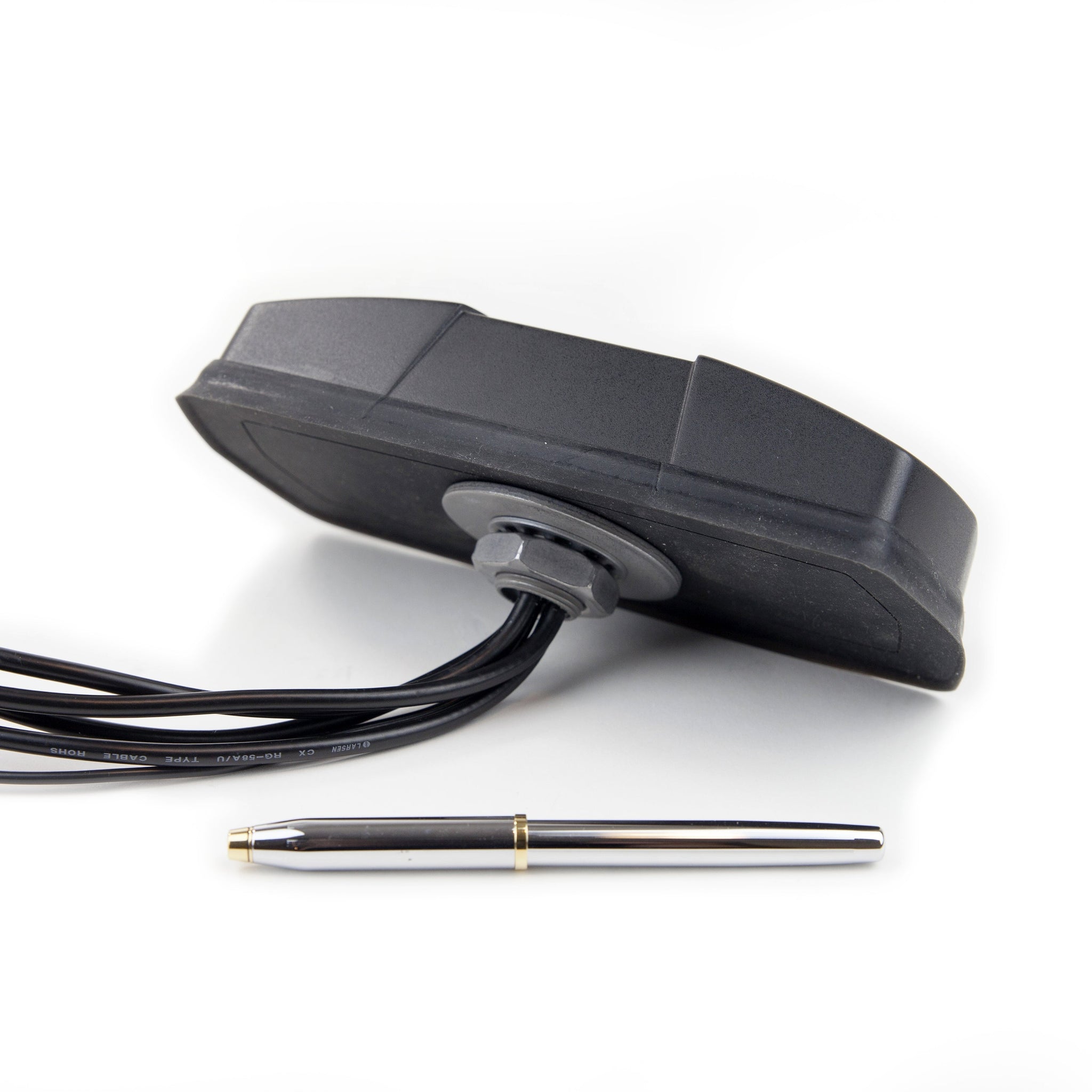

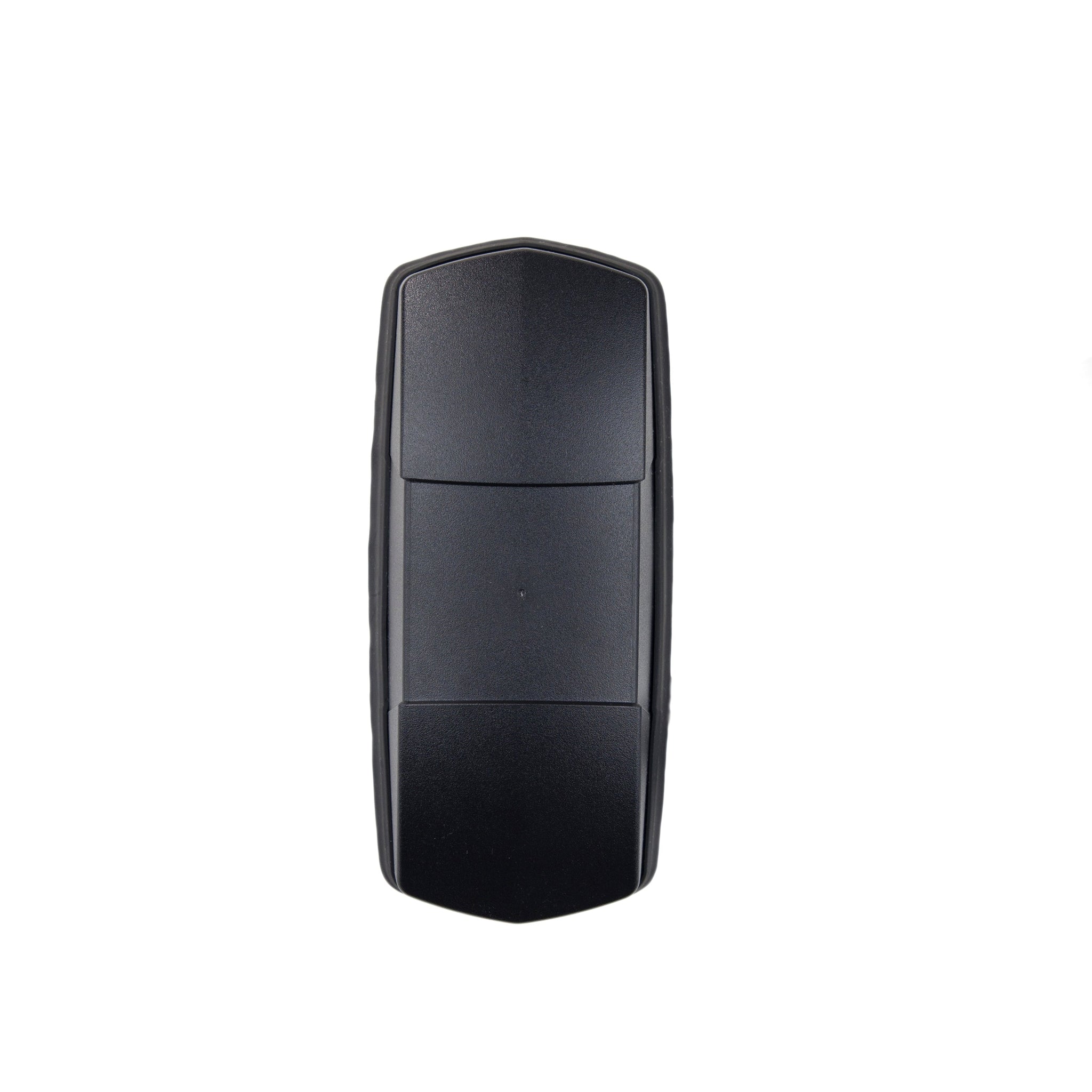

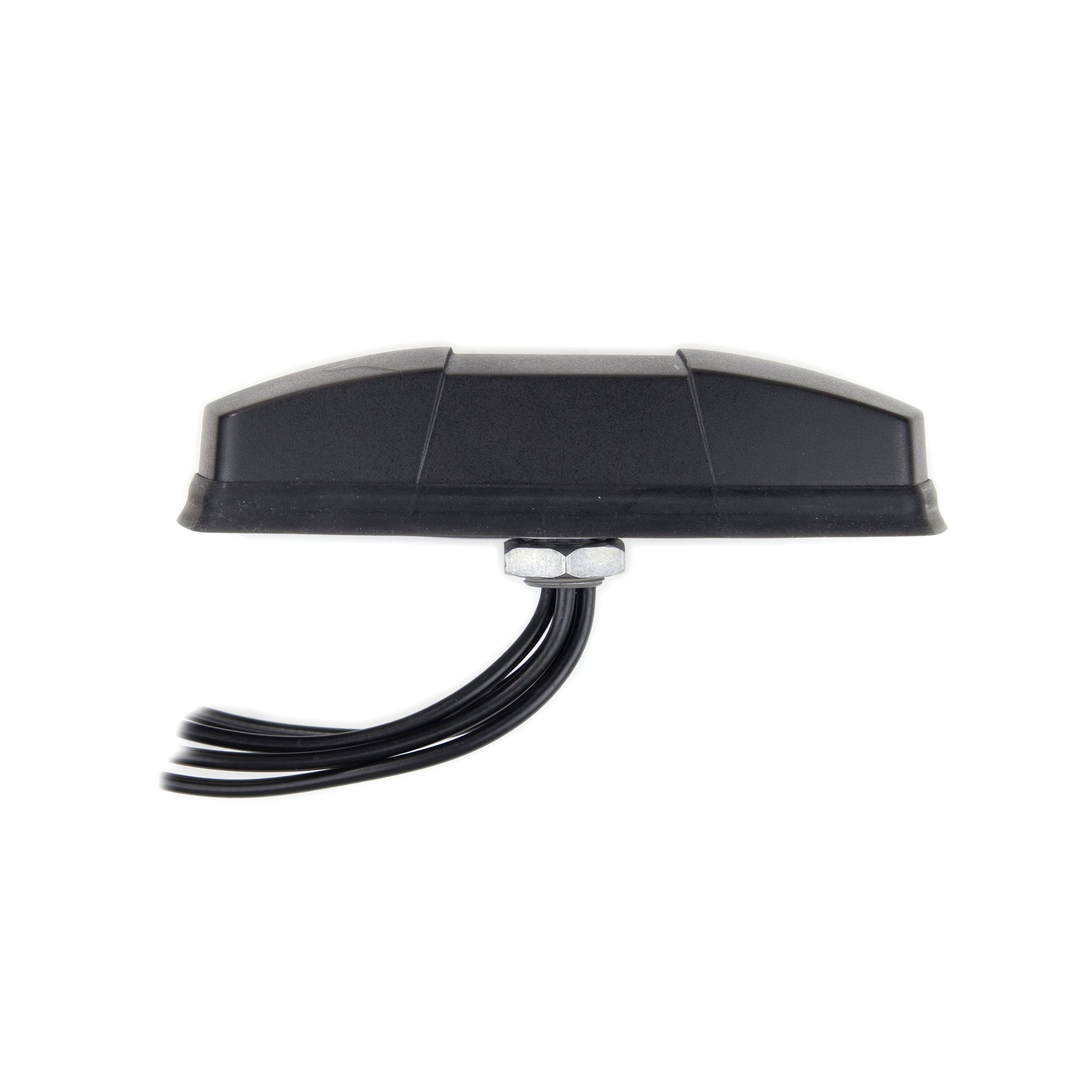

La antena RFMAX "Brick" # RBDM-P55WW-17-SSSRR-B es una antena NEGRA, lista para 5G (617-6000 Mhz), compacta, de perfil bajo y de montaje directo ultrarresistente diseñada para seguridad pública y flotas empresariales. La unidad mide 7,9 x 3,5 pulgadas, con una altura de sólo 1,8 pulgadas. Esta antena fue diseñada para superar todas las especificaciones 3G/4G/LTE *Y* 5G (Banda 71, CBRS) de los principales operadores de telefonía celular de América del Norte, incluidos AT&T, Verizon, Sprint y T-Mobile. Esta antena es la elección perfecta para la policía, el sheriff, los bomberos y los servicios de emergencias médicas, incluidos Chevy Tahoe, Dodge Durango y el Ford Explorer/Police Interceptor 2020/2021. Incluye adaptadores TNC para estaciones de acoplamiento MDT.
Optimizado para: Cradlepoint IBR900 y R1900, Sierra Wireless AirLink RV55, PepLink y módems Multi-Tech que requieren GPS, celular y WiFi de precisión.
More Information
GPS Electric Specifications | |
Frequency | L1: 1560-1610 MHz L2: 1226.6-1228.6 MHz |
Return loss | L1< -3dB, L2 < -8dB |
Gain | L2:0 / L1:0 dBic |
Efficiency | L2:35 / L1:30 % |
Polarization | RHCP |
LNA Gain | 38 +/- 3 dB |
Operation Voltage | 3.3~5.5 Vdc +/- 0.5V |
Current Consumption | <15 mA |
Noise Figure | <1.5 dB |
Out of Band Rejection | L2: 1000MHz >50 dB L2: 1500MHz >50 dB |
L1: 1100MHz >60 dB L1: 2100MHz >60 dB |

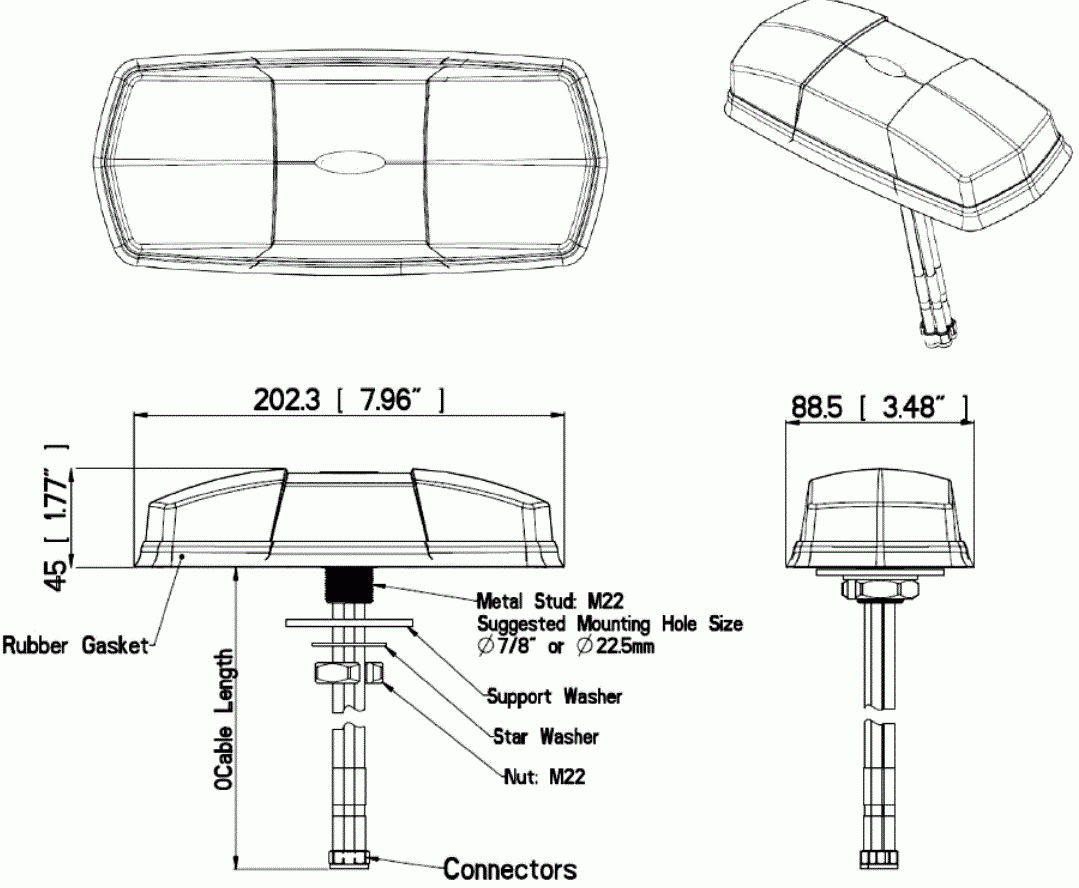

- RFMAX "Brick" Antenna Size: 7.9 x 3.4 x 1.8 Inches
- High Precision GNSS: L1, L2, L5
- Excellent performance at 4G/LTE and 5G (Band 71)
- Elements: Precision GPS/GNSS, MiMo 4G/5G Cellular, MiMo Wi-Fi
- High Gain at all frequencies for maximum connection speeds
- Vehicular Rated for Mobile (IP67 rated)
- Easy to install (just one, 7/8" hole)
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Compatible with Cradlepoint Modem / Gateway / Router IBR900, R1900
- Compatible with Sierra Wireless AirLink RV55
Documents
Specifications
SKU | RBDMP55WW17SSSRRB |
---|---|
Manufacturer Part Number | RBDM-P55WW-17-SSSRR-B |
Manufacturer | RFMAX |
Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
Working Frequency | 617-960 MHz |
Gain | 3.3 dBi |
Working Frequency 2 | 1710-6000 MHz |
Gain 2 | 5.2 dBi |
Working Frequency 3 | 2400-2500 MHz |
Gain 3 | 5.4 dBi |
Working Frequency 4 | 5150-5925 MHz |
Gain 4 | 6.3 dBi |
Working Frequency 5 | GNSS L1, L2, L5 Patch |
Antenna Style | "Brick" Multi-Element Antenna |
Polarity | Linear |
Bands | Multi |
SISO or MIMO | MIMO |
Directional or Omni | Omnidirectional |
Impedance | 50 Ohm |
VSWR: < X: 1 | <2.2:1 (Cell) <2.0:1 (WiFi & GPS) |
Horizontal/Azimuth Beamwidth | 360 |
Plenum/Fire Rating | UV Stable, UL94 Radome |
No Of Elements | 5 |
Height/Length (inches) | 7.9 |
Height/Length (mm) | 202 |
Width (inches) | 3.4 |
Width (mm) | 88 |
Thickness/Diameter (inches) | 1.8 |
Thickness/Diameter (mm) | 45 |
Weight (lbs) | 2 |
Material | UV Stable, UL94 Radome |
Operating Temp (celsius) | -40 to +85 C |
Mount Style | Direct Mount |
Color | Black |
Number of Cables | 5 |
Cable Length (inches) | 204 |
Connector 1 | SMA-Male |
Connector 2 | RP SMA-Male |
IP Rating | IP67 |
OK for Outdoor Use | Yes |
Vehicular | Yes |
Ground Plane Required | No |
Product Condition | New |
