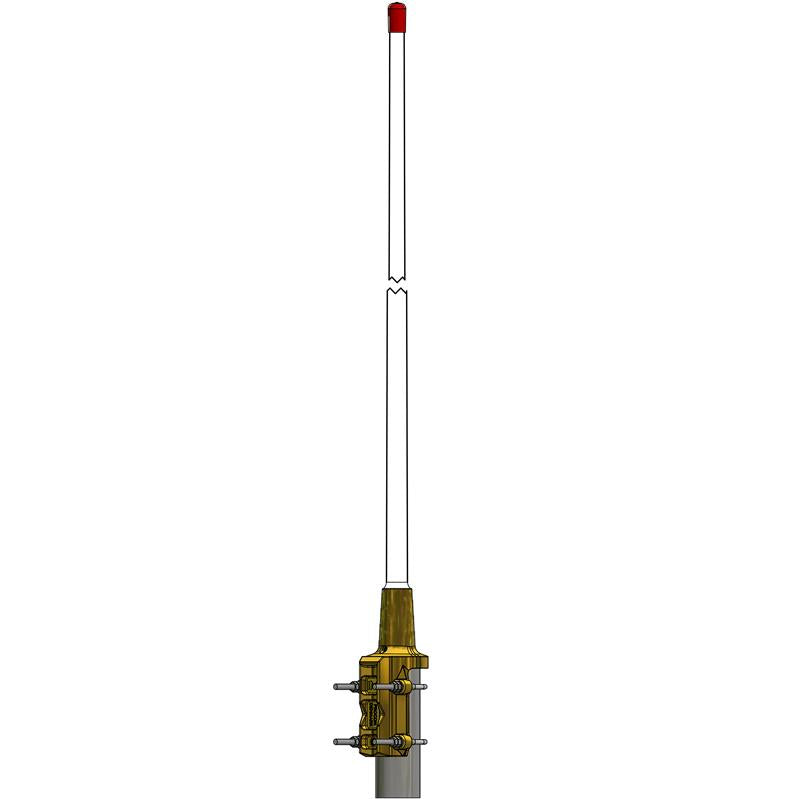

440-470 MHz Fiberglass Omni Base Station Antenna with N Female 5 dBi Gain | ROSA-450-3-SNF

  • $195.00
    Precio unitario por

ROSA-450-3-SNF


¡Solo 29 restantes!
Plazo de entrega para cantidades superiores a 29 :  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

440-470 MHz Fiberglass Omni Base Station Antenna with N Female 5 dBi Gain | ROSA-450-3-SNF

More InfoDocumentsSpecifications Reviews

The RFMAX ROSA-450-3-SNF is a high-performance UHF base station and marine antenna designed for reliable communications across the 440–470 MHz band. Offering 3 dBd (5.2 dBi) gain, low VSWR (<1.5:1), and a rugged fiberglass construction, it delivers superior signal stability and all-weather durability. Ideal for public safety, transportation, utilities, and industrial networks, this IP66-rated, DC-grounded antenna ensures long-term performance in harsh environments. Easy to install with its N-Female connector and lightweight aluminum mounting bracket, the ROSA-450-3-SNF is built for mission-critical UHF communication systems.
*Mounting Bracket Included*



More Information

The RFMAX ROSA-450-3-SNF is a rugged, medium-duty UHF base station and marine antenna engineered for mission-critical voice and data communications across the 440–470 MHz band. With 3 dBd (5.2 dBi) gain and a low VSWR < 1.5:1, this high-efficiency collinear omnidirectional antenna delivers exceptional coverage, signal stability, and network uptime for demanding RF environments. Built with a polyurethane-coated fiberglass radome and epoxy-coated aluminum bracket, this antenna ensures long-term corrosion resistance, even in salt, humidity, and high-wind marine or outdoor deployments. Its DC-grounded design minimizes static buildup and lightning-related noise, providing consistent performance for public safety, transportation, utilities, and industrial communication networks. Easy to mount on 16–54 mm (0.63–2.13 in) mast tubes, the ROSA-450-3-SNF includes a lightweight, multipurpose mounting bracket and direct N-Female connector, offering quick installation and reliable mechanical integrity for years of field operation.

Documents


Specifications

SKU ROSA4503SNF
Manufacturer Part Number ROSA-450-3-SNF
Manufacturer RFMAX
Antenna Category UHF (380-600 MHz)
Working Frequency 440-470 MHz
Antenna Style Omnidirectional Base Station Antenna
Polarity Vertical
Directional or Omni Omni Directional
Impedance 50 ohms
Max Input Power (W) 150 Watts
VSWR: < X: 1 <1.5:1
Height/Length (inches) 59.45
Height/Length (mm) 1510.03
Thickness/Diameter (inches) .93 (Dia. At Bottom)
Thickness/Diameter (mm) 23.62
Weight (lbs) 2.9 lbs
Material Polyurethane-coated fiberglass
Operating Temp (celsius) -35 to +70 C
Color White
Connector 1 N-Female
Includes Includes Mounting Kit
IP Rating IP66
OK for Outdoor Use Outdoor
Product Condition New
