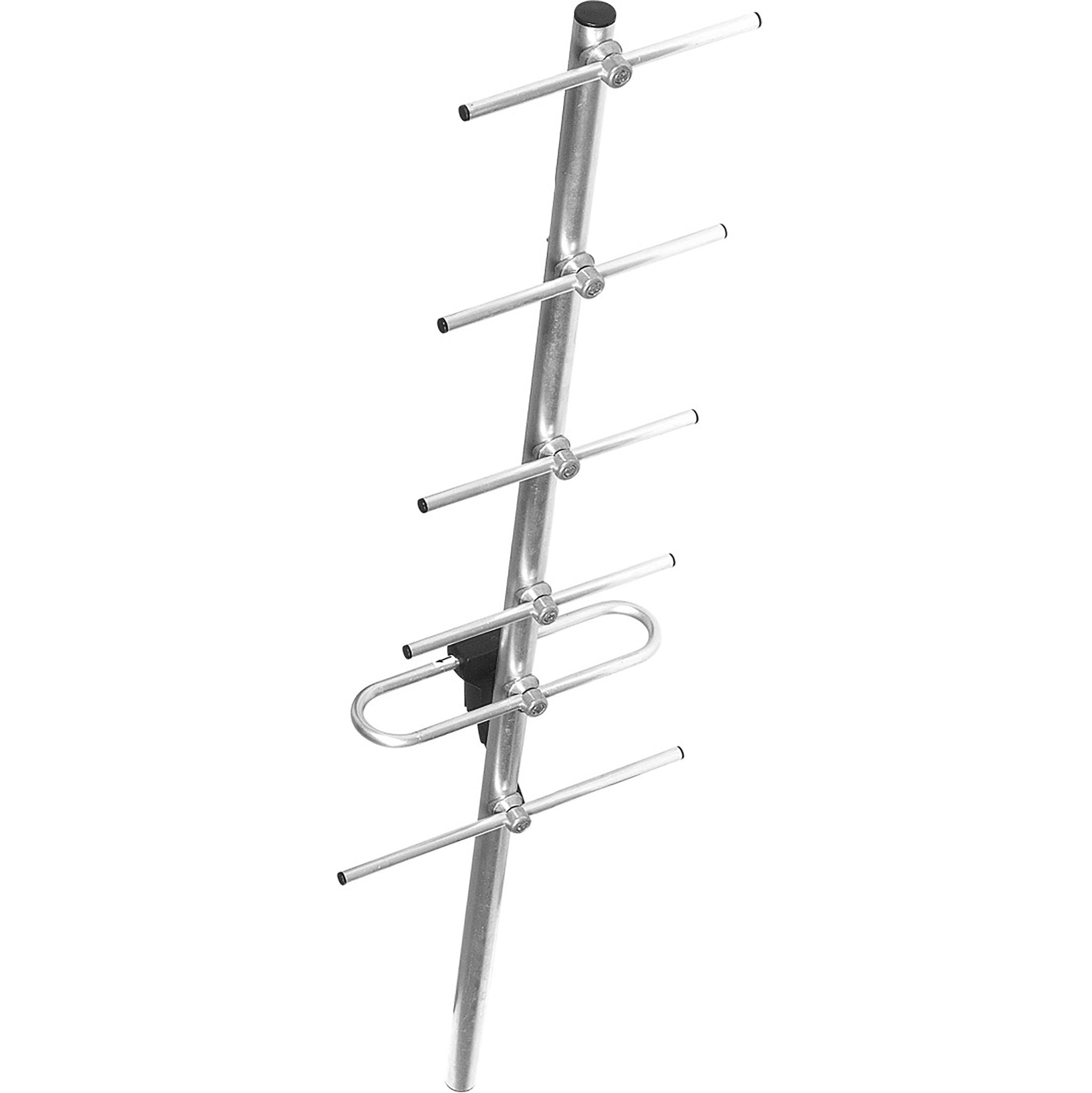

420-470 MHz 6 Element 10.7 dBi Yagi Antenna with 10 feet of cable and N-Female Connector |RY450-9-6-SNF

  • $273.88
    Precio unitario por

RY450-9-6-SNF


¡Solo 15 restantes!
Plazo de entrega para cantidades superiores a 15 :  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

420-470 MHz 6 Element 10.7 dBi Yagi Antenna with 10 feet of cable and N-Female Connector |RY450-9-6-SNF

More InfoDocumentsSpecifications Reviews

The RFMAX RY450-9-6-SNF is a high-gain, 6-element UHF Yagi antenna optimized for directional communications across the 420–470 MHz band. Delivering 10.7 dBi (8.5 dBd) gain with a VSWR below 1.5:1, this rugged, wideband antenna ensures exceptional signal strength and low noise for LMR, SCADA, telemetry, and remote monitoring systems. Built for durability, it features IP68 weather protection, 150 W power handling, and DC grounding for static protection. Ideal for public safety, industrial IoT, and point-to-point links, the RY450-9-6-SNF provides reliable, long-range performance in harsh environmental conditions.
*Includes Mounting Bracket*



More Information

The RFMAX RY450-9-6-SNF is a premium 6-element UHF Yagi antenna designed to deliver exceptional directional performance, long-range connectivity, and high-gain RF coverage across the 420–470 MHz frequency band. Engineered for public safety, LMR (Land Mobile Radio), SCADA control systems, industrial telemetry, and wireless infrastructure, this antenna ensures stable, high-efficiency communication in mission-critical and remote applications. Featuring 10.7 dBi (8.5 dBd) gain with a VSWR below 1.5:1, the RY450-9-6-SNF provides strong signal focus, reduced interference, and superior front-to-back isolation (>16 dB) for improved link quality and range. Its directional radiation pattern and 150 W power rating make it ideal for base stations, repeater systems, and point-to-point communication links requiring consistent performance in high-demand RF networks. Built for endurance, the RY450-9-6-SNF incorporates rugged aluminum elements, zinc-galvanized hardware, and a polyurethane-sealed balun for superior weather resistance. Rated IP68 and tested to withstand 160 km/h winds, this antenna performs flawlessly in extreme outdoor environments including industrial sites, coastal regions, and mountaintop installations. All metallic parts are DC-grounded to mitigate lightning and static buildup, ensuring long-term reliability and system safety. With its combination of high gain, wideband performance, and rugged construction, the RFMAX RY450-9-6-SNF stands out as the go-to solution for professionals deploying UHF telemetry, industrial IoT networks, public safety systems, and long-distance RF communication infrastructure. Engineered for precision, performance, and durability, this antenna delivers reliable signal strength where it matters most.

Documents


Specifications

SKU RY45096SNF
Manufacturer Part Number RY450-9-6-SNF
Manufacturer RFMAX
Antenna Category UHF (380-600 MHz)
Working Frequency 420-470 mHz
Antenna Style Yagi Antenna
Polarity Linear (Vertical or Horizontal)
Directional or Omni Directional
Impedance 50 ohms
Max Input Power (W) 150 Watts
VSWR: < X: 1 <1.5:1
Front/Back Ratio (Db) >16dB
No Of Elements 6
Height/Length (inches) 50.39
Height/Length (mm) 1279.9
Weight (lbs) 4.41 lbs
Operating Temp (celsius) -35 to +70 C
Color Stainless
Connector 1 N-Female
Includes Includes Mounting Kit
IP Rating IP68
OK for Outdoor Use Outdoor
Product Condition New
