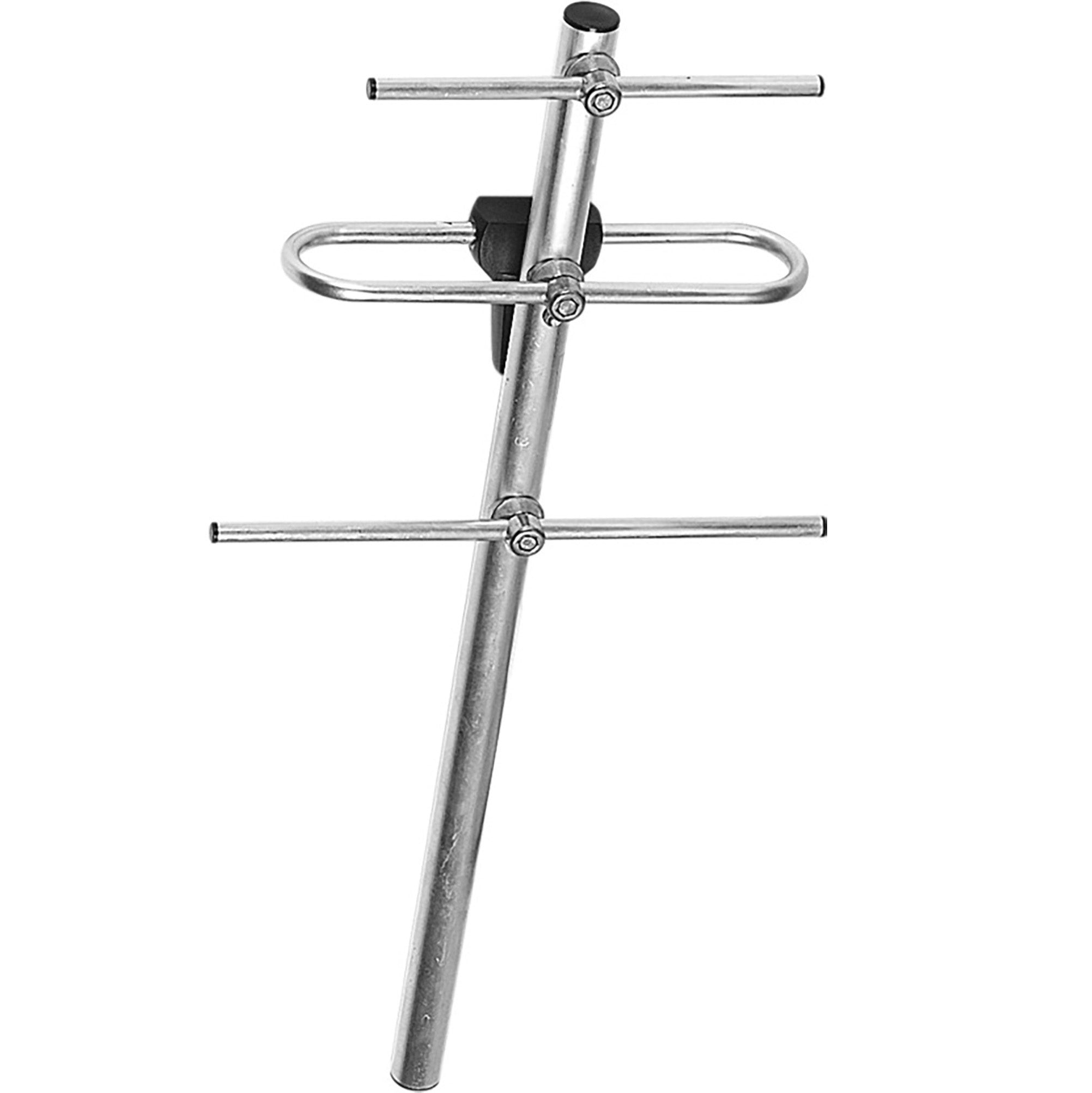

420-470 MHz 3 Element 8.2 dBi Yagi Antenna with 10 feet of cable and N-Female Connector |RY450-6-3-SNF

  • $167.44
    Precio unitario por

RY450-6-3-SNF


¡Solo 29 restantes!
Plazo de entrega para cantidades superiores a 29 :  Ships in 8-10 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

420-470 MHz 3 Element 8.2 dBi Yagi Antenna with 10 feet of cable and N-Female Connector |RY450-6-3-SNF

More InfoDocumentsSpecifications Reviews

The RFMAX RY450-6-3-SNF is a high-gain, 3-element UHF Yagi antenna designed for directional communications across the 420–470 MHz band. Delivering 8.2 dBi gain, <1.5:1 VSWR, and a 150 W power rating, it provides reliable long-range performance for LMR, SCADA, telemetry, and remote monitoring systems. Constructed with durable stainless components and rated IP68, this antenna ensures exceptional performance in harsh environments. With an integrated 10 ft RG-213 cable and N-Female connector, the RY450-6-3-SNF is ideal for industrial wireless, public safety networks, base stations, and point-to-point UHF links requiring precision and durability.
*Mounting Bracket Included*



More Information

The RFMAX RY450-6-3-SNF is a high-performance 3-element UHF Yagi antenna engineered for superior directional coverage and dependable RF performance across the 420–470 MHz frequency range. Designed for public safety communications, land mobile radio (LMR), SCADA networks, industrial telemetry, and remote monitoring applications, this antenna delivers an impressive 8.2 dBi (6 dBd) gain, providing extended range and strong signal penetration for mission-critical communication systems. Built to excel in both indoor and outdoor installations, the RY450-6-3-SNF features a rugged aluminum construction, zinc-galvanized hardware, and IP68-rated weather protection, ensuring long-term durability in even the harshest environments. Its low VSWR (<1.5:1) guarantees minimal reflection and maximum power transfer, resulting in highly efficient, low-noise operation ideal for base stations, repeater sites, and point-to-point RF links. With a 150 W power rating, DC-grounded elements for lightning protection, and a front-to-back ratio exceeding 15 dB, the RY450-6-3-SNF ensures clear, interference-free communication—making it the preferred choice for industrial automation, utility networks, oil and gas telemetry, and public safety agencies seeking reliable, long-distance wireless coverage.

Documents


Specifications

SKU RY45063SNF
Manufacturer Part Number RY450-6-3-SNF
Manufacturer RFMAX
Antenna Category UHF (380-600 MHz)
Working Frequency 420-470 mHz
Antenna Style Yagi Antenna
Polarity Linear (Vertical or Horizontal)
Directional or Omni Directional
Impedance 50 ohms
Max Input Power (W) 150 Watts
VSWR: < X: 1 <1.5:1
Front/Back Ratio (Db) >15dB
No Of Elements 3
Height/Length (inches) 29.13
Height/Length (mm) 739.9
Weight (lbs) 2.2 lbs
Operating Temp (celsius) -35 to +70 C
Color Stainless
Connector 1 N-Female
Includes Includes Mounting Kit
IP Rating IP68
OK for Outdoor Use Outdoor
Product Condition New
