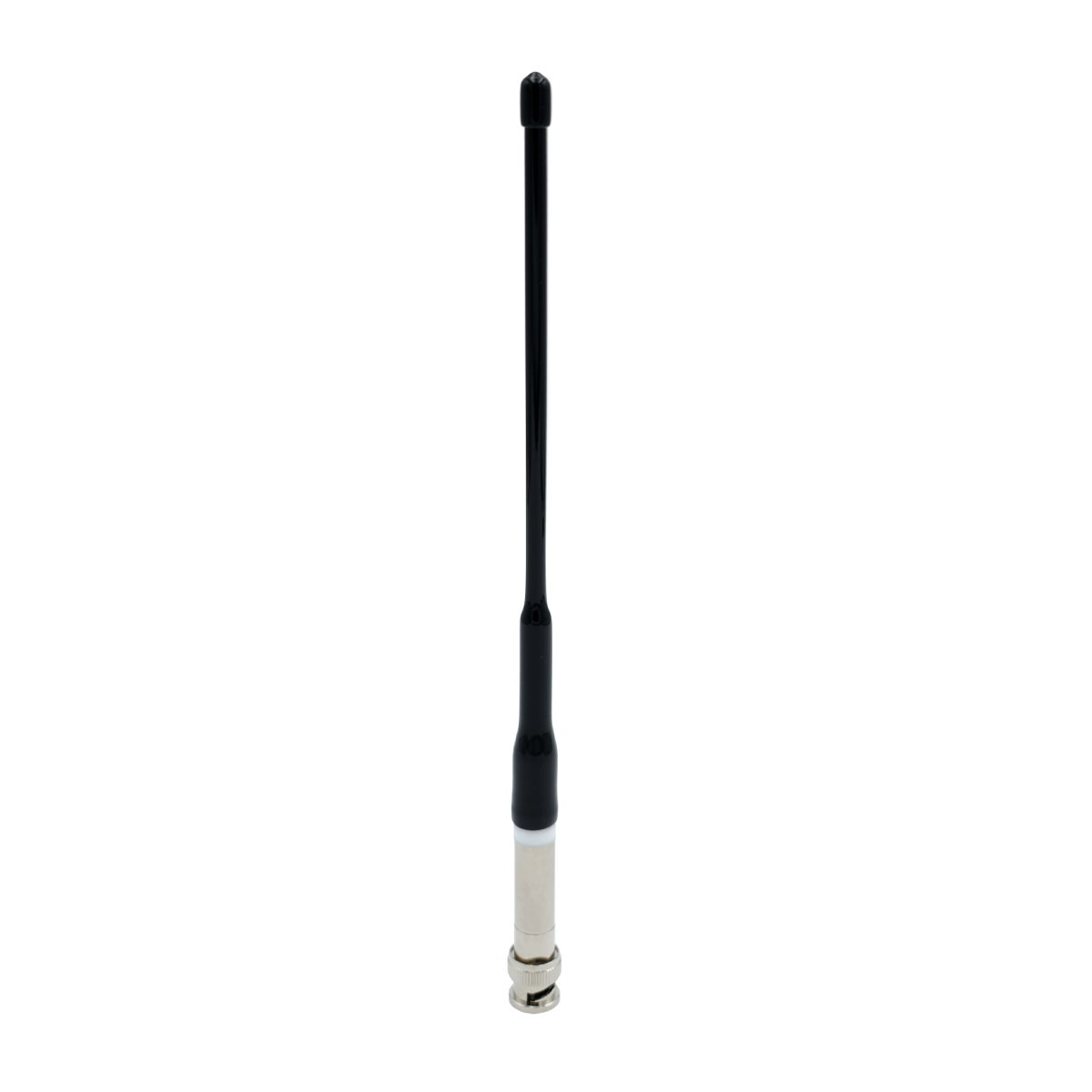

400-500 MHz UHF 1/2 Wave Flexible Antenna with BNC Connector | R3DAN-450-SBM

  • $59.43
    Precio unitario por

R3DAN-450-SBM


¡Solo 225 restantes!
Plazo de entrega para cantidades superiores a 225 :  Ships in 6-8 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

400-500 MHz UHF 1/2 Wave Flexible Antenna with BNC Connector | R3DAN-450-SBM

More InfoDocumentsSpecifications Reviews

The RFMAX R3DAN-450-SBM is a high-performance 1/2 wave base-loaded UHF antenna engineered for reliable two-way radio communications across the 400-500 MHz band. Featuring a flexible whip design, this antenna delivers improved radiation efficiency and gain over traditional 1/4 wave solutions, enhancing signal strength and coverage in demanding environments. Designed with a BNC male connector for broad device compatibility, the R3DAN-450-SBM offers rugged durability, stable VSWR performance, and consistent operation across mobile and portable radio applications.



More Information


Documents


Specifications

SKU R3DAN450SBM
Manufacturer Part Number R3DAN-450-SBM
Manufacturer RFMAX
Antenna Category UHF (380-600 MHz)
Working Frequency 400-500 MHz
Antenna Style Blade/Stubby Antenna
Directional or Omni Omni Directional
Impedance 50 ohms
VSWR: < X: 1 <1.5:1
Height/Length (inches) 10.33
Height/Length (mm) 262.3
Thickness/Diameter (inches) 2.52
Thickness/Diameter (mm) 13.8
Operating Temp (celsius) -40 to +85
Color Black

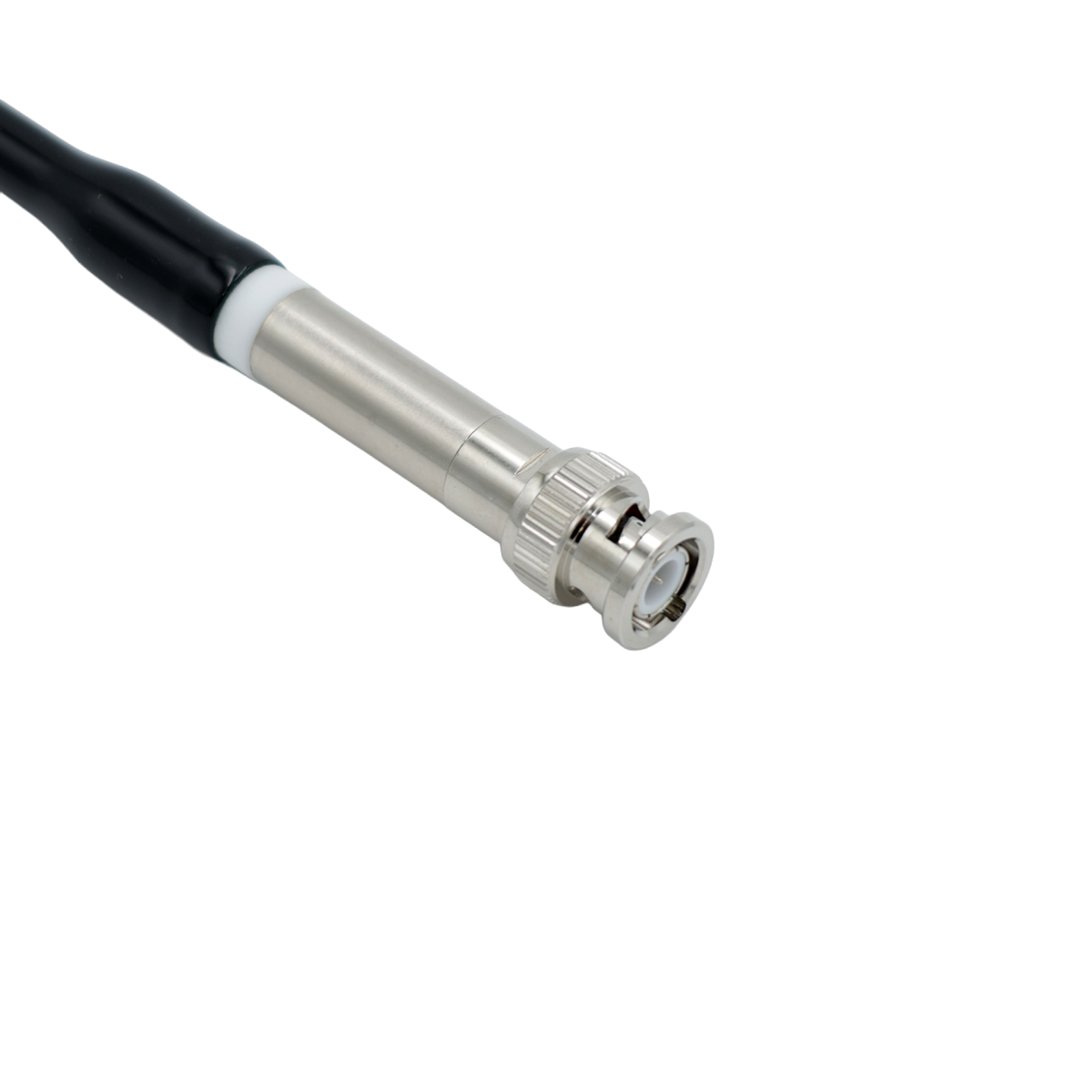

Connector 1 BNC Male
IP Rating IP65
OK for Outdoor Use Indoor/Outdoor
Ground Plane Required No
Product Condition New
