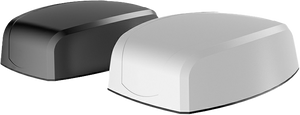

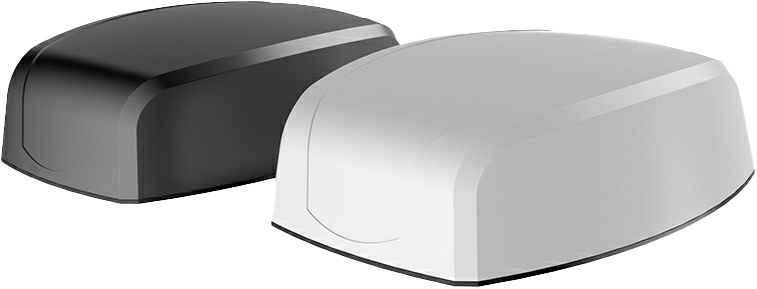

15-in-1 Antenna Low Profile Dome Style A 8x 5GNR, 6x WiFi-6E, 1x GNSS for Transit Applications, Black color | RDDM-G856W-1-S8S6S-B

  • $799.00
    Precio unitario por

RDDM-G856W-1-S8S6S-B


¡Solo 4 restantes!
Plazo de entrega para cantidades superiores a 4 :  Ships in 12-14 Weeks

Los gastos de envío se calculan en la pantalla de pagos.

15-in-1 Antenna Low Profile Dome Style A 8x 5GNR, 6x WiFi-6E, 1x GNSS for Transit Applications, Black color | RDDM-G856W-1-S8S6S-B

More InfoSpecifications Reviews

The RFMAX 15-in-1 Antenna, RDDM-G856W-1-S8S6S-B, is a wideband 5G-FR1, WiFi-6E low profile, direct mount antenna. In a rugged, IP69, attractive low profile radome measuring 8.19 x 6.5 inches and only 2.7 inches tall this antenna is a perfect solution for transit applications.



More Information

  • RFMAX 15-in-1 Antenna Size: 5.98 x 6.48 x 3 Inches

  • 1 Foot of cable with SMA Male on all leads

  • Wideband Elements, 617-7200 MHz

  • Elements: 1x GPS/GNSS, 8x8 MiMo 4G/5G Cellular, 6x WiFi-6E

  • High Gain at all frequencies for maximum connection speeds

  • Vehicular Rated for Mobile (IP69 rated)

  • Easy to install (just one, 7/8" hole)

  • Approved for use with all major carriers: AT&T, Verizon, Sprint


Specifications

SKU RDDMG856W1S8S6SB
Manufacturer Part Number RDDM-G856W-1-S8S6S-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 617-960
Gain 3 dBi
Working Frequency 2 1710-7200
Gain 2 7 dBi
Working Frequency 3 2400-2500
Gain 3 7 dBi
Working Frequency 4 5800-6000
Gain 4 7 dBi
Working Frequency 5 7000-7200
Gain 5 9 dBi
Antenna Style "Dome" Multi-Element Antenna
SISO or MIMO MIMO
Directional or Omni Omnidirectional
Impedance 50 Ohms
Max Input Power (W) 25 W
VSWR: < X: 1 <2:1
No Of Elements 15
Cable Length - PT195 8.19
Width (inches) 6.5
Width (mm) 166
Weight (lbs) 2.5
Material ASA
Operating Temp (celsius) -50 to +75
Color Black
Connector Type SMA-Male
Cable Type LMR100 Equivalent
Number of Cables 15
Cable Length (inches) 12
Connector 3 SMA-Male
IP Rating IP69
OK for Outdoor Use Outdoor
Vehicular Yes, 7/8" mounting hole required
Ground Plane Required Yes
Product Condition New
