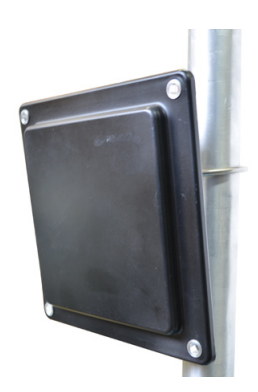

HD7-915RCP-PM-BLK: Mobile Mark IP67 RHCP 8.25x8.25 inch RFID antenna with 7 dBic gain & N female connector for high vibration FCC US 902-928 MHz. -40 C to +85 C. Pole mount included

  • $326.00
    Unit price per

HD7-915RCP-PM-BLK


0 in stock. Subject to factory lead time
Lead time:  Ships in 4-6 Weeks

Shipping calculated at checkout.

HD7-915RCP-PM-BLK: Mobile Mark IP67 RHCP 8.25x8.25 inch RFID antenna with 7 dBic gain & N female connector for high vibration FCC US 902-928 MHz. -40 C to +85 C. Pole mount included

More InfoDocumentsSpecifications Reviews

The HD7 Series antennas are circularly polarized, US models are RHCP (Right Hand Circularly Polarized) and European models are LHCP (Left hand Circularly Polarized). They can be mounted in any setting, including directly against metal, and can be used indoors or outdoors. These antennas are compact and aesthetically pleasing, measuring only 8.25” H x 8.25” W x .75” D (21 cm x 21 cm x 1.9 cm). Pole mount Included.



More Information

The HD7 Series antennas are circularly polarized, US models are RHCP (Right Hand Circularly Polarized) and European models are LHCP (Left hand Circularly Polarized). Because of the circular polarization, the orientation of the RFID tag antenna will not affect the performance of readers. With 7 dBic gain, these antennas provide significant performance improvements over a micro-sized patch.

They can be mounted in any setting, including directly against metal, and can be used indoors or outdoors. Please note that the integral N Female connector is mounted on the back of the antenna.

The HD7 antennas are compact and aesthetically pleasing, measuring only 8.25” H x 8.25” W x .75” D (21 cm x 21 cm x 1.9 cm). Not only is the radome attractive, but it is also the toughest RFID antenna that we have designed and produced to date. The antennas are provided with 4 corner holes with metal reinforcing bushings for mounting flush to a surface. This mounting style provides the most versatile mounting options for this product while maintaining the impact ability. The HD7 Series has a DC shorted front end and is compatible with antenna sensing circuits found in the current generation of RFID readers.


Documents


Specifications

SKU HD7915RCPPMBLK
Manufacturer Part Number HD7-915RCP-PM-BLK
Manufacturer Mobile Mark
Antenna Category RFID (865-928 MHz)
Working Frequency 902-928 MHz
Gain 7 dBic
SISO or MIMO SISO
Impedance 50 ohm
Max Input Power (W) 20
VSWR: < X: 1 < 1.5:1
Axial Ratio 3 dB
Horizontal/Azimuth Beamwidth 75
Vertical/Elevation Beamwidth 75
Height/Length (inches) 8.25
Height/Length (mm) 210
Width (inches) 8.25
Width (mm) 210
Thickness/Diameter (inches) 0.75
Thickness/Diameter (mm) 19
Weight (lbs) 1.5
Operating Temp (celsius) -40°C to +85°C
Mount Style Permanent
Color Black
Connector 1 N-Female
IP Rating IP67
Product Condition New
