3G/4G/LTE DiPole Antenna for Sierra Wireless AirLink & Cradlepoint IBR Series. 6001110, 1810075 & 170649-000 | RDA698/2700SSM

More InfoDocumentsSpecifications Reviews

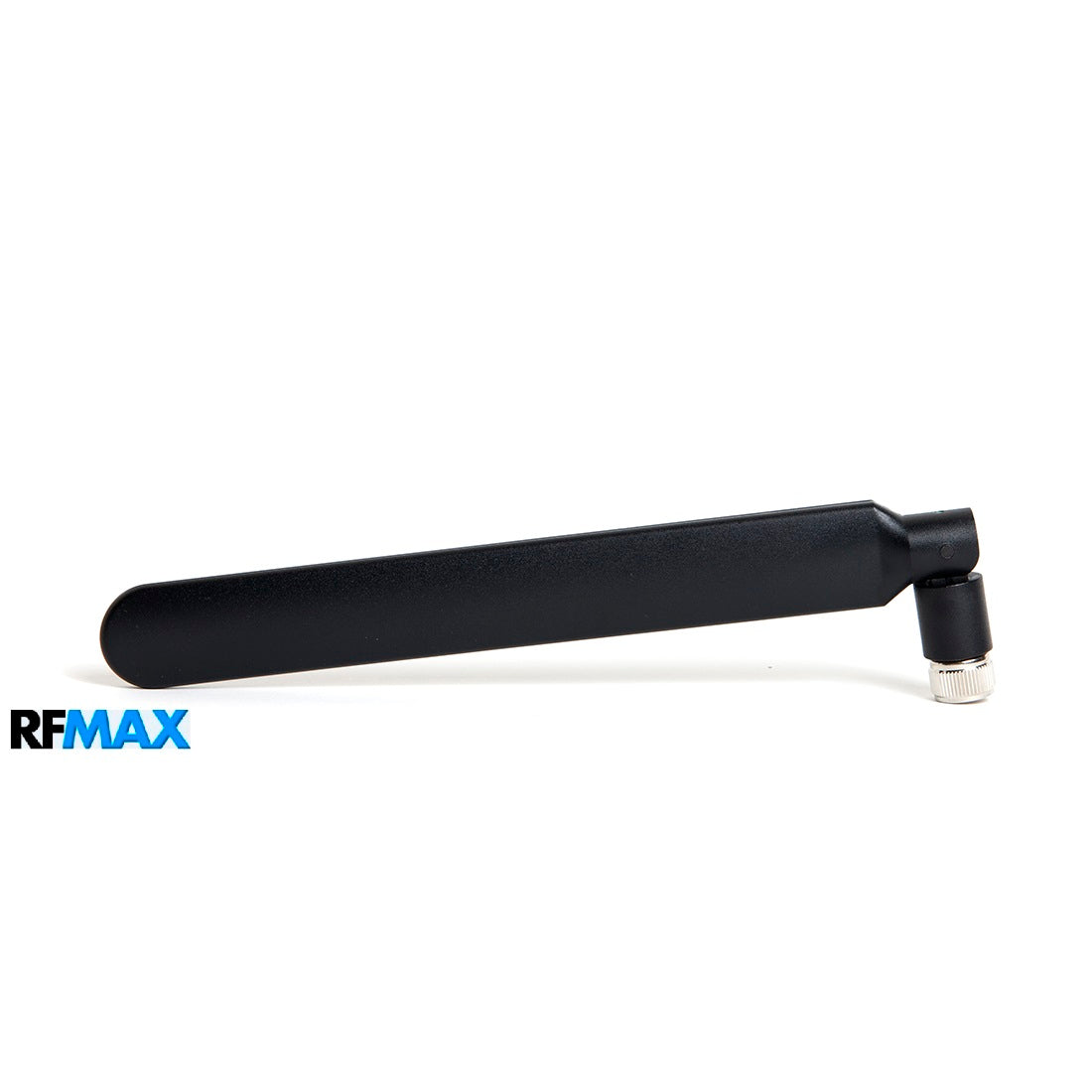

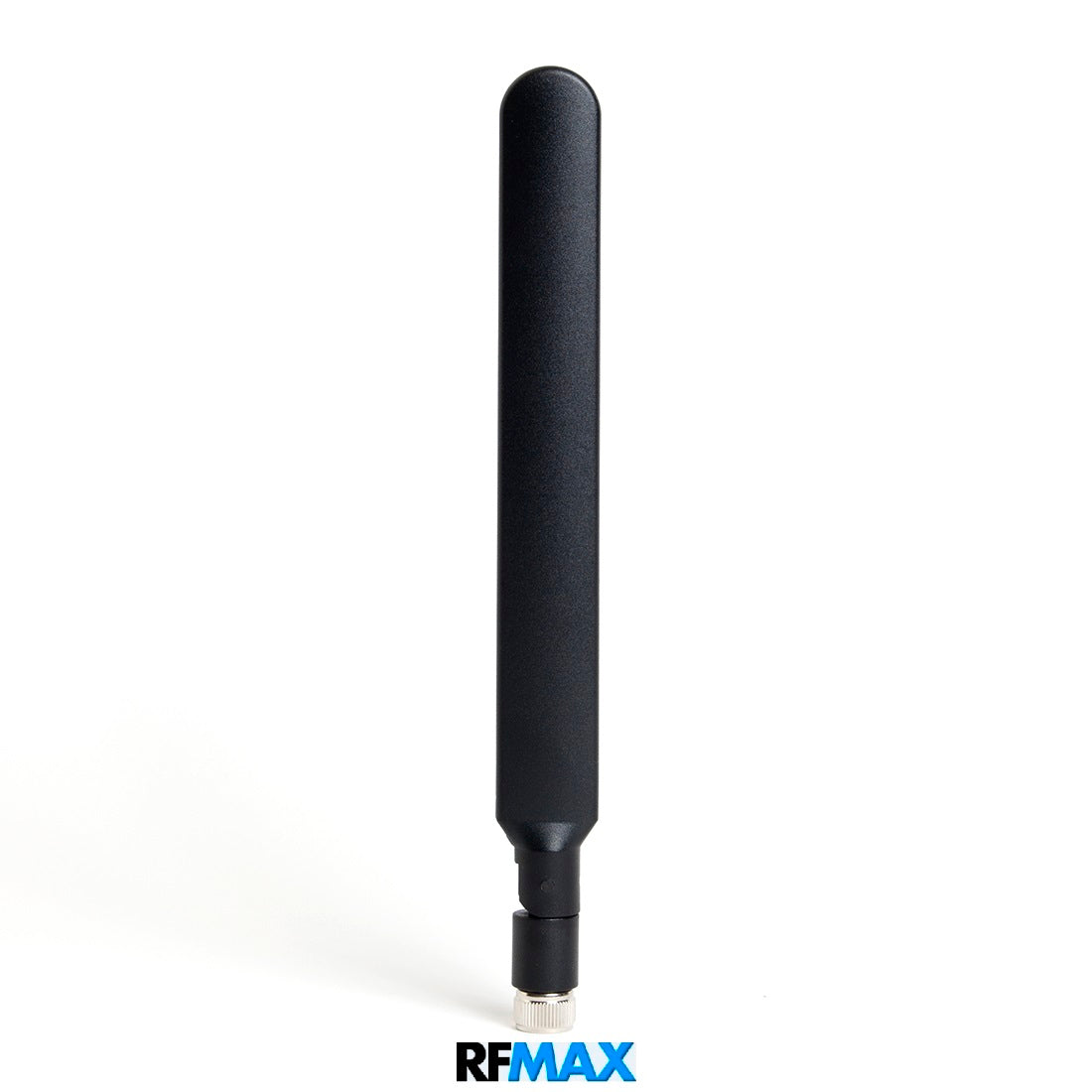

The RDA698/2700SSM 3G/4G-LTE is a blade, or paddle style dipole antenna with right angle knuckle and SMA male connector for 3rd generation, 4th generation, and Long Term Evolution cellular modems, access points, routers and small base station applications. The unit is 9 inches long and provides 2 dBi of gain across the full range of freqencies of 698-2700 Mhz. Equivalent to: CELL-ANTHB, W1905, 1810075, DBA6927C1-FSMAM, 170649-000, SPDA27400/270, TG.30.8113, 170649-000 & 931-1213-ND

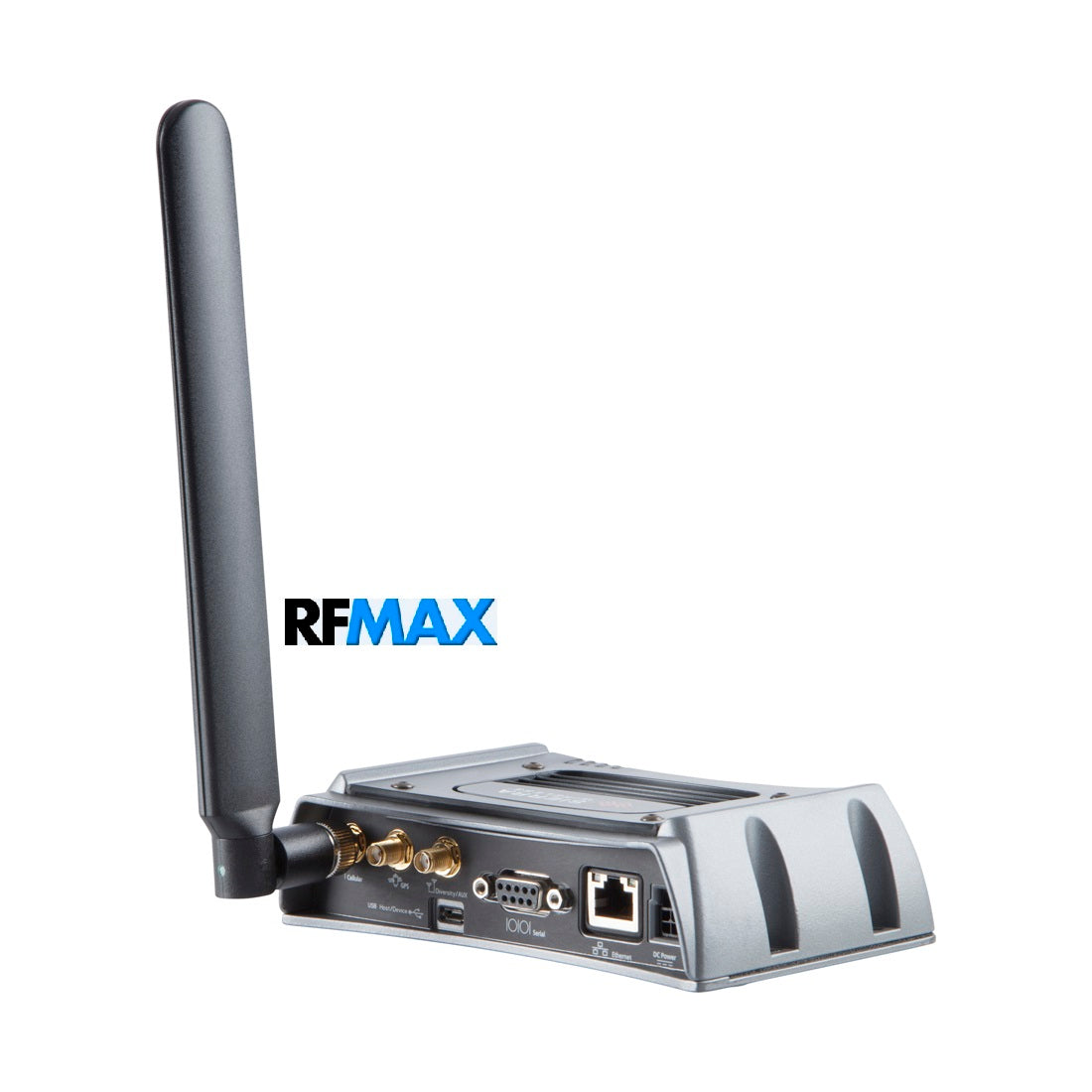

This model is the best antenna for use with Sierra Wireless AirLink: RV50, LS300, GX400, GX440, GX450 & LS300.  In addition, this antenna has been tested and approved for high-performance wtih Cradlepoint: IBR350, IBR600, IBR650, IBR900, IBR950, IBR1100 & IBR1150.

**Please Note: If you are going for Cellular Carrier approval with AT&T, Verizon, Sprint, Rogers, etc.) You should be using the "high-efficiency" antenna # RDA698/2700-1-SSM.  Link here for the RDA698/2700-1-SSM.

More Information

The RDA698/2700SSM is an RFMAX Hi-Gain Dipole Antenna for 698-2700 MHz 3G/4G/LTE cellular coverage with an articulating knuckle and standard SMA Male Connector. This blade, or paddle style antenna is designed for use with 3G and 4G/LTE cellular modems, access points, routers , gateways and small base station applications. The RDA698/2700SSM covers all AT&T, Verizon and Sprint legacy 3G bands, plus the 4G/LTE frequency ranges of 698-960/1710-2170/2500-2700 MHz providing omnidirectional radiation with a gain of 2 dBi.

The blade style package offers a right angle swivel provided in black plastic with dimensions of 7.72 inches long x 0.94 inches wide (196mm x 23.8 mm) in the right angle position. It is supplied with an SMA Male connector which mates with Sierra Wireless RV50, RV50x, GX400, GX440, GX450 & LS300 as well as all Cradlepoint modems: IBR350, IBR600, IBR650, IBR600B, IBR900, IBR950, IBR1100 & IBR1150


  • 3G-4G/LTE Blade Style DiPole Antenna
  • Opeates at 698-960/1710-2170/2500-2700 MHz
  • Up to 2 dBi High-Gain
  • Articulating Knuckle & Standard SMA Male connector
  • RoHS Compliant
  • Equivalent to: W1905, 1810075, DBA6927C1-FSMAM, 170649-000 and TG.30.8113, 170649-000 & 931-1213-ND

Product Applications

  • 3G/4G/LTE Cellular Modem, Router, Hub, Gateway or Access point
  • Small Cellular Base Stations
  • Femto Cells
  • SOHO Routers
  • This is not suitable for 2.4 / 5 GHz WiFi

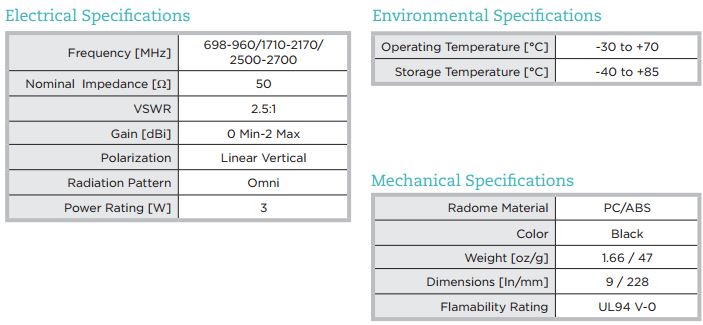

Manufacturer Part Number RDA698/2700SSM
Manufacturer RFMAX
Antenna Category 3G/4G/LTE (698-2700 MHz)
Working Frequency 698-960
Gain 2 dBi
Working Frequency 2 1710-2170 MHz
Gain 2 2 dBi
Working Frequency 3 2500-2700
Gain 3 2 dBi
Antenna Style Blade or Stubby Antennas
Polarity Vertical
Bands Multi

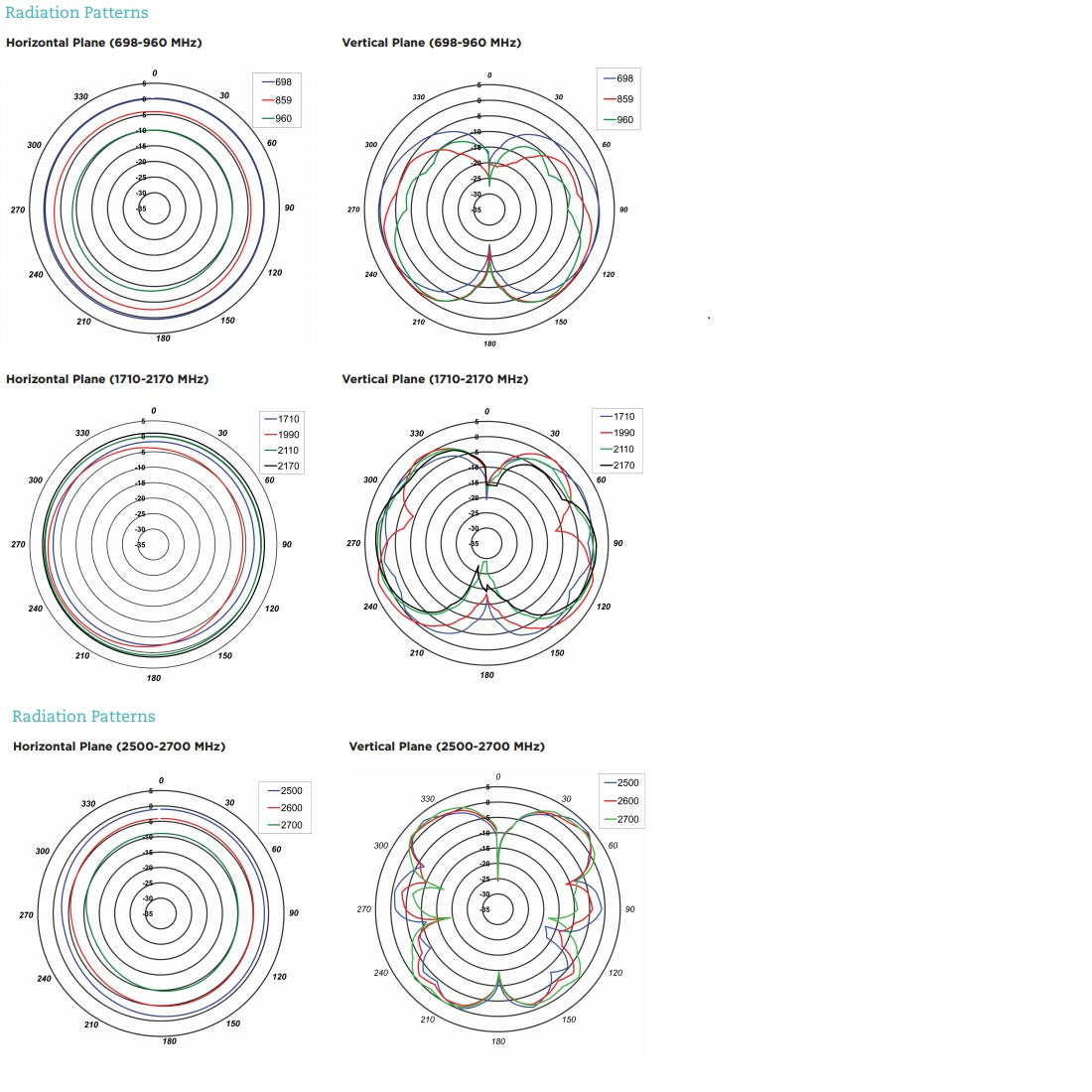

Directional or Omni Omnidirectional
Impedance 50
Max Input Power (W) 3
VSWR: < X: 1 2.5
Horizontal/Azimuth Beamwidth 360
Height/Length (inches) 9
Height/Length (mm) 228
Width (inches) 0.94
Width (mm) 23.8
Weight (lbs) 0.07 lbs
Material PC/ABS. UL94 V-0
Operating Temp (celsius) -30 to +70 C
Color Black
Connector Type Connector - Bottom
Connector 1 SMA-Male
Includes Articulating 90 degreee knuckle
Product Condition New
