MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for M2M & IoT Applications | RBMM-44-SS-6
MiMo 3G/4G/LTE Magnetic Mount Cellular Antenna for M2M & IoT Applications | RBMM-44-SS-6More InfoDocumentsSpecifications Reviews
This product is EOL... Click Here to Upgrade to RBMM-55-SS-6 at no additional cost: this is the NEW revision with 5G/4G/LTE compatible antenna elements and better performance.

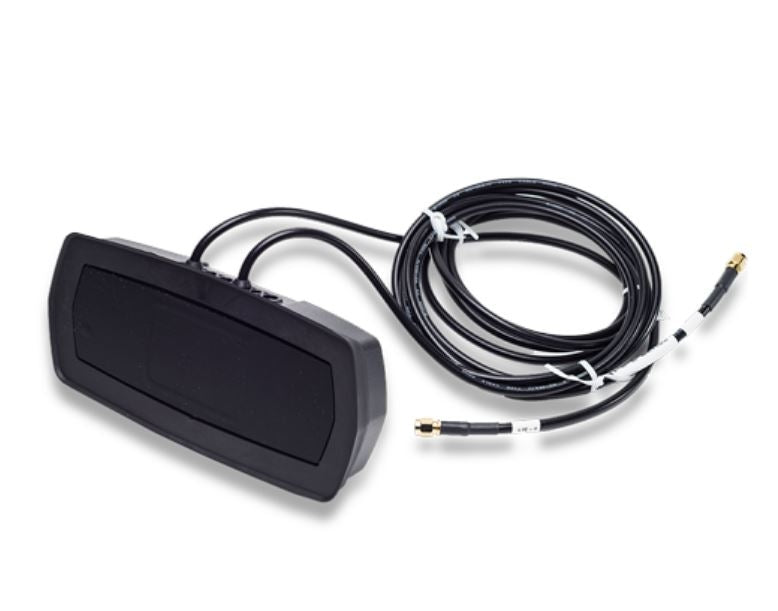

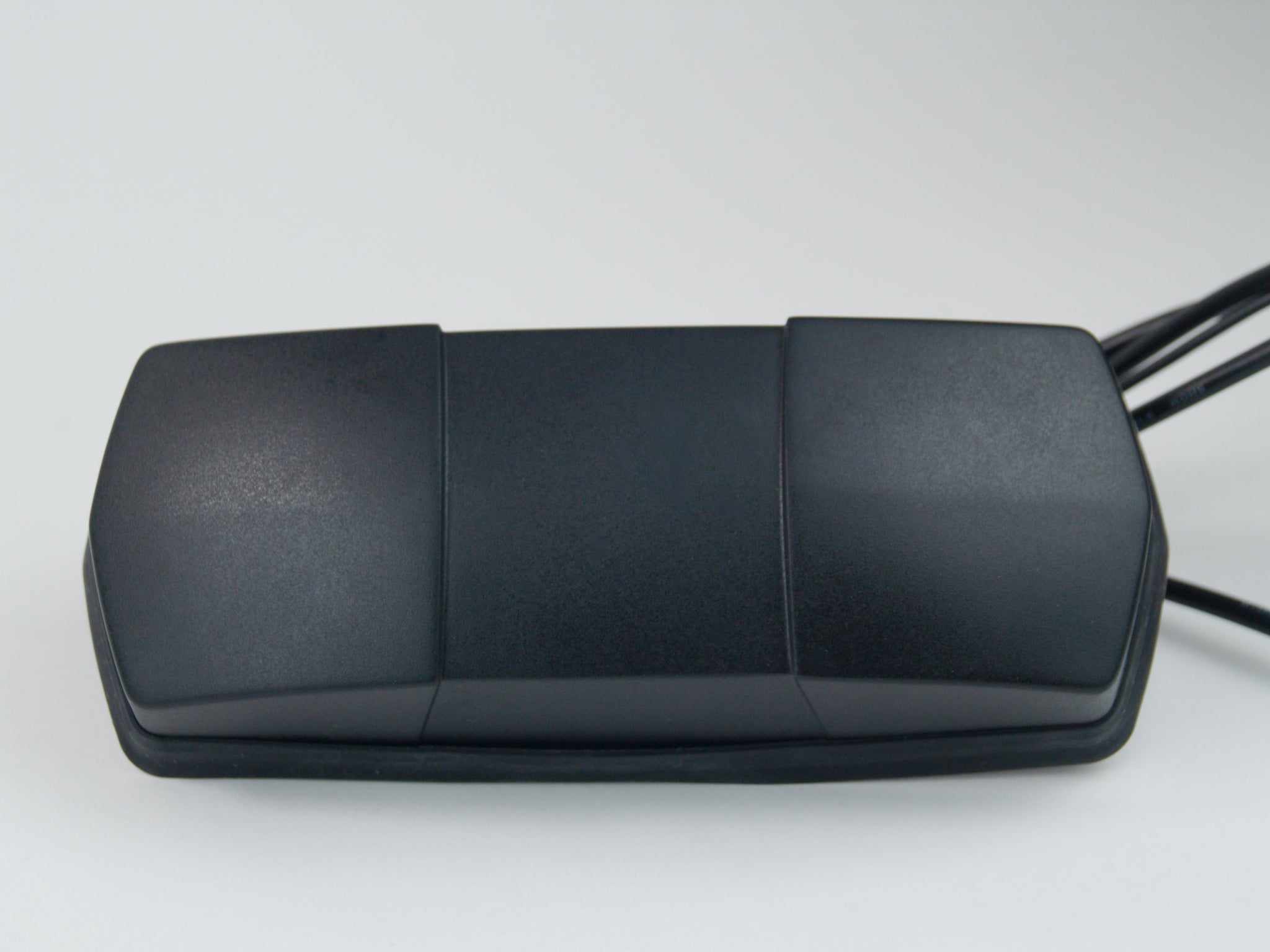

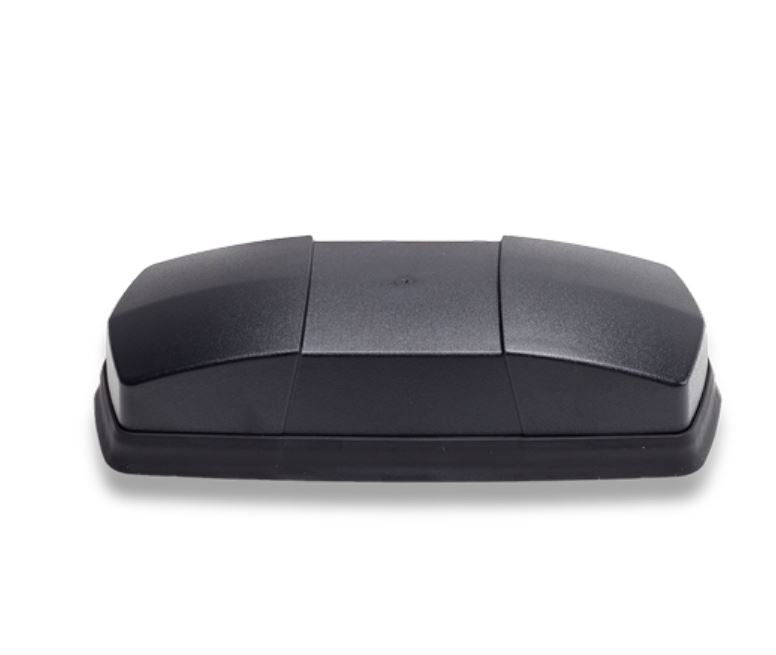

As always these "Brick" antennas are high-performance, ultra-rugged mag-mount antenna designed for M2M machine-to-machine applications like Digital Signage Lottery and ATM machines. The unit measures 7.9 x 3.5 inches, with a height of just 1.8 inches. The *all new* NEW RBMM-55-SS-6 antenna was designed to exceed all 3G/4G/LTE specs from the major North American cellular carriers including AT&T, Verizon, Sprint & T-Mobile AND cover the new Band 71 & CBRS bands for 5G!
This unit was designed for use with MiMo 3G, 4G/LTE or 5G cellular modem gateways from Cradlepoint, Sierra Wireless, and PepLink. The "Brick" antenna is easy to install using the high-pull strength magnetic mounting which resists would-be vandals and is IP rated for year-round indoor or outdoor use. The super-efficient wireless technology built into these antennas allows for FAST access to the cellular network. This ensures that ATM machines are able to clear bank transactions in seconds, and digital signage is able to upload & download media content at maximum speed. The antenna includes dual 6 foot long, low loss cables with SMA male connectors, and is also available in PERMANENT mount/thru-hole.
Optimized for Cradlepoint IBR200, IBR600, Sierra Wireless RV50, Digi WR11, Digi WR31 etc.
- RFMAX "Brick" Antenna
- Size: 7.9 x 3.4 x 1.8 Inches
- Same footprint as Antenna Plus, but lower profile
- Out-performs all similar antennas including Ventus CDA & CQA
- Elements: Dual 3G-4G Cellular / MiMo LTE
- High Gain at all frequencies for maximum connection speeds
- Designed for Indoor or Outdoor Installations (IP65 rated)
- Easy to install Magnetic Mounting, Rugged & Vandal Resistant
- Approved for use with all major carriers: AT&T, Verizon, Sprint
- Optimized for Cradlepoint IBR200, IBR600, Sierra Wireless RV50, Digi WR11, Digi WR31 etc.
|Manufacturer Part Number||RBMM-44-SS-6|
|Antenna Category||3G/4G/LTE (698-2700 MHz)|
|Working Frequency||698-960 MHz|
|Gain||1.5 dBi @ 698-960 MHz|
|Working Frequency 2||1710-2690 MHz|
|Gain 2||4.5 dBi @ 1710-2690 MHz|
|Antenna Style||"Brick" Multi-Element Antenna|
|SISO or MIMO||MIMO|
|Directional or Omni||Omnidirectional|
|VSWR: < X: 1||<2:1|
|No Of Elements||2|
|Cable Length - PT195||6 Feet|
|Material||UV Stable, UL94 Radome|
|Operating Temp (celsius)||-40 to +85 C|
|Mount Style||Magnetic Mount|
|Number of Cables||2|
|Cable Length (inches)||72|
|OK for Outdoor Use||Yes|
|Ground Plane Required||No|
