1x GPS + 1x 4G/LTE + 1x WiFi with TNC Male Connectors | RWA-G4W-10-TTT
RWA-G4W-10-TTT
Shipping calculated at checkout.
1x GPS + 1x 4G/LTE + 1x WiFi with TNC Male Connectors | RWA-G4W-10-TTT
More InfoSpecifications ReviewsThe RFMAX RWA-G4W-10-TTT is a 3-in-1 combination1x GPS + 1x 4G/LTE + 1x WiFi with TNC Male Connectors
Compatible with Dell Latitude 5414, 7214, 5420, 5424, 7424, and 7414.
More Information

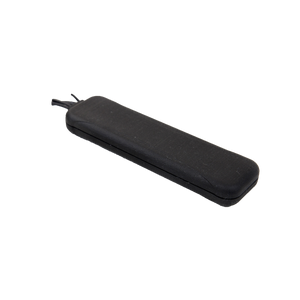

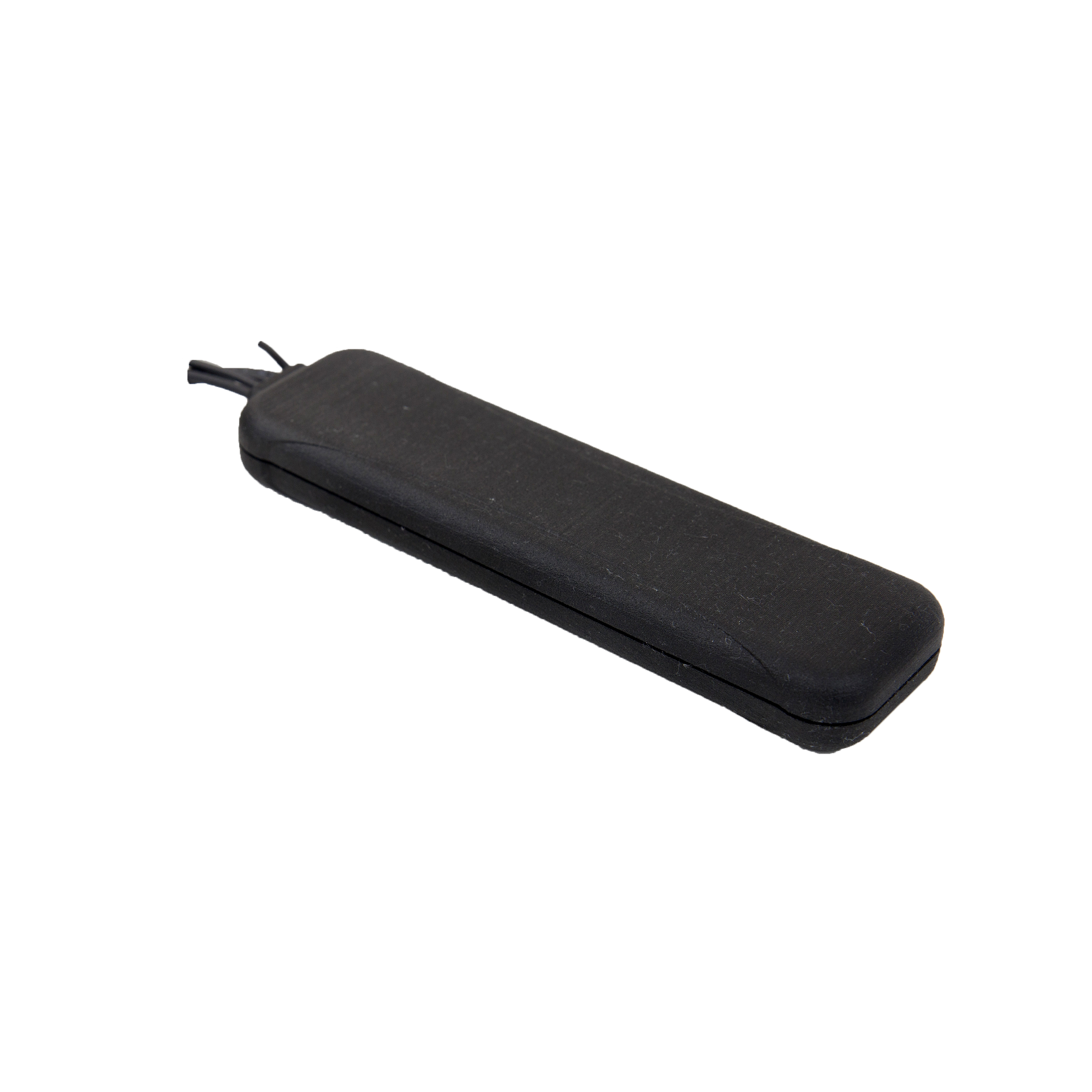

The RFMAX RWA-G4W-10-TTT is a 3-in-1 combination1x GPS + 1x 4G/LTE + 1x WiFi with TNC Male Connectors
Compatible with Dell Latitude 5414, 7214, 5420, 5424, 7424, and 7414.
We Also Recommend
RBDM-G55-17-SSS-B
3-in-1 Antenna, 1 x GPS/GNSS, 2 x 5G/4G LTE (MiMo), 17 Ft Long Cables | RBDM-G55-17-SSS-B
$198.00
$198.00
View Details
RDA-4G/5G-1-SSM
5G & 4G/LTE Swivel Blade Dipole Antenna. High Efficiency for AT&T, Verizon, T-Mobile & Sprint Includes Band 71 & CBRS, RDA-4G/5G-1-SSM
$20.22
$20.22
View Details
RSF-DB-G4W-SSS
3-in-1 Roof Mount Sharkfin Antenna For Cradlepoint & Sierra Wireless In-Vehicle Routers. GPS+Cellular+WiFi | RSF-DB-G4W-SSS
$145.00
$145.00
$118.00
$118.00
View Details
RSF-AW-G4W-SSS
3-in-1 White Adhesive Mount Sharkfin Antenna - GPS+3G/4G/LTE+WiFi with SMA Male | RSF-AW-G4W-SSS
$145.00
$145.00
View Details
RBDM-G55WW-17-SSSRR-B
4G/5G, 5-in-1 Antenna for Mobile Cellular Routers with 17 ft. Cables (Band 71, CBRS, WiFi6) RBDM-G55WW-17-SSSRR-B
$283.00
$283.00
View Details
RSK-698-SSM-12
No Drilling-Adhesive Mount Antenna for 4G/LTE Modems/Gateways.12 ft RG316 Cable & SMA | RSK-698-SSM-12
$41.25
$41.25
View Details
R2WA-G5W-10-TTT
Triple Pass Dashboard / Windshield Antenna, No Drill required | R2WA-G5W-10-TTT
$107.45
$107.45
View Details
Specifications
| SKU | RWAG4W10TTT |
|---|---|
| Manufacturer Part Number | RWA-G4W-10-TTT |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 695-2700 MHz (3G/4G/LTE) |
| Gain | 2 dBi |
| Working Frequency 2 | 1575.42 (GPS) |
| Gain 2 | 26 dB (LNA Gain) |
| Working Frequency 3 | 2.4-2.5/4.9-6.0 GHz |
| Gain 3 | 2 dBi |
| Antenna Style | "Wedge" Multi-Element Antenna |
| Polarity | Linear |
| Bands | Multi |
| SISO or MIMO | SISO |
| Directional or Omni | Omnidirectional |
| Impedance | 50 Ohms |
| Max Input Power (W) | 10 |
| VSWR: < X: 1 | 2:01 |
| Horizontal/Azimuth Beamwidth | 360 |
| Material | Black ASA Plastic |
| Operating Temp (celsius) | -40 to +85 C |
| Mount Style | Wedge/Adhesive |
| Color | Black |
| Cable Type | RG-174 |
| Number of Cables | 5 |
| Cable Length (inches) | 120 |

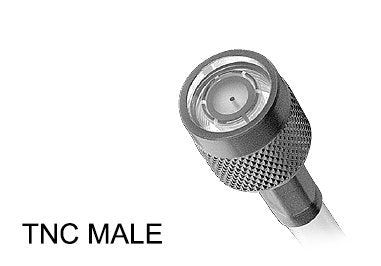

| Connector 1 | TNC-Male |
| Includes | Direct-Double Side Tape |
| IP Rating | IPx7 |
| Vehicular | Yes |
| Product Condition | New |
