Havis and Gamber Johnson mount Antenna with LTE, Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x TNC-Male Connectors | RM2D-G4W-18-TTT-B

RM2D-G4W-18-TTT-B
0 in stock. Subject to factory lead time
Lead time:  Ships in 2-4 Weeks
Shipping calculated at checkout.
Havis and Gamber Johnson mount Antenna with LTE, Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x TNC-Male Connectors | RM2D-G4W-18-TTT-B
Havis and Gamber Johnson mount Antenna with LTE, Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x TNC-Male Connectors | RM2D-G4W-18-TTT-B
Havis and Gamber Johnson mount Antenna with LTE, Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x TNC-Male Connectors | RM2D-G4W-18-TTT-B
Havis and Gamber Johnson mount Antenna with LTE, Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x TNC-Male Connectors | RM2D-G4W-18-TTT-B

Havis and Gamber Johnson mount Antenna with LTE, Wi-Fi, and GNSS Vehicular Antenna Direct Mount with 3x TNC-Male Connectors | RM2D-G4W-18-TTT-B

More InfoDocumentsSpecifications Reviews

Features:

  • 1 x Wideband Cellular/LTE Elements (MIMO)
  • 1 x 2.4 & 4.9-6 GHz Wi-Fi Element (MIMO)
  • 1 x GNSS Antenna
  • Leading LTE performance while in coexistence with multiple other embedded antenna technologies
  • Lower profile and smaller footprint than competing solutions
  • Must be mounted on metal
  • Direct Mount

Compatible with Dell Latitude 5414, 7214, 5420, 5424, 7424, and 7414.

More Information

Features:

  • 1 x Wideband Cellular/LTE Elements (MIMO)
  • 1 x 2.4 & 4.9-6 GHz Wi-Fi Element (MIMO)
  • 1 x GNSS Antenna
  • Leading LTE performance while in coexistence with multiple other embedded antenna technologies
  • Lower profile and smaller footprint than competing solutions
  • Must be mounted on metal
  • Direct Mount

Compatible with Dell Latitude 5414, 7214, 5420, 5424, 7424, and 7414.

Documents

RM2D-G4W-15-TTT-B Datasheet

We Also Recommend

Triple Pass Antenna-1x GPS/GNSS, 1x 4G/5G, 1x Wi-Fi 17 FT Cable, TNC, Direct Mount | RBDM-G5W-17-TTT-B
In Stock
RBDM-G5W-17-TTT-B
Triple Pass Antenna-1x GPS/GNSS, 1x 4G/5G, 1x Wi-Fi 17 FT Cable, TNC, Direct Mount | RBDM-G5W-17-TTT-B
View Details

Specifications

SKU RM2DG4W18TTTB
Manufacturer Part Number RM2D-G4W-18-TTT-B
Manufacturer RFMAX
Antenna Category Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency 1550~1610 MHz
Gain 30.5 dBi
Working Frequency 2 698-960 MHz
Gain 2 3.0 dBi
Working Frequency 3 1710-2700 MHz
Gain 3 6.0 dBi
Working Frequency 4 2.4 GHz
Gain 4 6.5 dBi
Working Frequency 5 4.9-6.0 GHz
Gain 5 4.2 dBi
Antenna Style "RM2" Multi-Element Antenna
Bands Multi
SISO or MIMO MIMO
Impedance 50 Ohms
Height/Length (inches) 2.06
Height/Length (mm) 52.32
Width (inches) 2.56
Width (mm) 65.02
Thickness/Diameter (inches) 4.84
Thickness/Diameter (mm) 122.92
Operating Temp (celsius) -40 to 65
Mount Style Direct
Color Black
Number of Cables 5
Cable Length (inches) 216

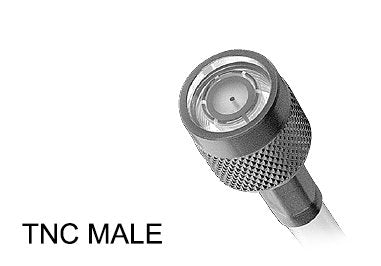

Connector 1 TNC-Male
Connector 2 TNC-Male
Connector 3 TNC-Male
IP Rating IP67
Vehicular Yes
Product Condition New
