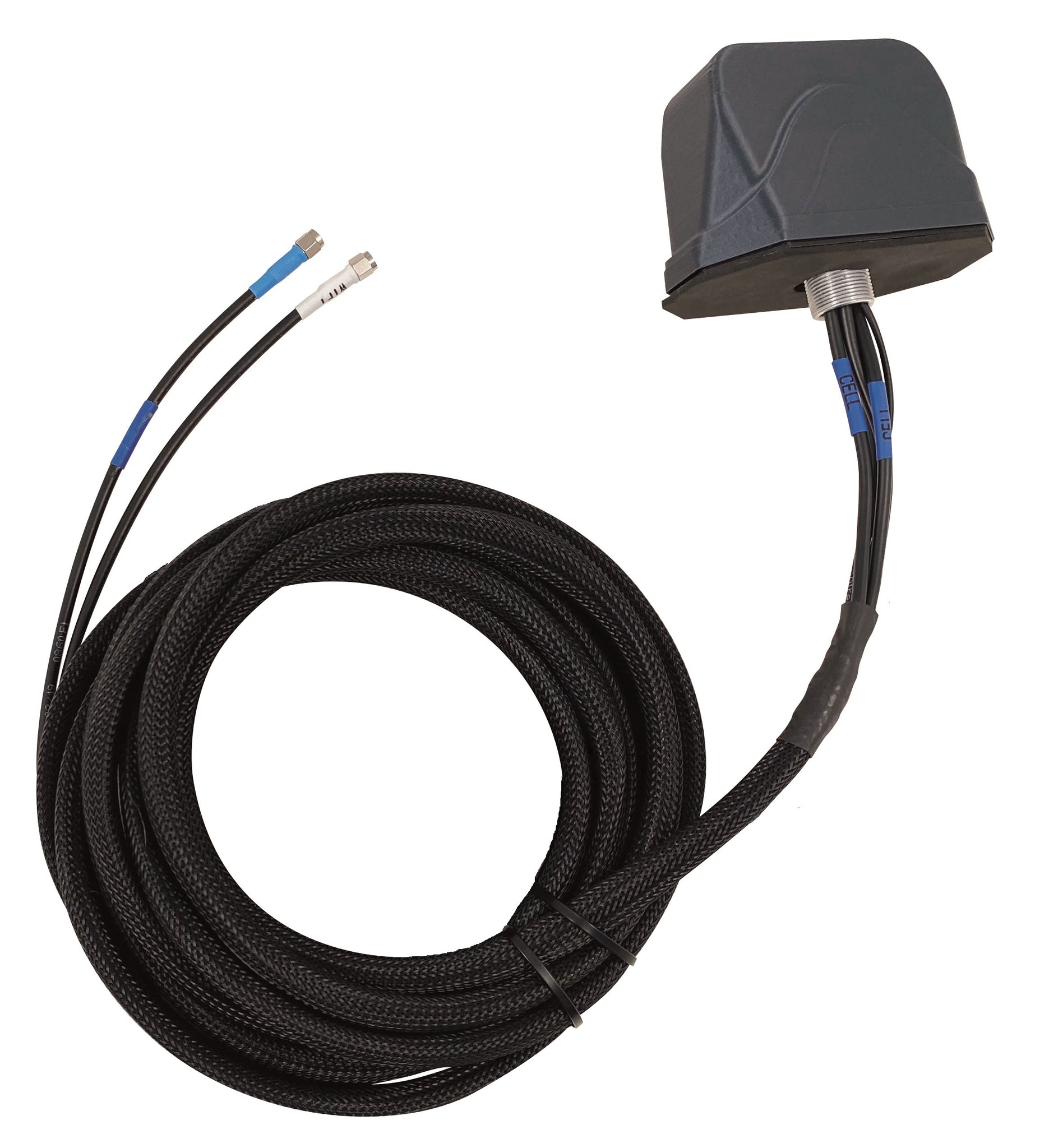

MIMO LTE, MIMO Wi-Fi, Vehicular Antenna Direct Mount with 2x TNC-Male Connectors | RM2D-4W-15-TT-B
More InfoDocumentsSpecifications ReviewsFeatures:
- 1 x Wideband Cellular/LTE Elements (MIMO)
- 1 x 2.4 & 4.9-6 GHz Wi-Fi Element (MIMO)
- Leading LTE performance while in coexistence with multiple other embedded antenna technologies
- Lower profile and smaller footprint than competing solutions
- Must be mounted on metal
- Direct Mount
Compatible with Dell Latitude 7212.
More Information
Features:
- 1 x Wideband Cellular/LTE Elements (MIMO)
- 1 x 2.4 & 4.9-6 GHz Wi-Fi Element (MIMO)
- Leading LTE performance while in coexistence with multiple other embedded antenna technologies
- Lower profile and smaller footprint than competing solutions
- Must be mounted on metal
- Direct Mount
Compatible with Dell Latitude 7212.
Documents
Specifications
| SKU | RM2D4W15TTB |
|---|---|
| Manufacturer Part Number | RM2D-4W-15-TT-B |
| Manufacturer | RFMAX |
| Antenna Category | Multi-Band (Cellular, WiFi, and/or GPS) |
| Working Frequency | 1550~1610 MHz |
| Gain | 30.5 dBi |
| Working Frequency 2 | 698-960 MHz |
| Gain 2 | 3.0 dBi |
| Working Frequency 3 | 1710-2700 MHz |
| Gain 3 | 6.0 dBi |
| Working Frequency 4 | 2.4 GHz |
| Gain 4 | 6.5 dBi |
| Working Frequency 5 | 4.9-6.0 GHz |
| Gain 5 | 4.2 dBi |
| Antenna Style | "RM2" Multi-Element Antenna |
| Bands | Multi |
| SISO or MIMO | MIMO |
| Impedance | 50 Ohms |
| Height/Length (inches) | 3.18 |
| Height/Length (mm) | 81 |
| Width (inches) | 2.56 |
| Width (mm) | 65.02 |
| Thickness/Diameter (inches) | 4.84 |
| Thickness/Diameter (mm) | 122.92 |
| Operating Temp (celsius) | -40 to 65 |
| Mount Style | Direct |
| Color | Black |
| Number of Cables | 5 |
| Cable Length (inches) | 15 |
| Cable Length (mm) | 381 |

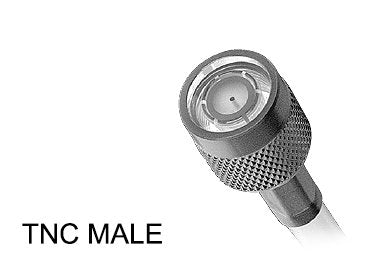

| Connector 1 | TNC-Male |
| Connector 2 | TNC-Male |
| IP Rating | IP67 |
| Vehicular | Yes |
| Product Condition | New |
